Model # HRE21282T Official Maytag electric water heater

Here are the diagrams and repair parts for Official Maytag HRE21282T electric water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |

Washer, Drai 66001021
#6

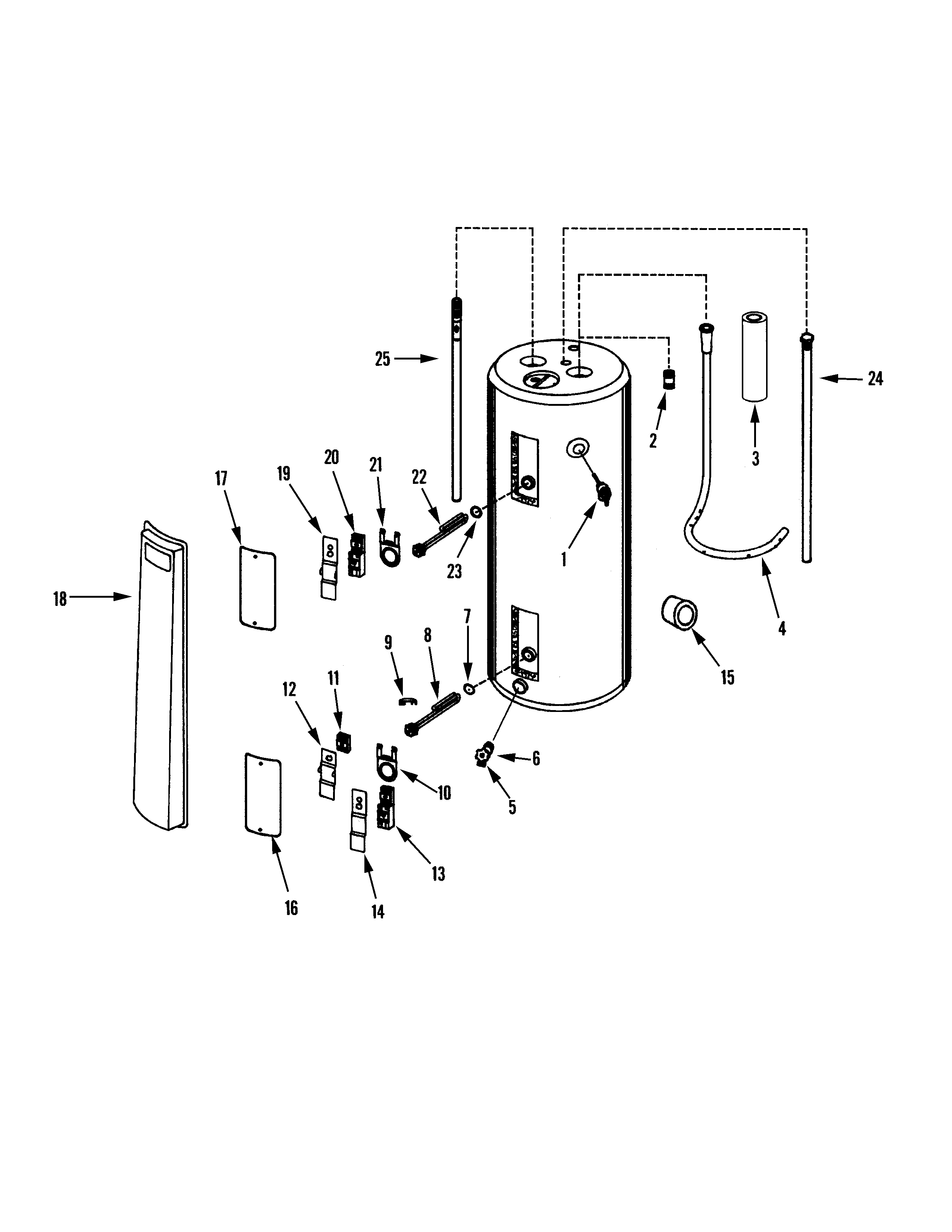

Body diagram

Washer, drai

Part #66001021

The manufacturer no longer makes this part, and there's no substitute part

Valve, Drain (3" Amodel) 66001747
#5

Body diagram

Valve, drain (3" amodel)

Part #66001747

The manufacturer no longer makes this part, and there's no substitute part

Panel 66001061
#18

Body diagram

Panel

Part #66001061

The manufacturer no longer makes this part, and there's no substitute part

Elem Htg 550 66001107
#8A

Body diagram

Elem htg 550

Part #66001107

The manufacturer no longer makes this part, and there's no substitute part

Anode Rod 66001746
#24

Body diagram

Anode rod

Part #66001746

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 66001056
Terminal cover

Part #66001056

The manufacturer no longer makes this part, and there's no substitute part

Bracket, The 66001054
Bracket, the

Part #66001054

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 66001064
#14

Body diagram

Terminal cover

Part #66001064

The manufacturer no longer makes this part, and there's no substitute part

Nipple (w/heat Trap) 66001739
#25

Body diagram

Nipple (w/heat trap)

Part #66001739

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Manual 66001713
#26

Body diagram

Use and care manual

Part #66001713

The manufacturer no longer makes this part, and there's no substitute part
