Kenmore
Countertop Microwave

Model # 72162299200 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72162299200 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

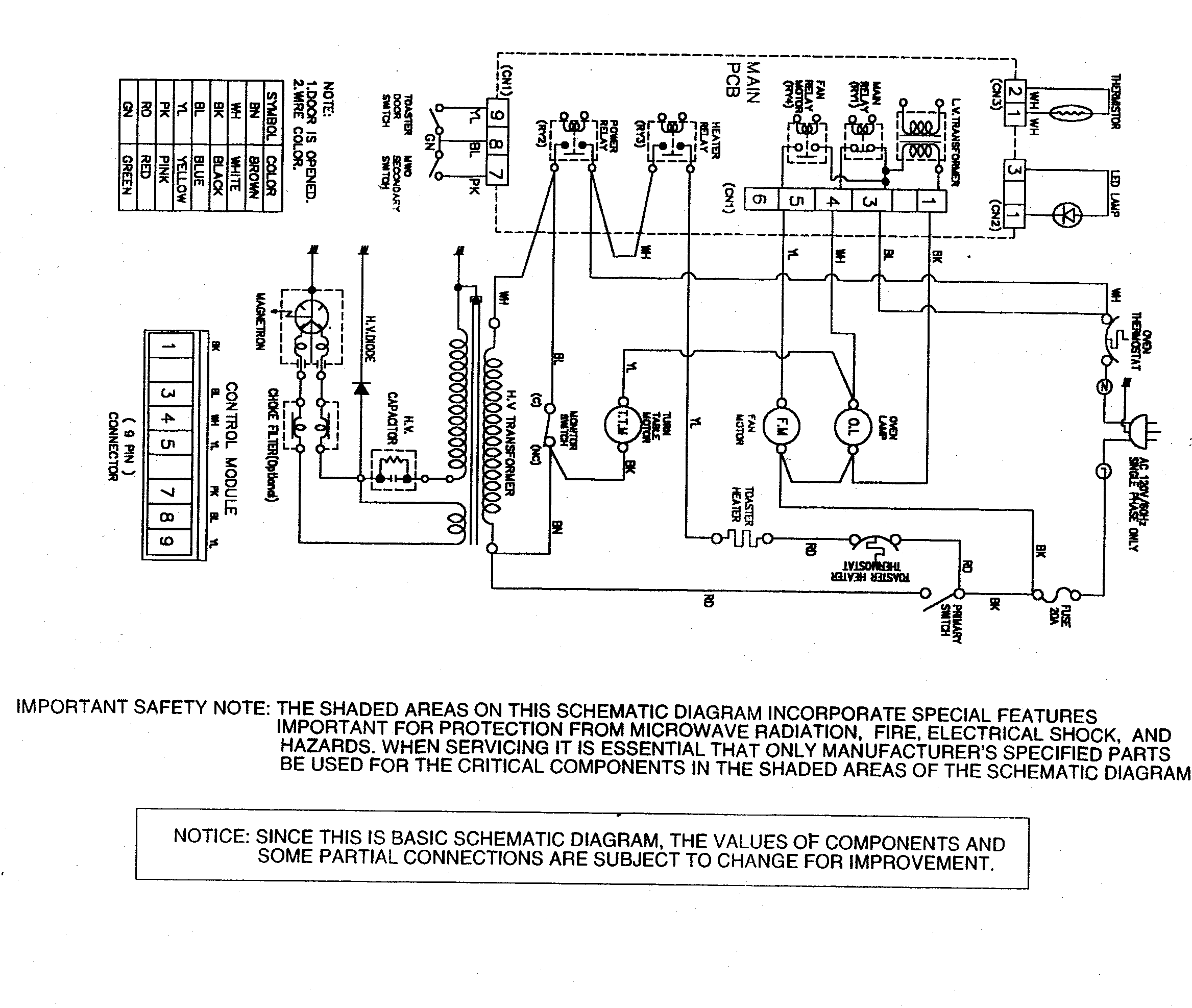

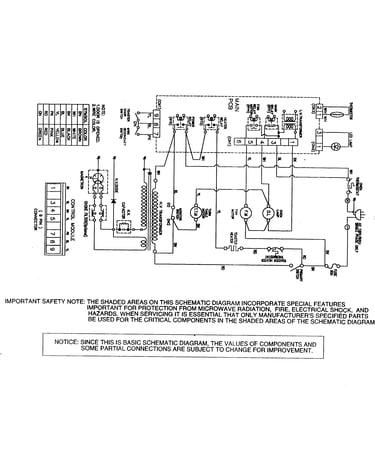

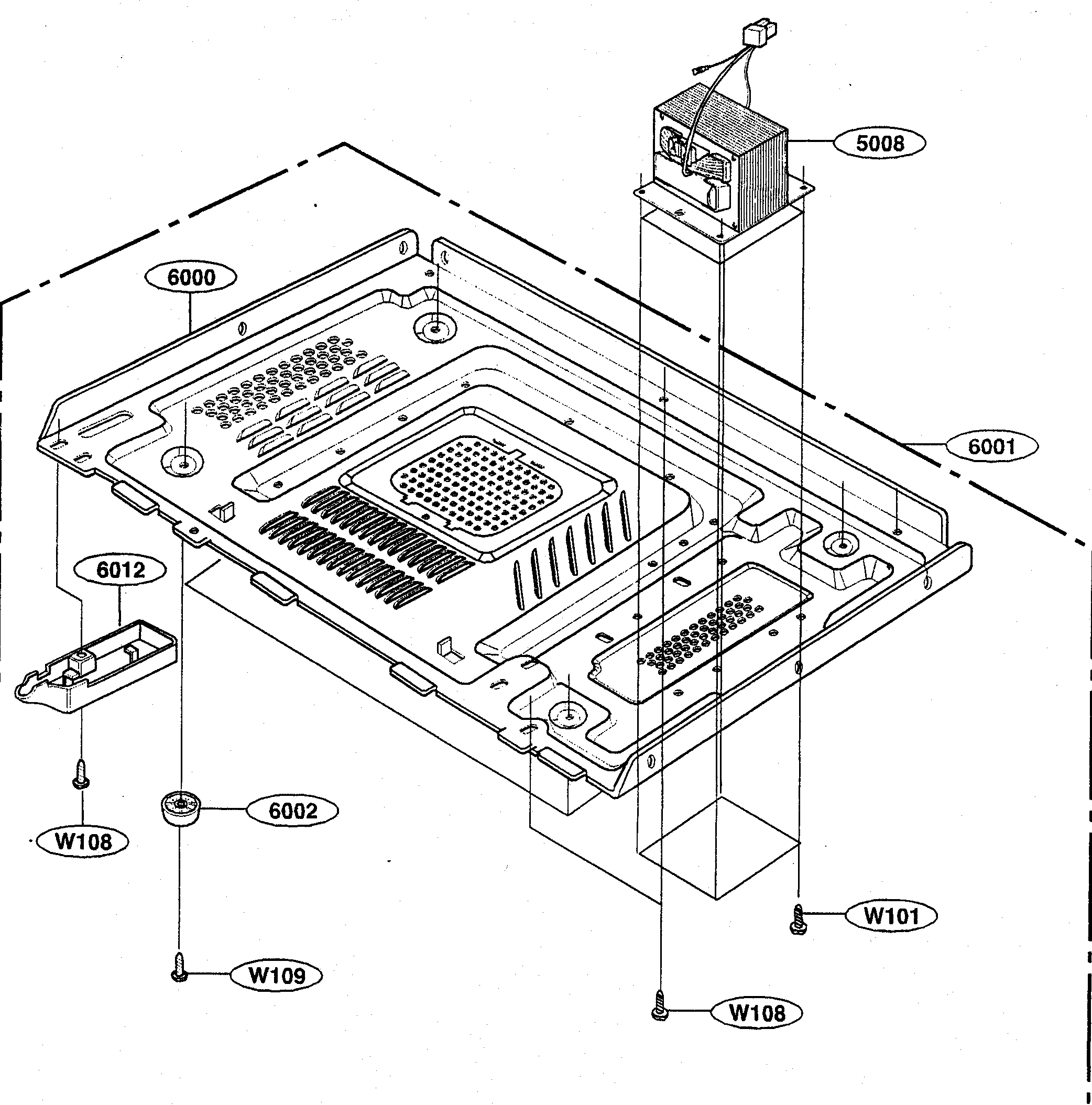

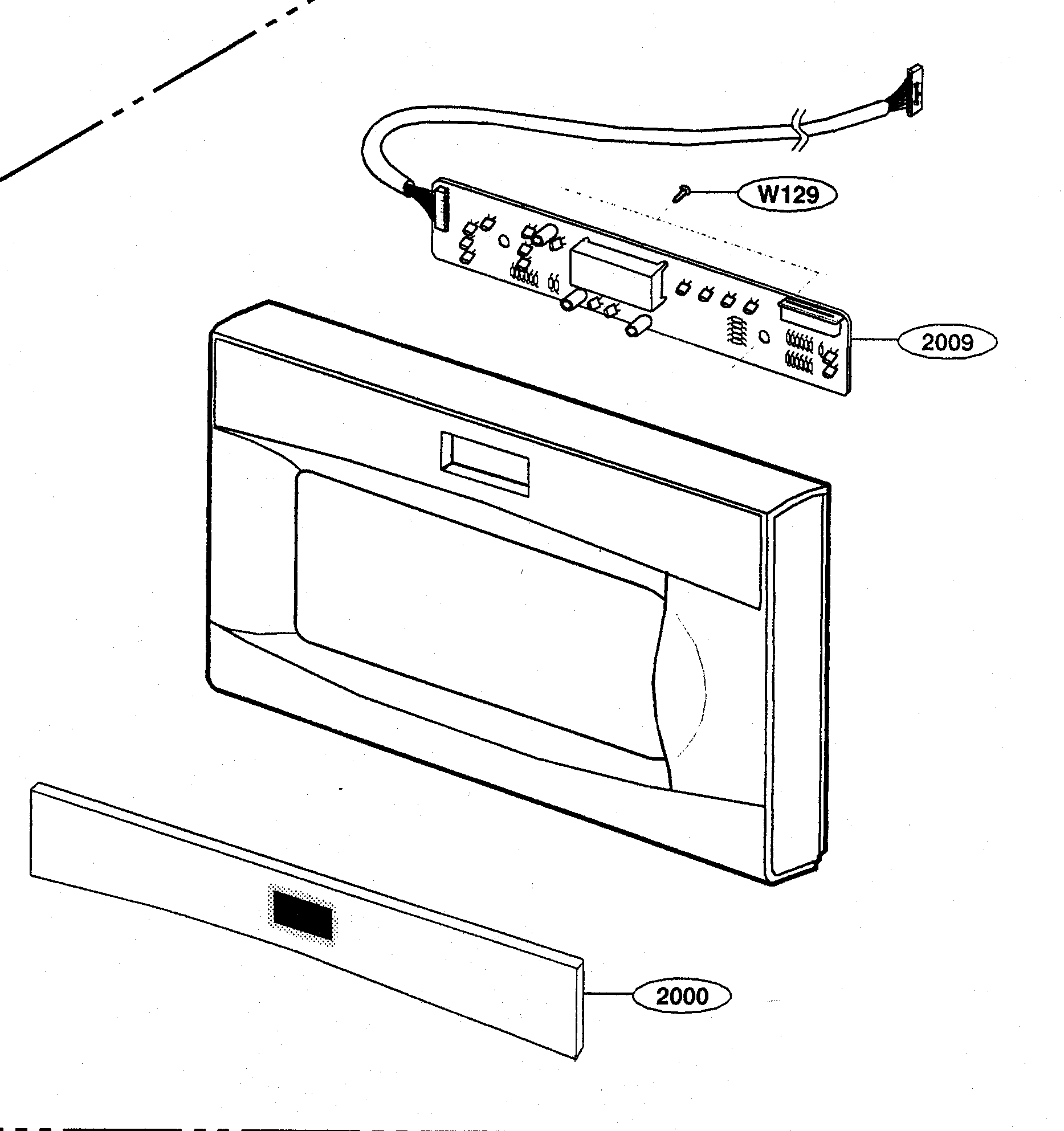

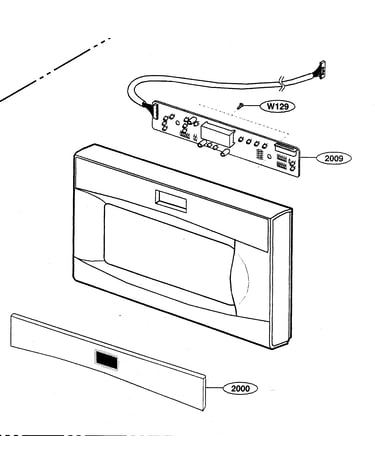

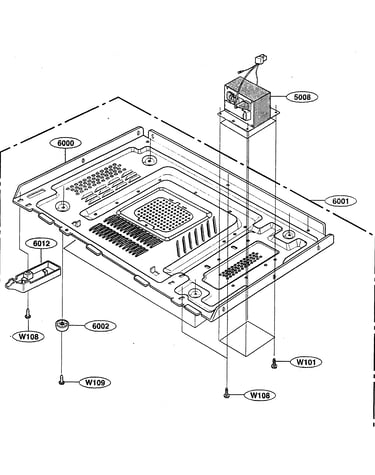

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Microwave Door Latch Hook 4026W2A015A
#1006

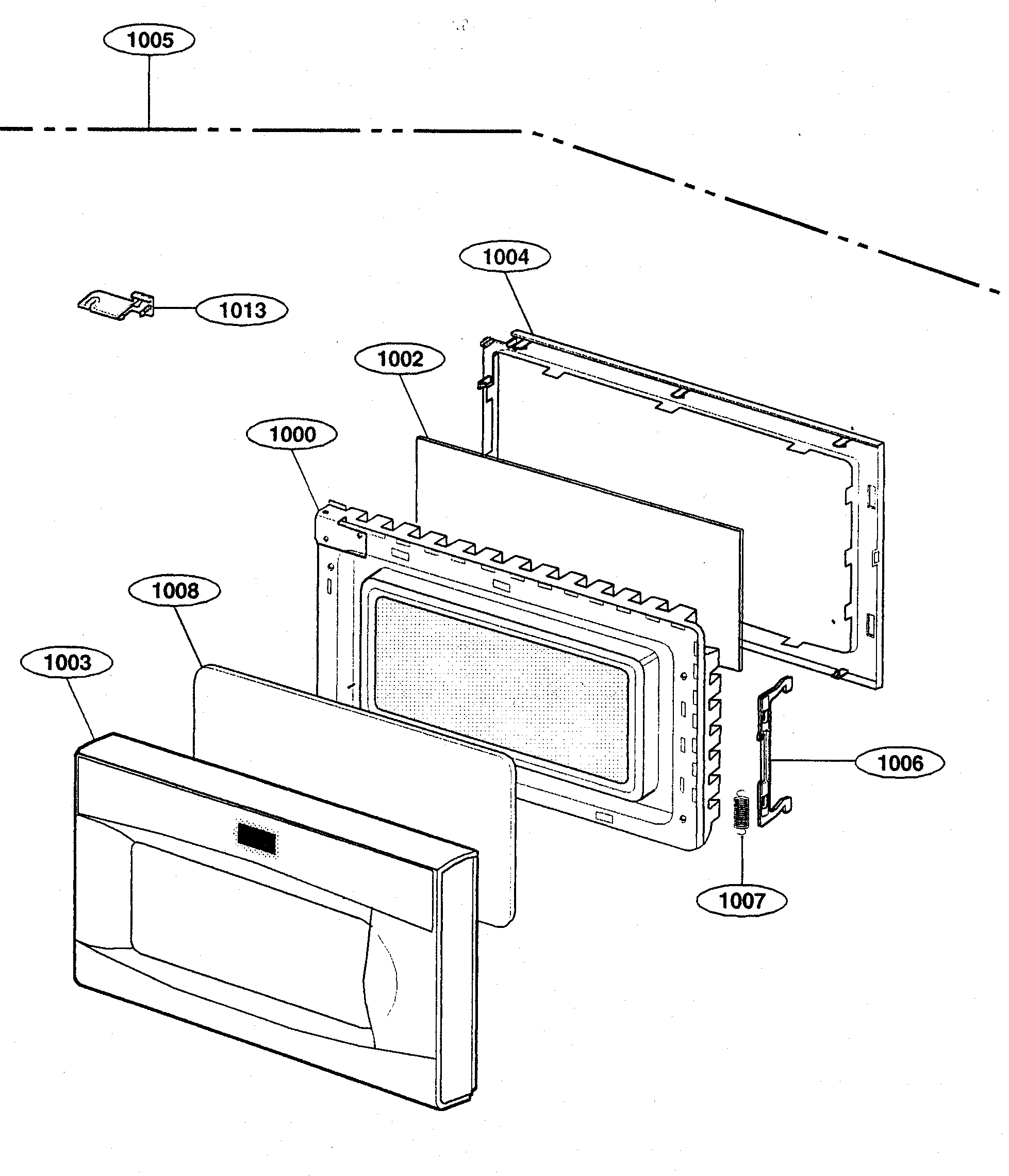

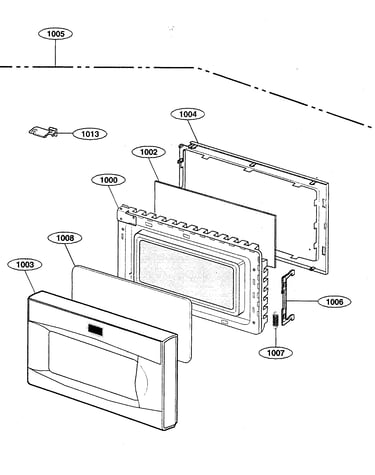

Door diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Lamp 6912W3B002G
#5015

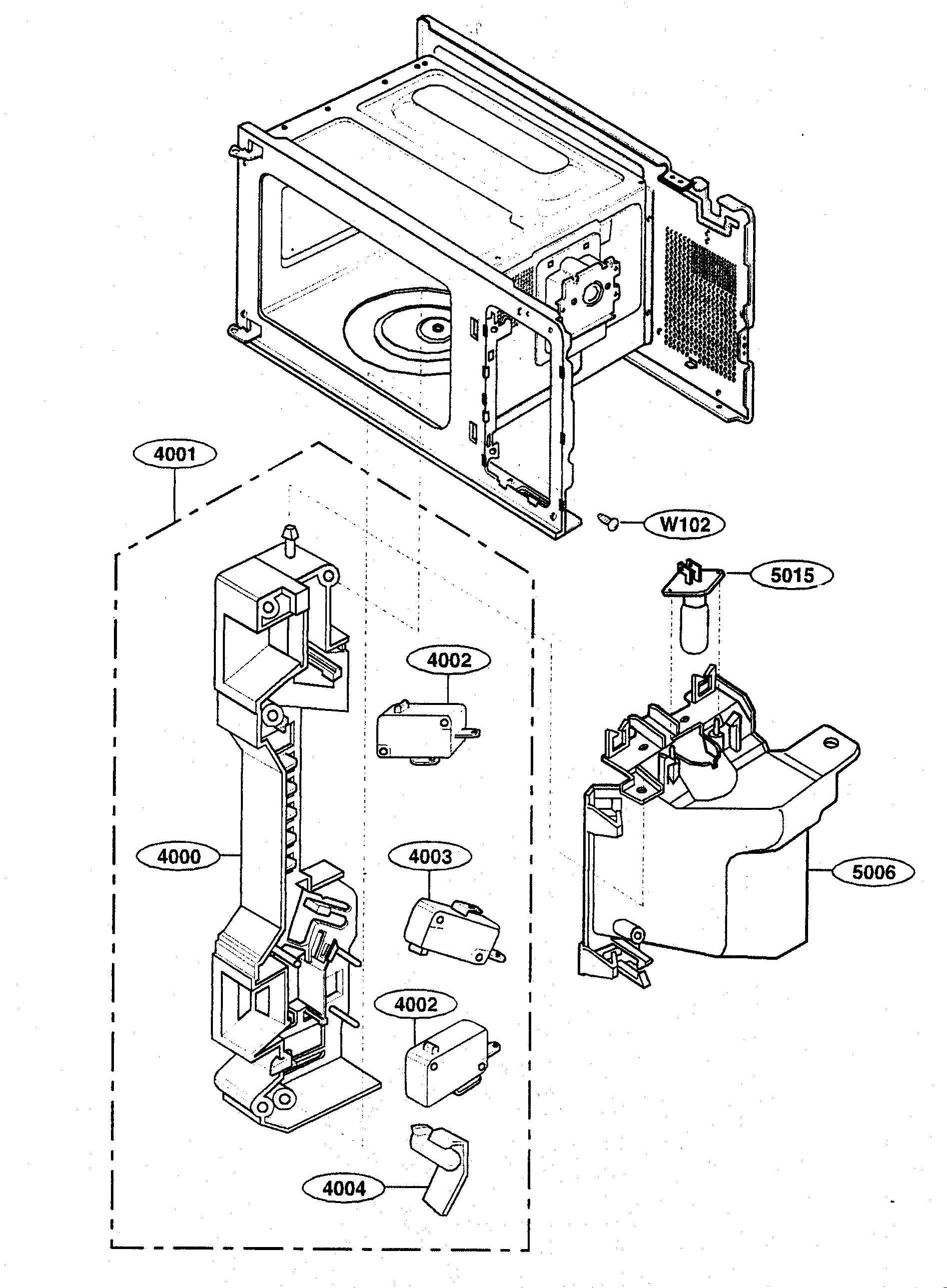

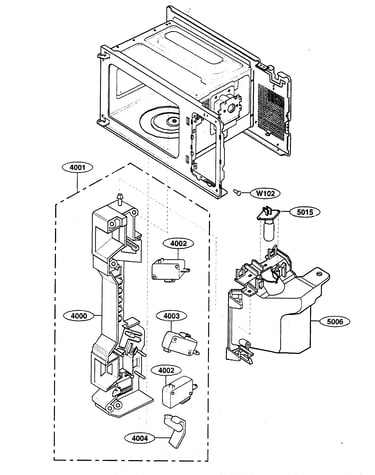

Latch board diagram

Lamp

Part #6912W3B002G

Replaced by #6912W3B002L

?
Manufacturer substitution
This part replaces 6912W3B002G. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Latch 3500W1A005A
#4000

Latch board diagram

Latch

Part #3500W1A005A

Replaced by #3500W1A013R

?
Manufacturer substitution
This part replaces 3500W1A005A. Substitute parts can look different from the original.
This item is not returnable
$15.38 |
12% OFF Phone Price : $17.38
Back Order
Us Pressed Steel Microwave Door Latch Lever 4510W4A005A
#4004

Latch board diagram

Us pressed steel microwave door latch lever

Part #4510W4A005A

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Turntable Motor 2B72754E
#3009

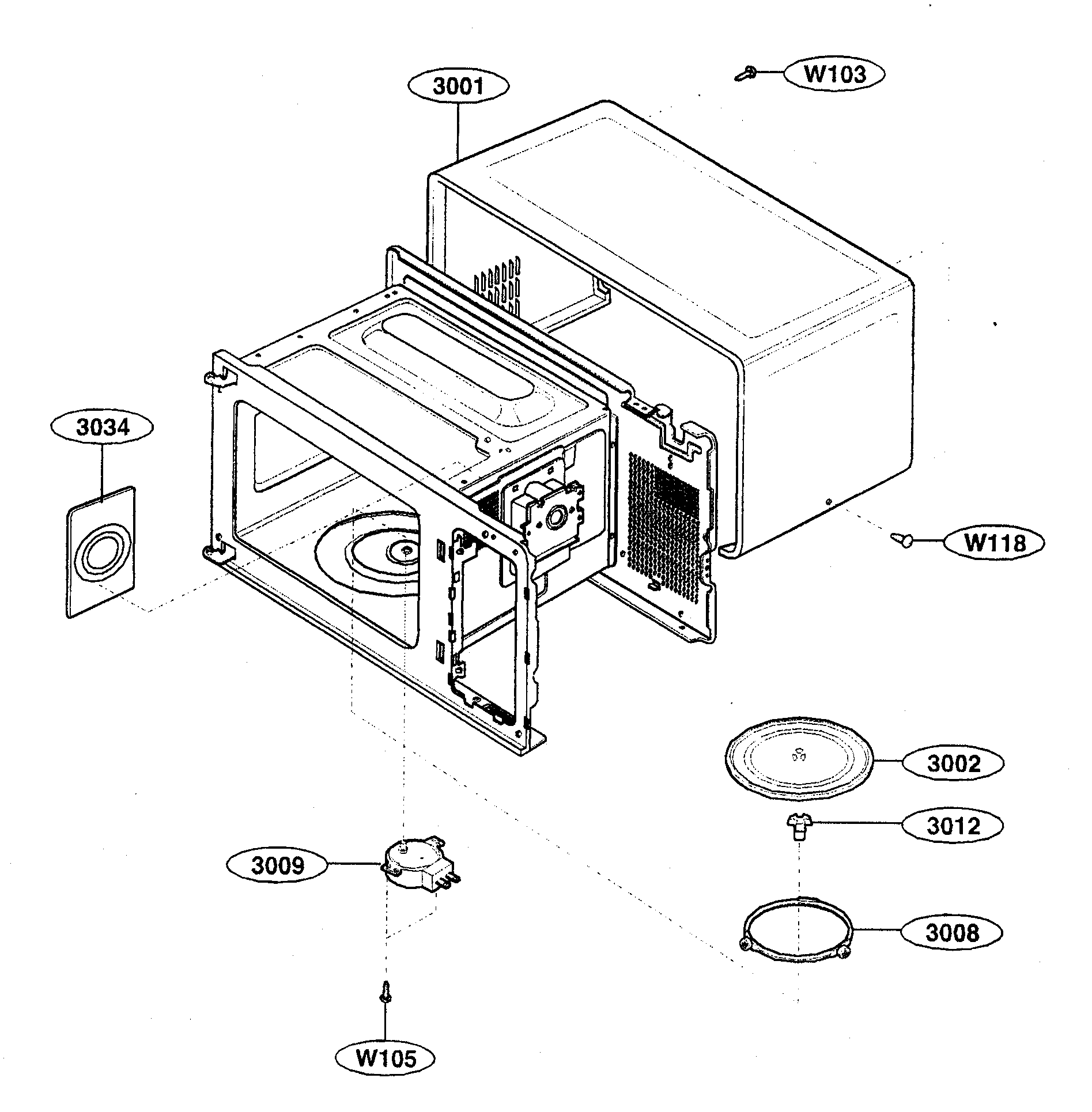

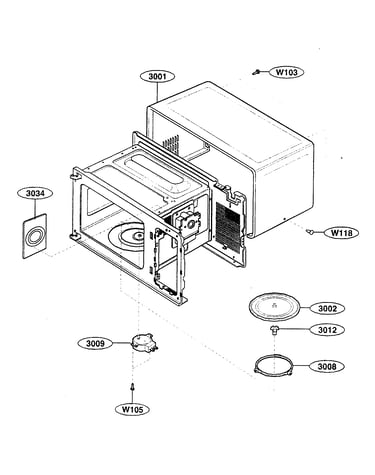

Oven cavity diagram

Microwave turntable motor

Part #2B72754E

Replaced by #6549W1S013A

?
Manufacturer substitution
This part replaces 2B72754E. Substitute parts can look different from the original.
$29.52 |
17% OFF Phone Price : $35.52
In Stock
Magnetron 2B71732B
#5009

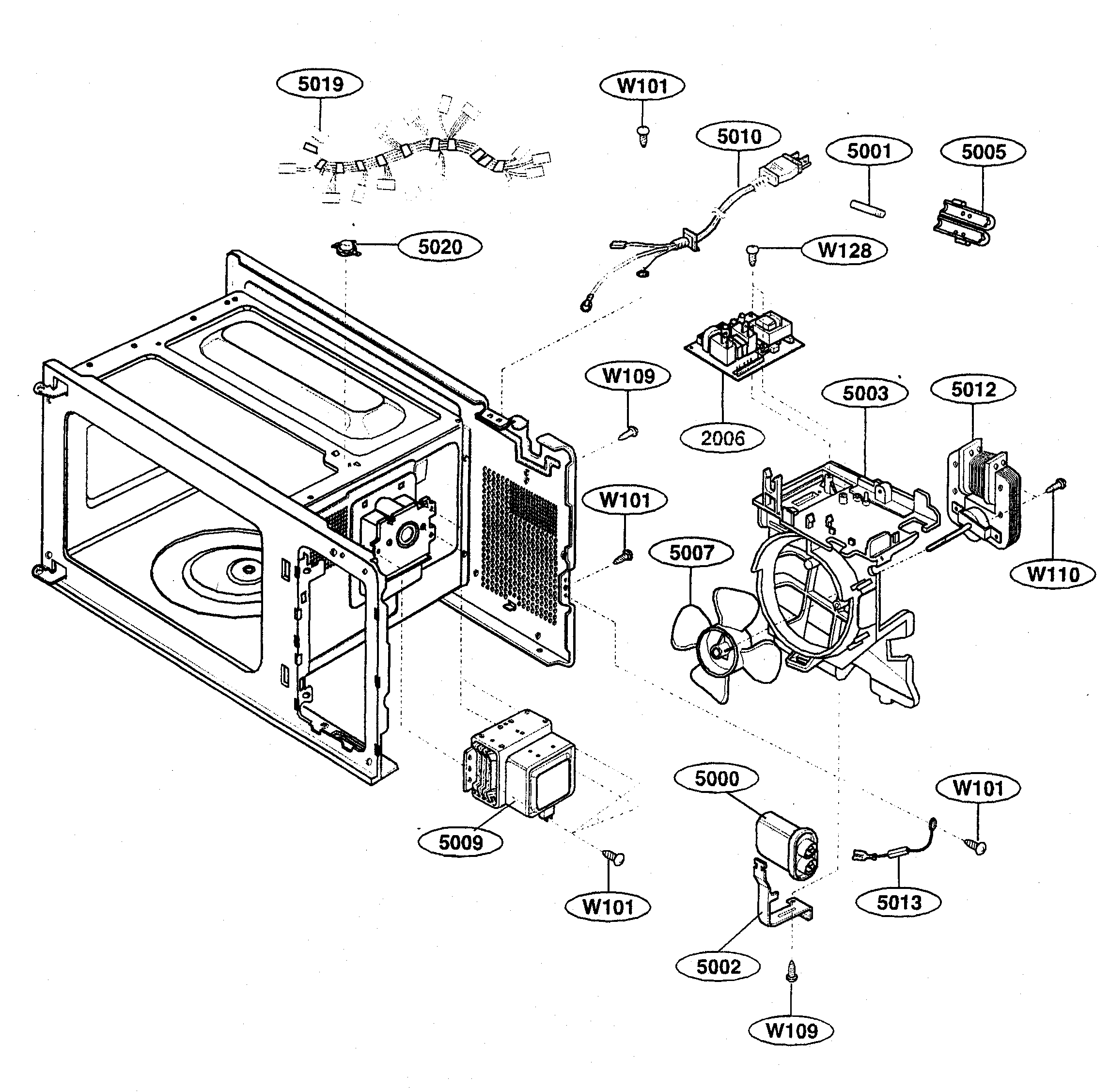

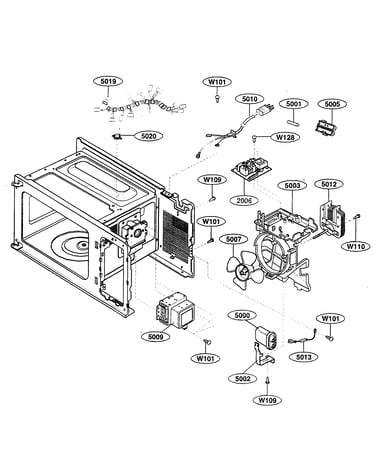

Oven interior diagram

Magnetron

Part #2B71732B

The manufacturer no longer makes this part, and there's no substitute part

Lever 4510W1A007A
#7028

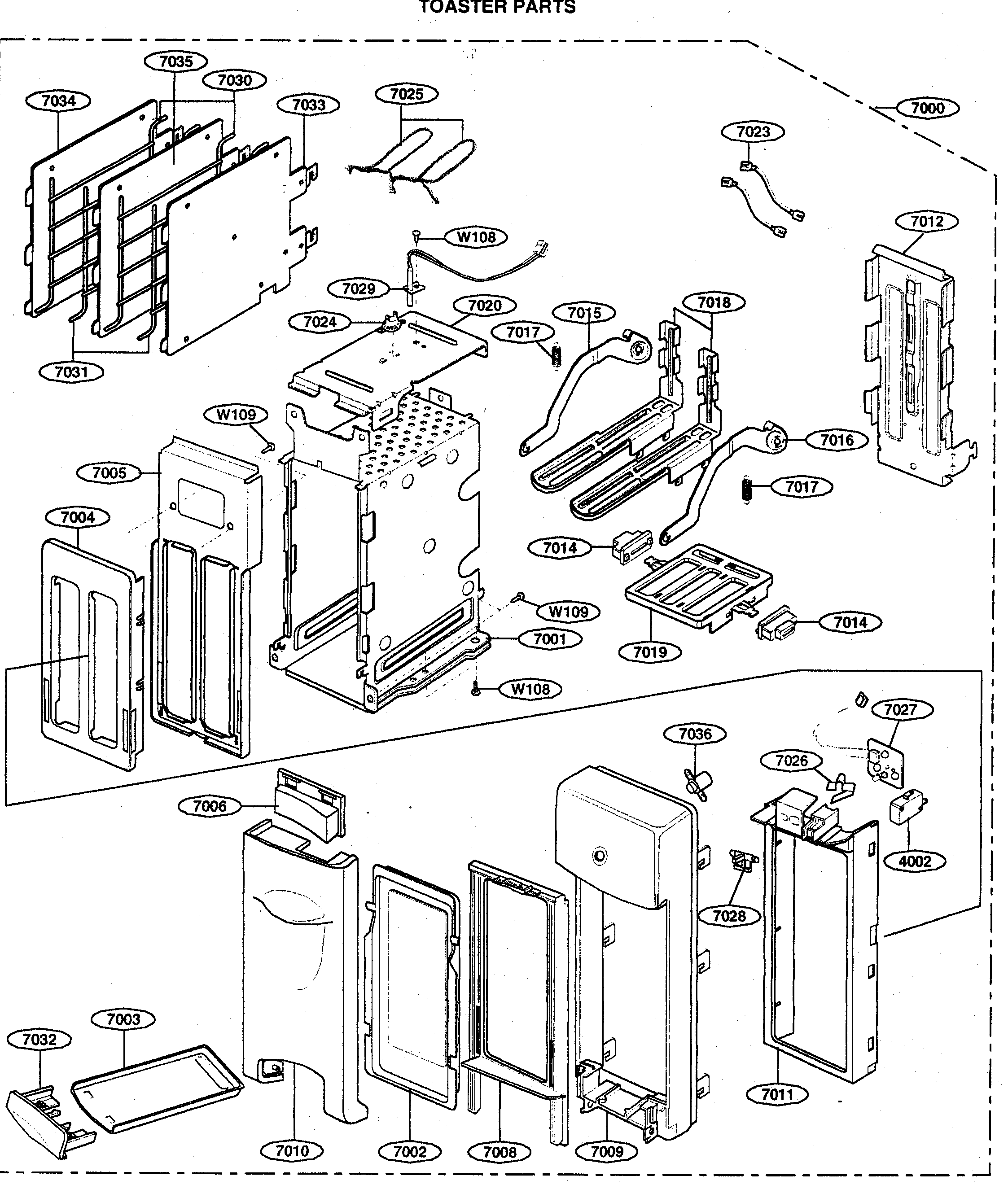

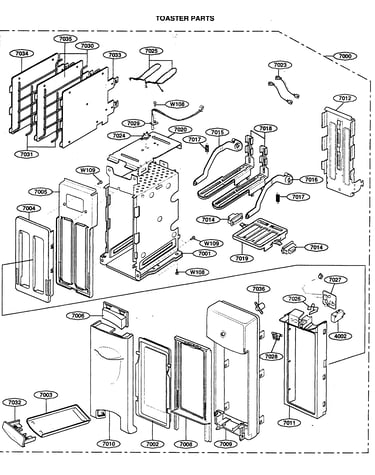

Toaster diagram

Lever

Part #4510W1A007A

$8.29
In Stock
Harness 6877W1A424B
#7023

Toaster diagram

Harness

Part #6877W1A424B

$8.29
In Stock
Spring 4970W1A008B
#7017

Toaster diagram

Spring

Part #4970W1A008B

$8.29
In Stock
Harness 6877W1A424A
#5019

Oven interior diagram

Harness

Part #6877W1A424A

$26.66
In Stock
