Model # D106-04 TYPE 2 Official DeWalt 3/8" vsr drill

Here are the diagrams and repair parts for Official DeWalt D106-04-TYPE-2 3/8" vsr drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Power Tool Power Cord Strain Relief 330005-01
#18

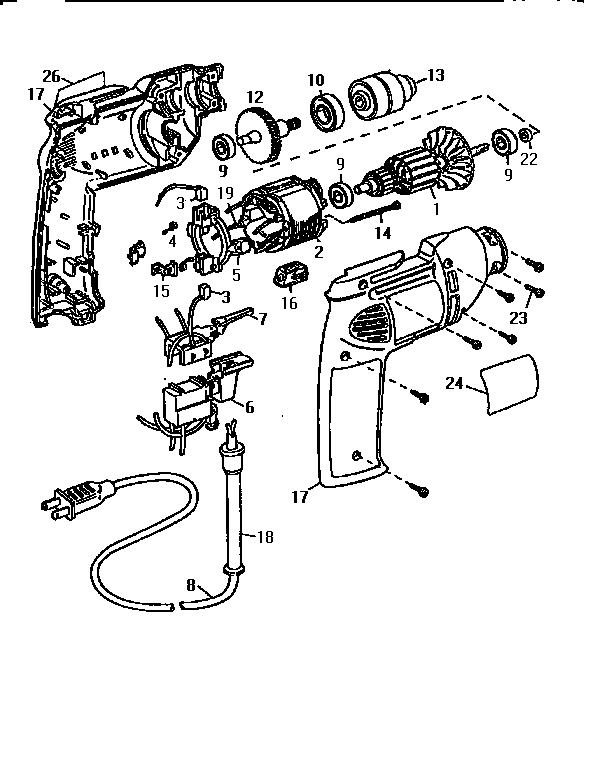

Unit parts diagram

Power tool power cord strain relief

Part #330005-01

The manufacturer no longer makes this part, and there's no substitute part

Nut 146636-00
#15

Unit parts diagram

Nut

Part #146636-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord 330072-98
#8

Unit parts diagram

Power tool power cord

Part #330072-98

The manufacturer no longer makes this part, and there's no substitute part

Housing 464297-01
#17

Unit parts diagram

Housing

Part #464297-01

The manufacturer no longer makes this part, and there's no substitute part

Armature 464294-00
#1

Unit parts diagram

Armature

Part #464294-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Deflector 464292-00
#22

Unit parts diagram

Black & decker deflector

Part #464292-00

The manufacturer no longer makes this part, and there's no substitute part

Sears Drill Motor Brush Spring 445860-00
#4

Unit parts diagram

Sears drill motor brush spring

Part #445860-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Terminal 448387-00
#19

Unit parts diagram

Black & decker terminal

Part #448387-00

The manufacturer no longer makes this part, and there's no substitute part

Label 149474-00
#26

Unit parts diagram

Label

Part #149474-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Level 143845-00
#16

Unit parts diagram

Drill level

Part #143845-00

The manufacturer no longer makes this part, and there's no substitute part
