Model # H3CE240A58 Official York central air conditioner

Here are the diagrams and repair parts for Official York H3CE240A58 central air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

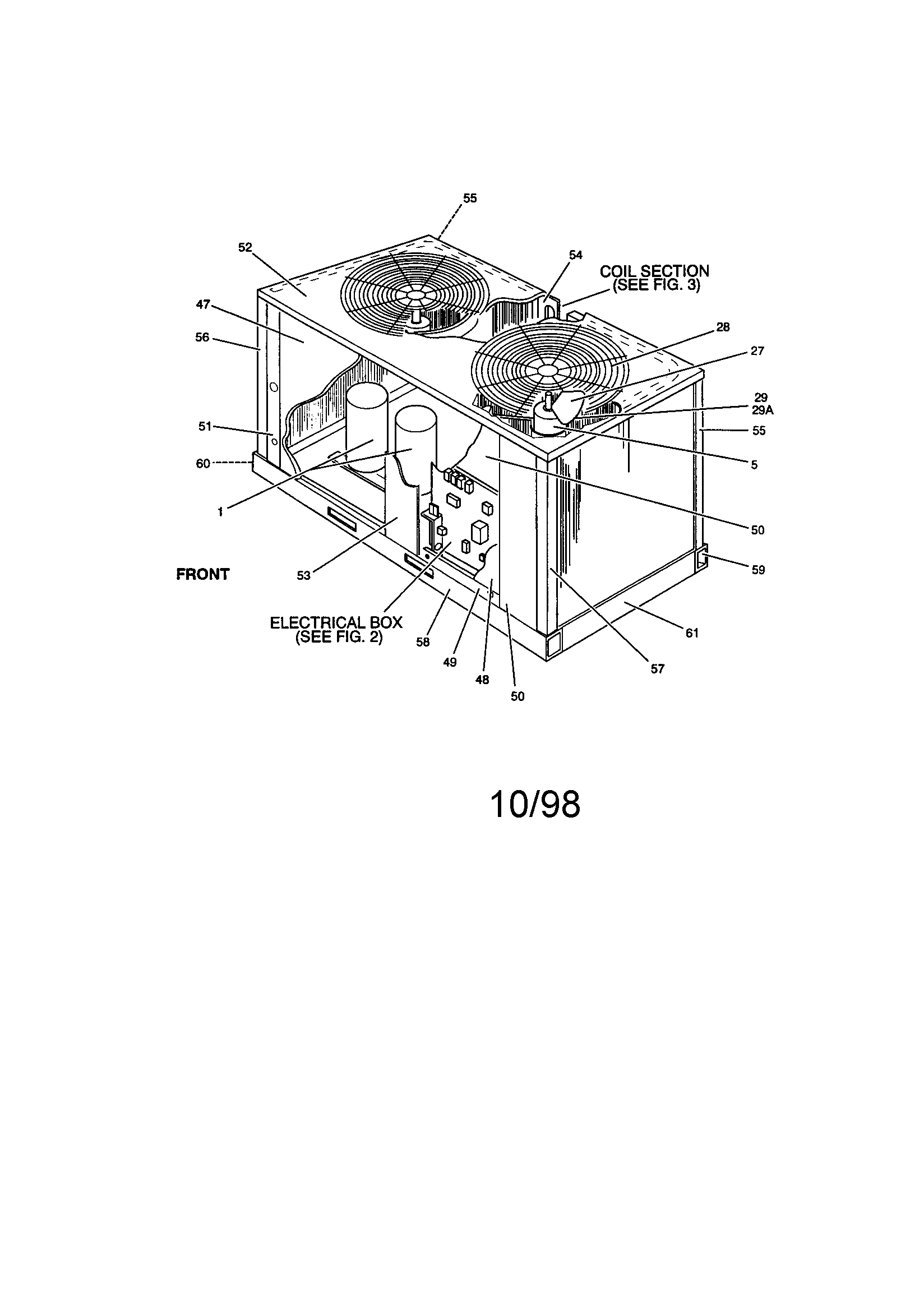

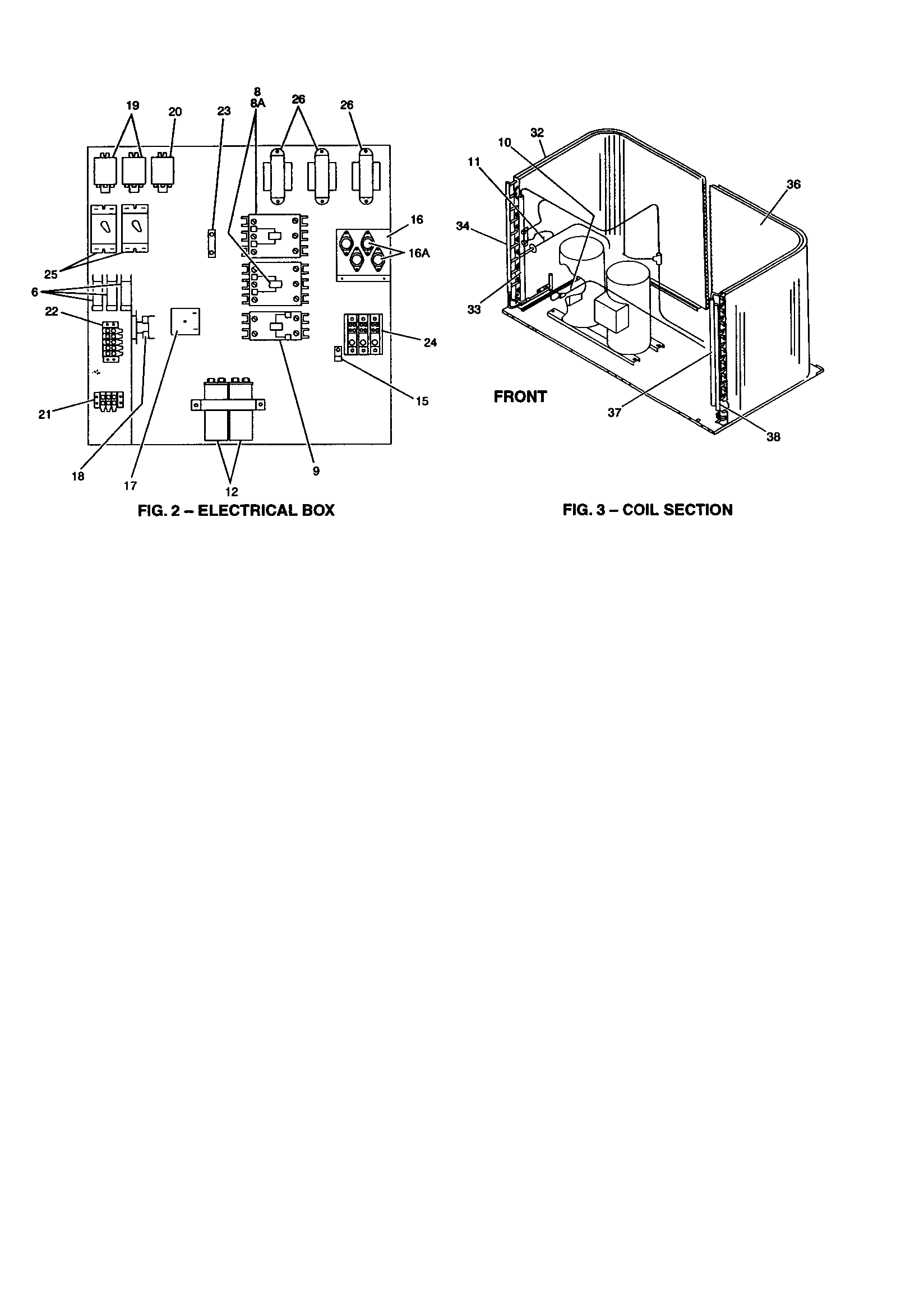

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Timer 025-19945-001

#25

All parts diagram

Timer

Part #025-19945-001

The manufacturer no longer makes this part, and there's no substitute part

Post, Corner (l/h Front) 073-19463-000

#56

All parts diagram

Post, corner (l/h front)

Part #073-19463-000

The manufacturer no longer makes this part, and there's no substitute part

Belly Band Motor Mount 026-34756-000

#29

All parts diagram

Belly band motor mount

Part #026-34756-000

The manufacturer no longer makes this part, and there's no substitute part

Post, Corner (r/h Front) 073-19464-000

#57

All parts diagram

Post, corner (r/h front)

Part #073-19464-000

The manufacturer no longer makes this part, and there's no substitute part

Control Pressure 025-17620-020

#11

All parts diagram

Control pressure

Part #025-17620-020

The manufacturer no longer makes this part, and there's no substitute part

Control, Pressure 025-32785-000

#10

All parts diagram

Control, pressure

Part #025-32785-000

The manufacturer no longer makes this part, and there's no substitute part

Contactor Aux Switch 024-25919-000

#8A

All parts diagram

Contactor aux switch

Part #024-25919-000

The manufacturer no longer makes this part, and there's no substitute part

Relay 024-24103-000

#19

All parts diagram

Relay

Part #024-24103-000

The manufacturer no longer makes this part, and there's no substitute part

Relay 024-25332-000

#17

All parts diagram

Relay

Part #024-25332-000

The manufacturer no longer makes this part, and there's no substitute part

Header, Discharge 373-19494-060

#38

All parts diagram

Header, discharge

Part #373-19494-060

The manufacturer no longer makes this part, and there's no substitute part
