Model # 917640A22 Official Craftsman hydro-gear assembly

Here are the diagrams and repair parts for Official Craftsman 917640A22 hydro-gear assembly, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |

Lip Seal 1653R
#72

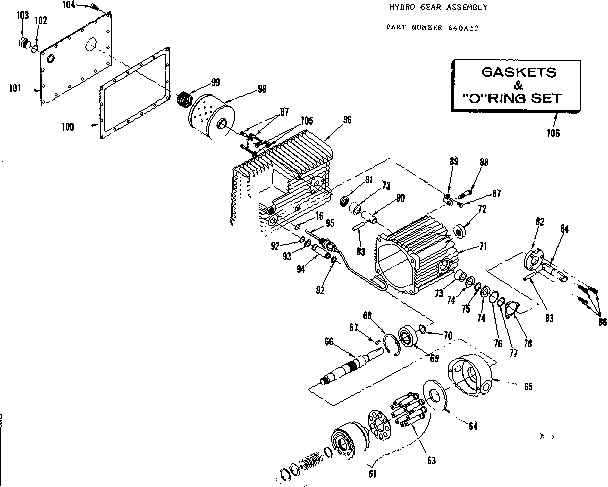

Cylinder assembly diagram

Lip seal

Part #1653R

The manufacturer no longer makes this part, and there's no substitute part

Pin 1610R
#13

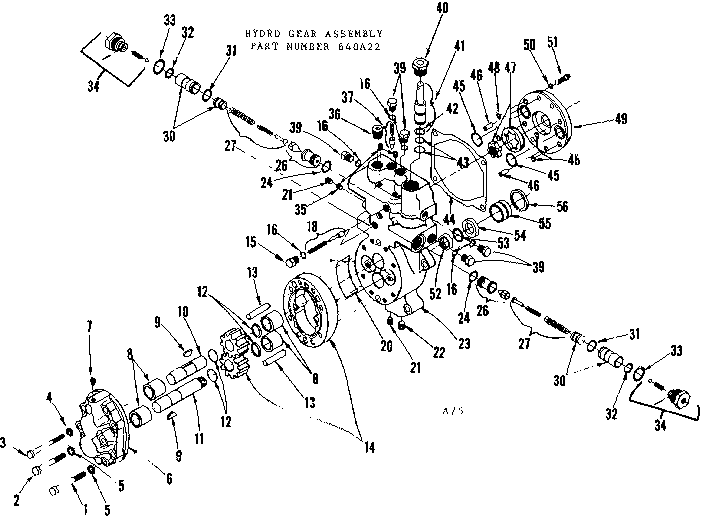

Hydro gear assembly diagram

Pin

Part #1610R

The manufacturer no longer makes this part, and there's no substitute part

Spring Pin 1659R
#83

Cylinder assembly diagram

Spring pin

Part #1659R

The manufacturer no longer makes this part, and there's no substitute part

Pump Gasket 1633R
#44

Hydro gear assembly diagram

Pump gasket

Part #1633R

The manufacturer no longer makes this part, and there's no substitute part

Self Tap Screw 9343H
#104

Cylinder assembly diagram

Self tap screw

Part #9343H

The manufacturer no longer makes this part, and there's no substitute part

Seat Assembly 1620R
#27

Hydro gear assembly diagram

Seat assembly

Part #1620R

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 1614R
#20

Hydro gear assembly diagram

Nameplate

Part #1614R

The manufacturer no longer makes this part, and there's no substitute part

Insert 1640R
#52

Hydro gear assembly diagram

Insert

Part #1640R

The manufacturer no longer makes this part, and there's no substitute part

O-ring 1618R
#24

Hydro gear assembly diagram

O-ring

Part #1618R

The manufacturer no longer makes this part, and there's no substitute part

Driveshaft 1647R
#66

Cylinder assembly diagram

Driveshaft

Part #1647R

The manufacturer no longer makes this part, and there's no substitute part
