Model # 831287160 Official Proform air express exercise bike

Here are the diagrams and repair parts for Official Proform 831287160 air express exercise bike, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

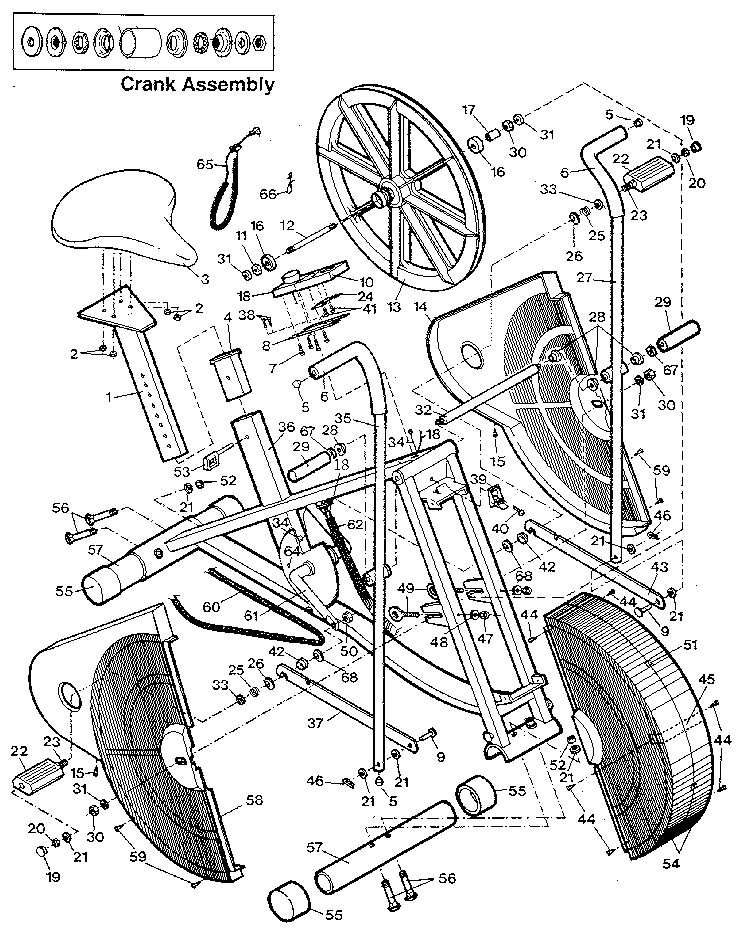

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |

Magnet,rnd,m 100498
#64

Unit parts diagram

Magnet,rnd,m

Part #100498

Replaced by #113842

?
Manufacturer substitution
This part replaces 100498. Substitute parts can look different from the original.
This item is not returnable
In Stock
Hairpin Cott 101109
#46

Unit parts diagram

Hairpin cott

Part #101109

Replaced by #015044

?
Manufacturer substitution
This part replaces 101109. Substitute parts can look different from the original.
This item is not returnable
In Stock
Clip,fan Grd 054035
#51

Unit parts diagram

Clip,fan grd

Part #054035

This item is not returnable
In Stock
Wshr,flat,sa 101494
#68

Unit parts diagram

Wshr,flat,sa

Part #101494

This item is not returnable
In Stock
Exercise Equipment Flat Washer 014041
Exercise equipment flat washer

Part #014041

This item is not returnable
In Stock
Brng,608z,se 018007
#16

Unit parts diagram

Brng,608z,se

Part #018007

In Stock
Nordictrack Exercise Equipment Nut 012002
#20

Unit parts diagram

Nordictrack exercise equipment nut

Part #012002

This item is not returnable
In Stock
Sdshld,rt,pf 100545
#58

Unit parts diagram

Sdshld,rt,pf

Part #100545

The manufacturer no longer makes this part, and there's no substitute part

Bshg,seat Tu 100321
#4

Unit parts diagram

Bshg,seat tu

Part #100321

The manufacturer no longer makes this part, and there's no substitute part

Battery Cove 033091

#NI

All parts diagram

Battery cove

Part #033091

The manufacturer no longer makes this part, and there's no substitute part
