Panasonic
Speaker

Model # SB-T200 Official Panasonic speaker system

Here are the diagrams and repair parts for Official Panasonic SB-T200 speaker system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |
Owner's Manual RQT4523-P
#NI

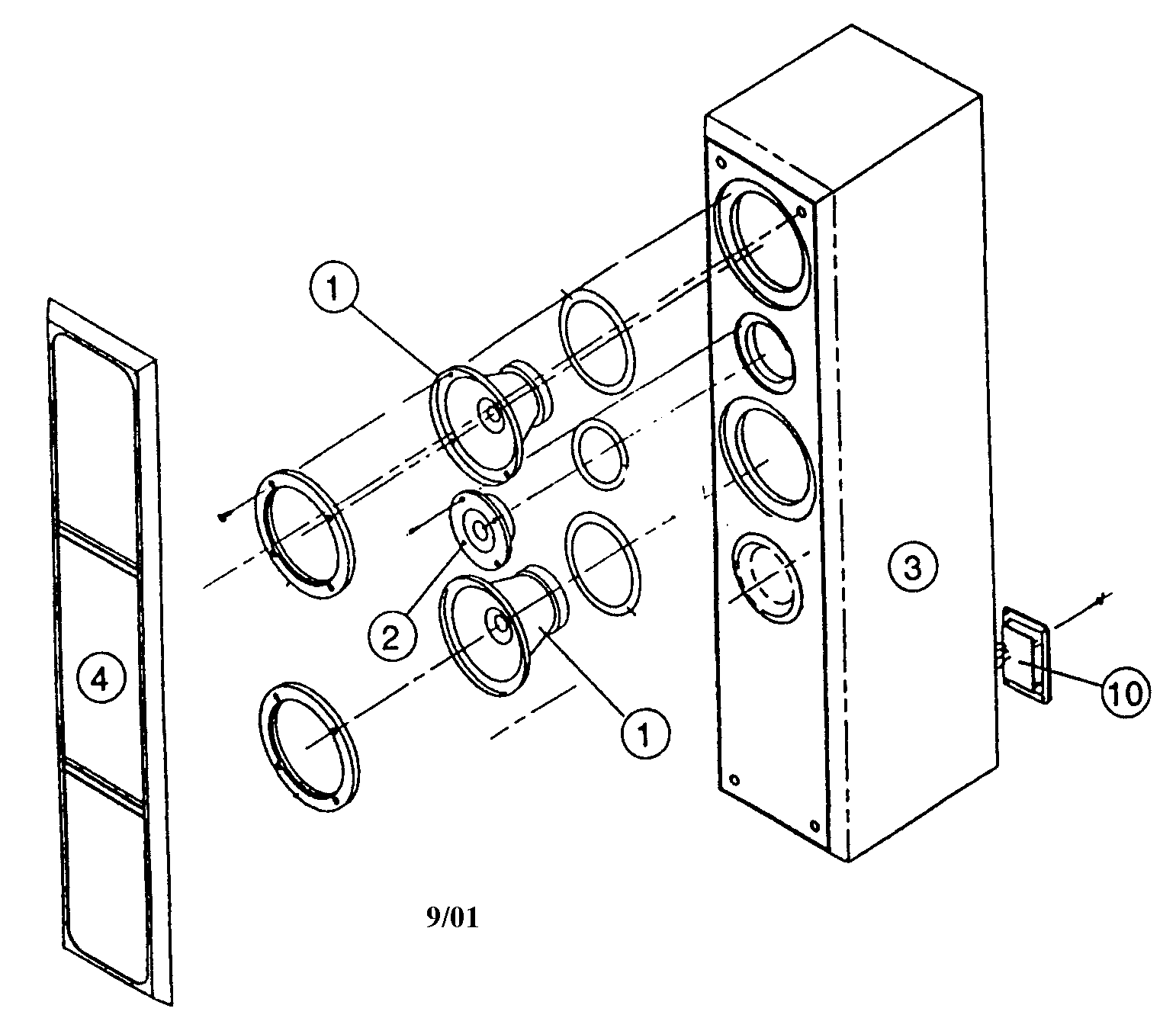

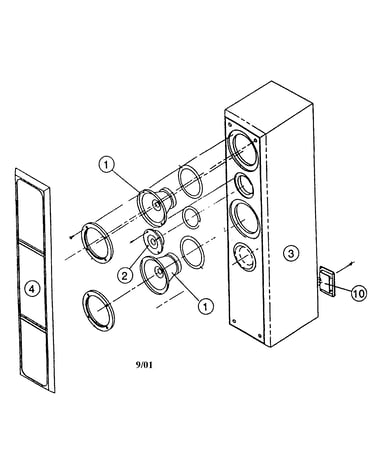

Cabinet parts diagram

Owner's manual

Part #RQT4523-P

The manufacturer no longer makes this part, and there's no substitute part

Woofer EAST14PL10A6
#1

Cabinet parts diagram

Woofer

Part #EAST14PL10A6

The manufacturer no longer makes this part, and there's no substitute part

Network REJ0129
#10

Cabinet parts diagram

Network

Part #REJ0129

The manufacturer no longer makes this part, and there's no substitute part

Net Frame D-SBT200PPK
#4

Cabinet parts diagram

Net frame

Part #D-SBT200PPK

The manufacturer no longer makes this part, and there's no substitute part

Tweeter EAST25KH03A6
#2

Cabinet parts diagram

Tweeter

Part #EAST25KH03A6

The manufacturer no longer makes this part, and there's no substitute part

Service Manual MEP9802210
#NI

Cabinet parts diagram

Service manual

Part #MEP9802210

The manufacturer no longer makes this part, and there's no substitute part

Cabinet RYK0831-K
#3

Cabinet parts diagram

Cabinet

Part #RYK0831-K

The manufacturer no longer makes this part, and there's no substitute part
