Model # ZR25MCA Official Canon digital video camera

Here are the diagrams and repair parts for Official Canon ZR25MCA digital video camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Jack Pcb DG1-4009-000
#7

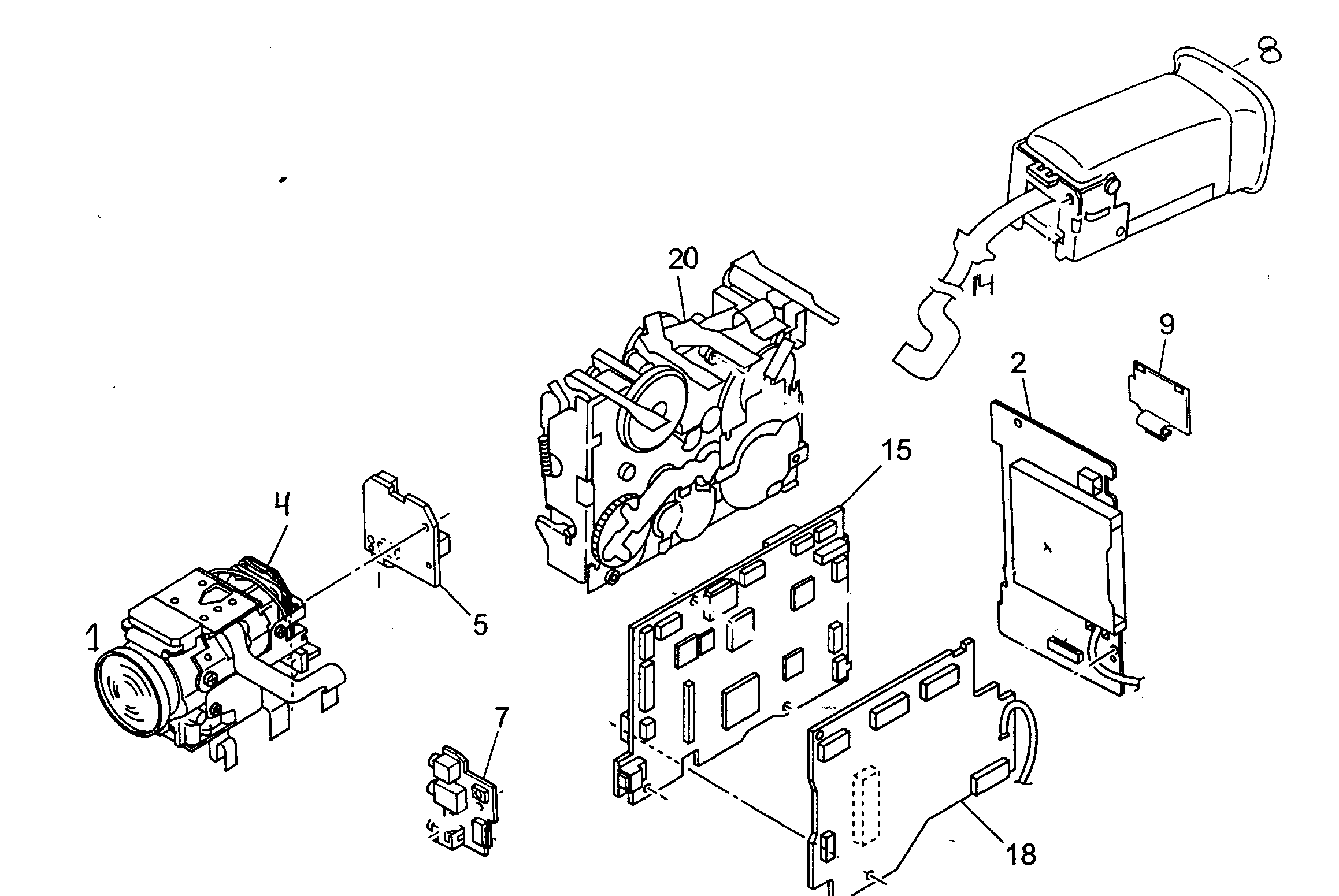

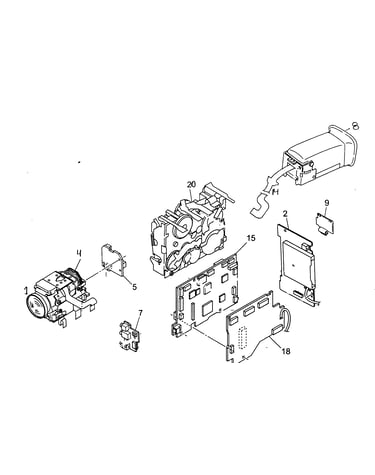

Back cabinet parts diagram

Jack pcb

Part #DG1-4009-000

The manufacturer no longer makes this part, and there's no substitute part

Cover DA2-0473-000
#9

Back cabinet parts diagram

Cover

Part #DA2-0473-000

The manufacturer no longer makes this part, and there's no substitute part

Fpc,evf Mn DH2-2102-000
#14

Back cabinet parts diagram

Fpc,evf mn

Part #DH2-2102-000

The manufacturer no longer makes this part, and there's no substitute part

Cover DA2-1086-000
#4

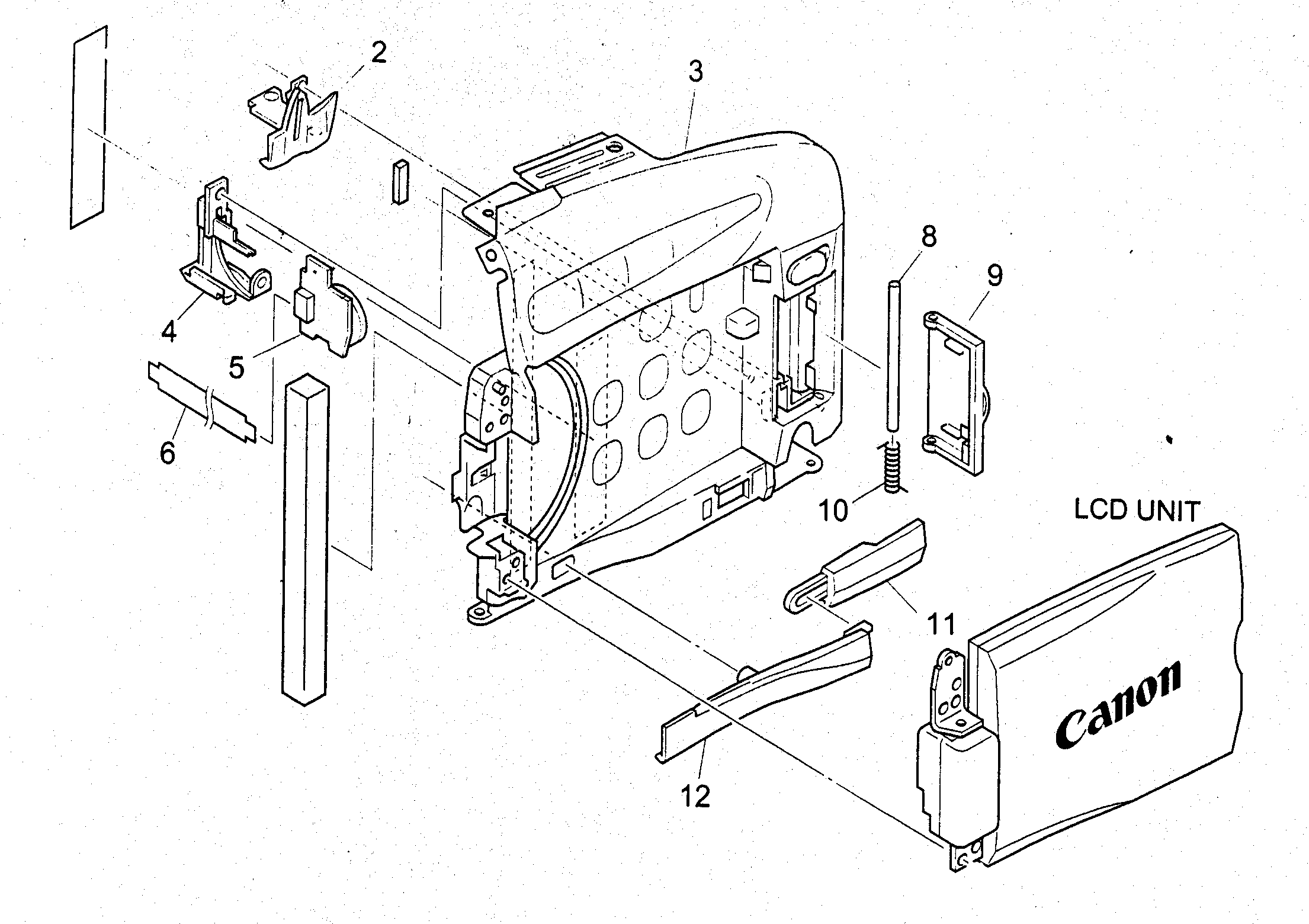

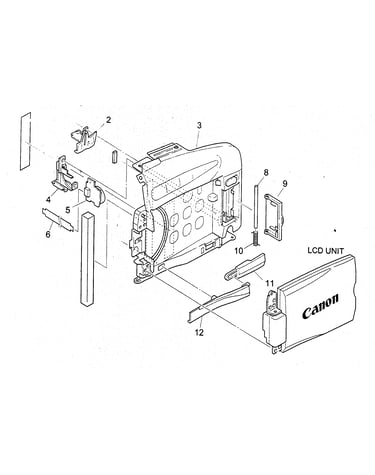

Right cover diagram

Cover

Part #DA2-1086-000

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly DG1-4113-000
#3

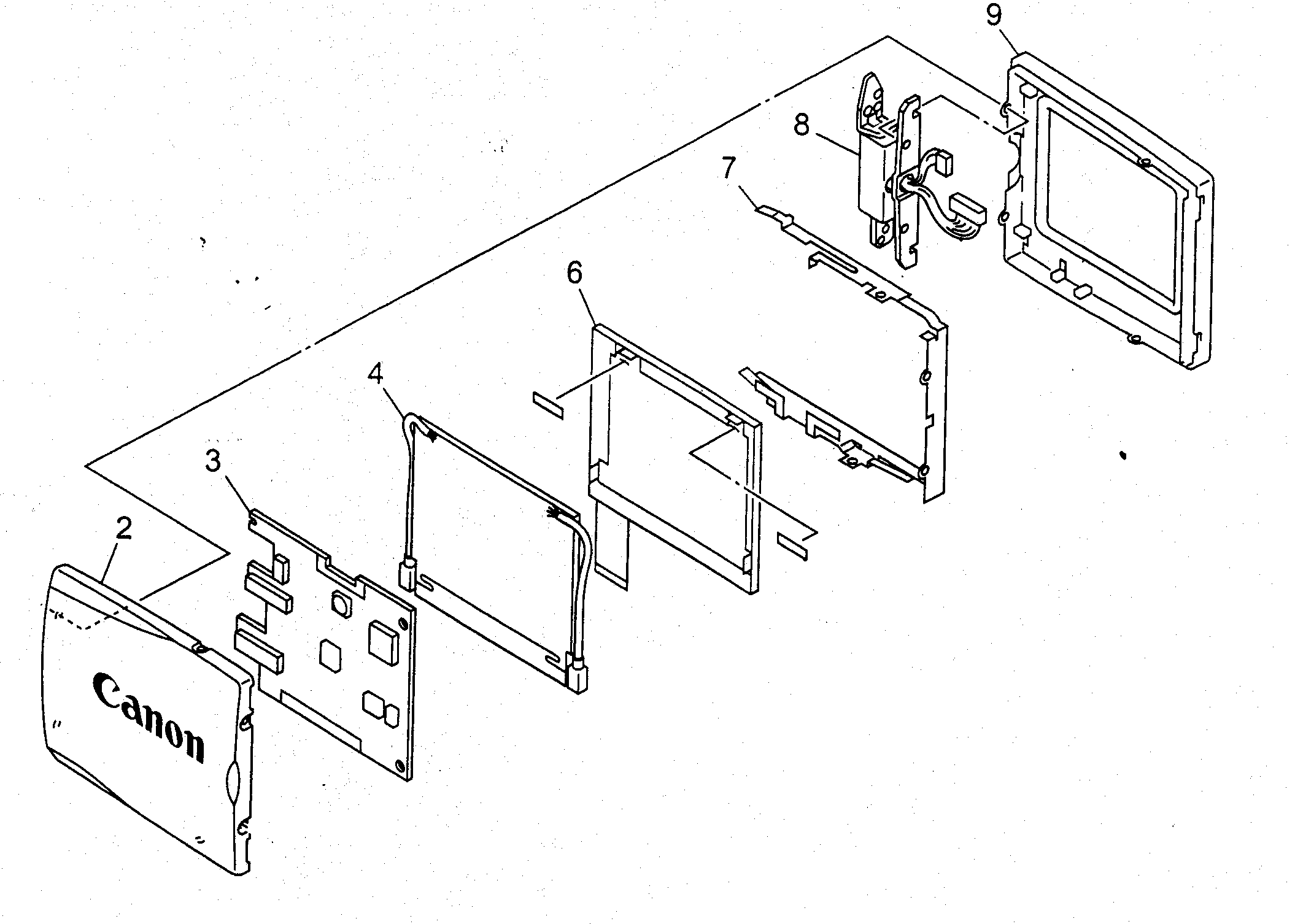

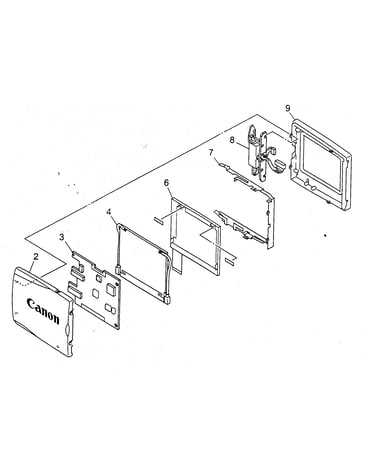

Lcd assy diagram

Pcb assembly

Part #DG1-4113-000

The manufacturer no longer makes this part, and there's no substitute part

Spring DA2-0477-000
#6

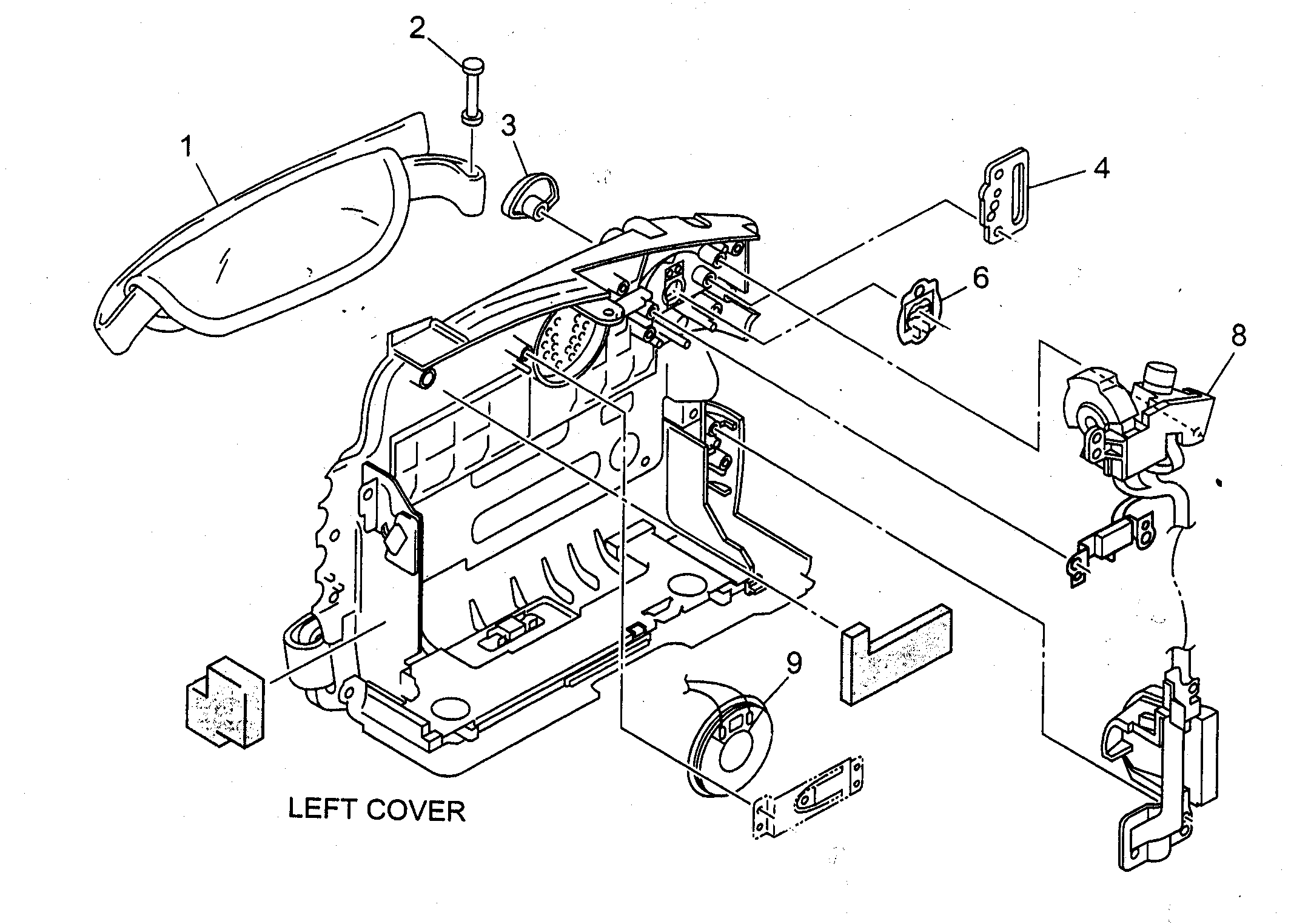

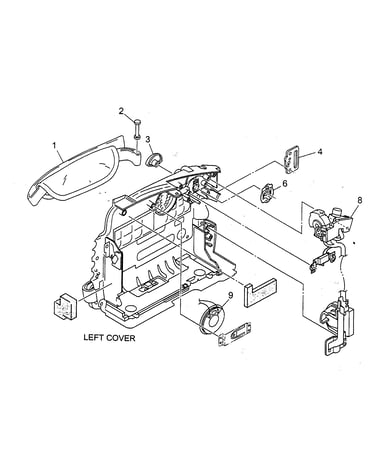

Left cover 1 diagram

Spring

Part #DA2-0477-000

The manufacturer no longer makes this part, and there's no substitute part

Gear Assembly DF1-1525-000
#NI

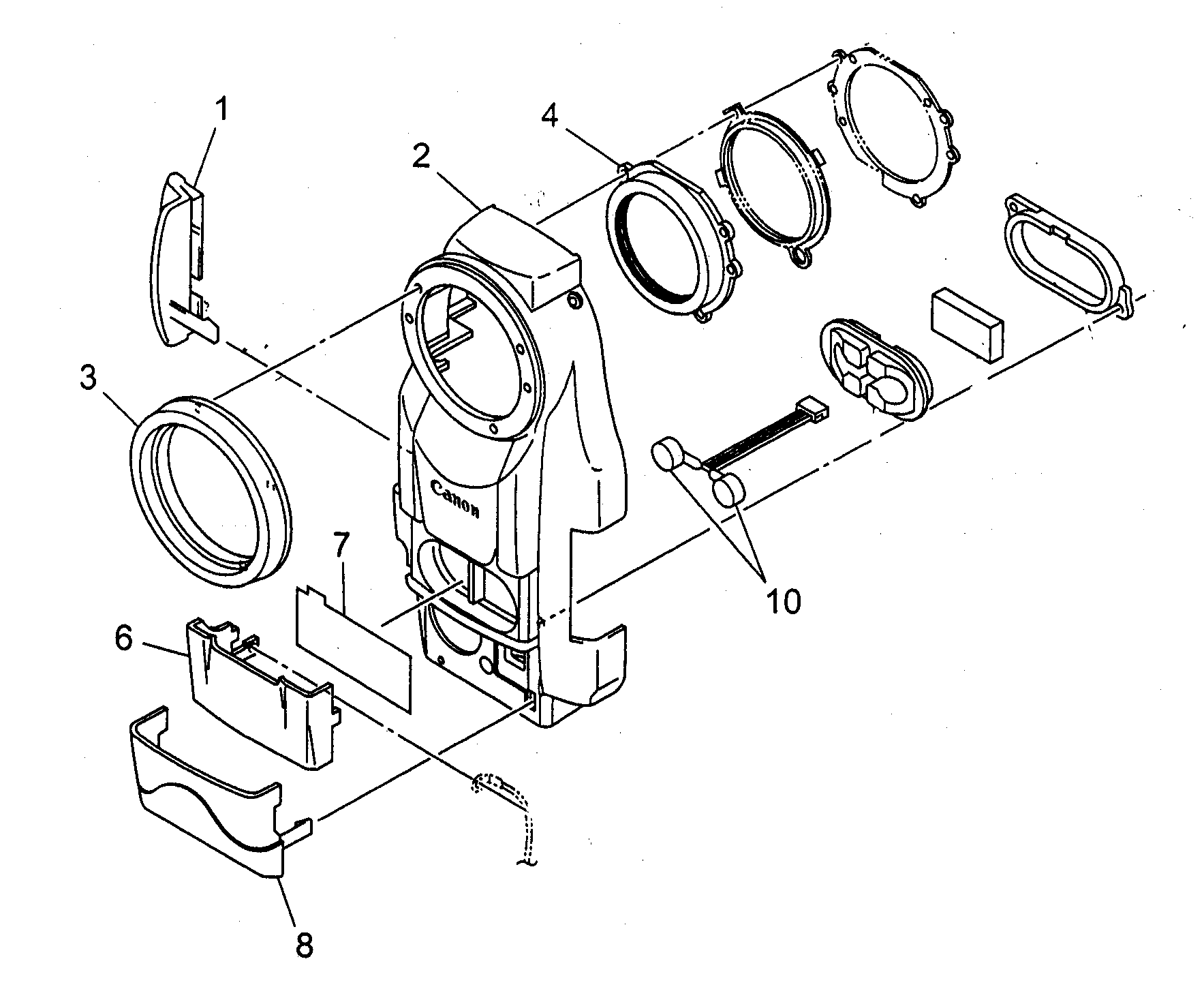

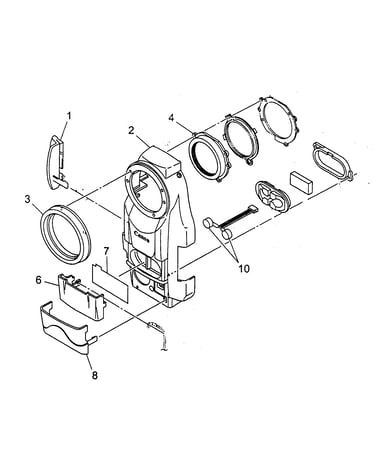

Front cover diagram

Gear assembly

Part #DF1-1525-000

The manufacturer no longer makes this part, and there's no substitute part

Cover DA2-0431-000
#7

Front cover diagram

Cover

Part #DA2-0431-000

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly DG1-4114-000
#9

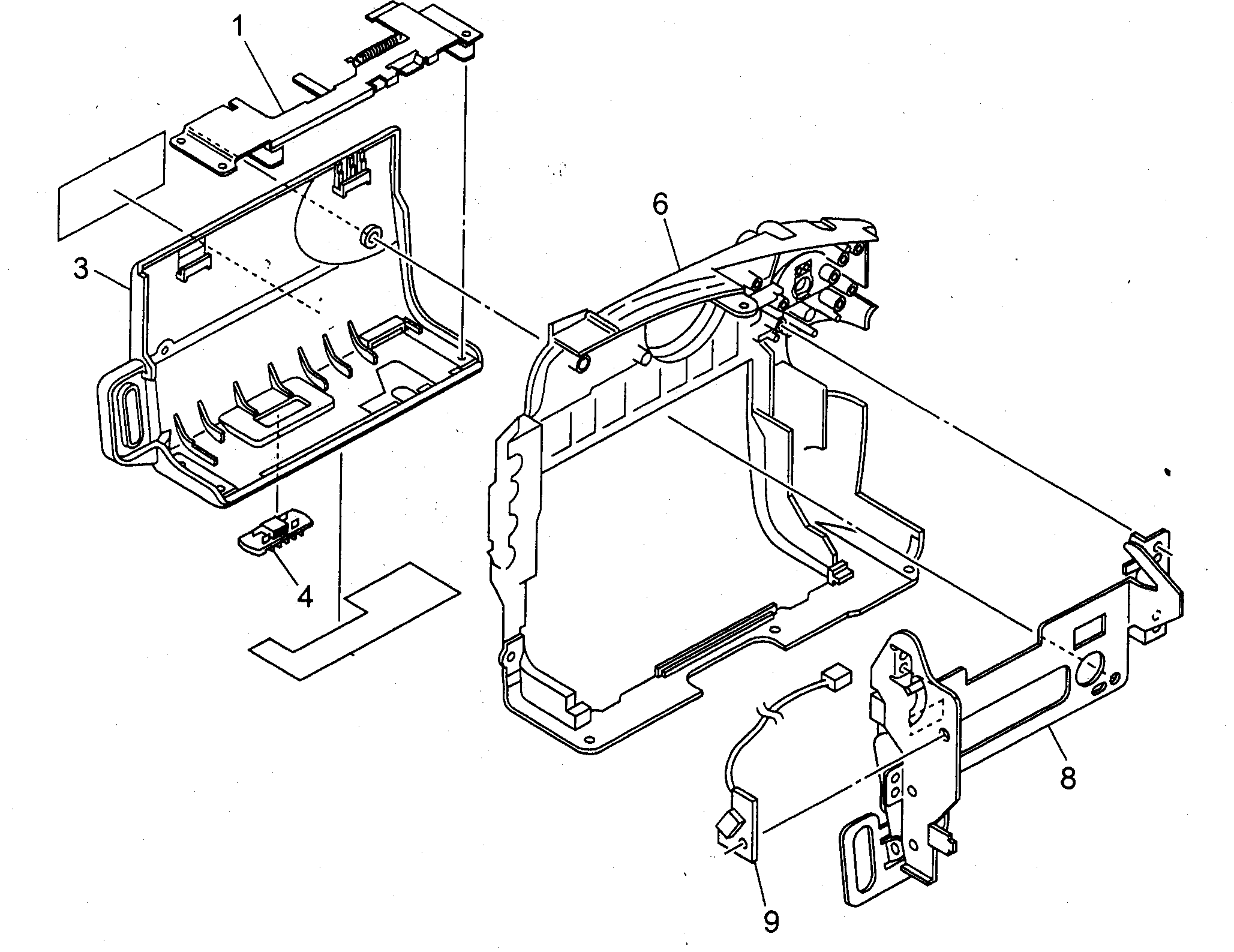

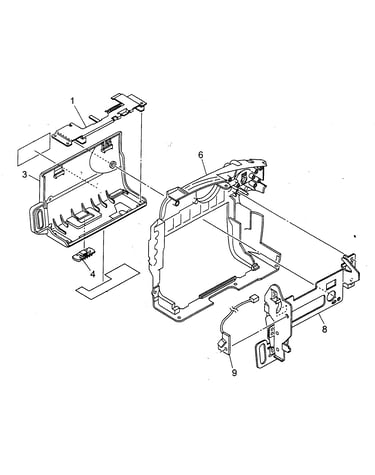

Left cover 2 diagram

Pcb assembly

Part #DG1-4114-000

The manufacturer no longer makes this part, and there's no substitute part

Hinge Assembly DY1-8288-000
#8

Lcd assy diagram

Hinge assembly

Part #DY1-8288-000

The manufacturer no longer makes this part, and there's no substitute part
