Model # WESY09320 Official Weider flex ctx60 weight system

Here are the diagrams and repair parts for Official Weider WESY09320 flex ctx60 weight system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |

Exercise Equipment Foam Pad 103805
#26

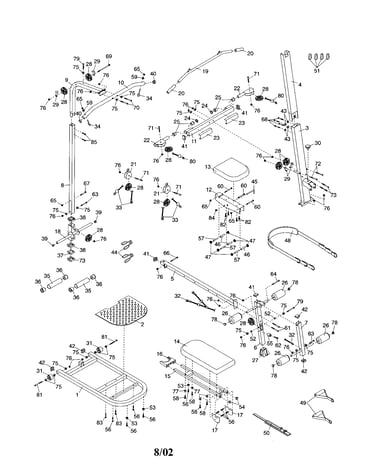

Base/top frame/seat/cross frame diagram

Exercise equipment foam pad

Part #103805

Replaced by #208378

?
Manufacturer substitution
This part replaces 103805. Substitute parts can look different from the original.
This item is not returnable
$5.39
16% OFF Phone Price : $6.39
In Stock
Hook,snap,bl 115383
#51

Base/top frame/seat/cross frame diagram

Hook,snap,bl

Part #115383

Replaced by #103087

?
Manufacturer substitution
This part replaces 115383. Substitute parts can look different from the original.
This item is not returnable
$4.19
19% OFF Phone Price : $5.19
In Stock
Nut,hex Nyl 121050
#76

Base/top frame/seat/cross frame diagram

Nut,hex nyl

Part #121050

Replaced by #148710

?
Manufacturer substitution
This part replaces 121050. Substitute parts can look different from the original.
This item is not returnable
In Stock
Internal Round End Cap, 1-in 120733
#39

Base/top frame/seat/cross frame diagram

Internal round end cap, 1-in

Part #120733

This item is not returnable
In Stock
Exercise Equipment Flat Washer 014073
#59

Base/top frame/seat/cross frame diagram

Exercise equipment flat washer

Part #014073

This item is not returnable
In Stock
Uprt,seat,bl 185839
#6

Base/top frame/seat/cross frame diagram

Uprt,seat,bl

Part #185839

In Stock
Image Exercise Equipment Screw 140739
#58

Base/top frame/seat/cross frame diagram

Image exercise equipment screw

Part #140739

This item is not returnable
In Stock
Deflecto Exercise Equipment Screw 144379
#68

Base/top frame/seat/cross frame diagram

Deflecto exercise equipment screw

Part #144379

This item is not returnable
In Stock
Elliptical Nut 012042
#65

Base/top frame/seat/cross frame diagram

Elliptical nut

Part #012042

This item is not returnable
In Stock
Deflecto Exercise Equipment Lock Washer 121519
#43

Base/top frame/seat/cross frame diagram

Deflecto exercise equipment lock washer

Part #121519

This item is not returnable
In Stock
