Nordyne
Central Air Conditioner

Model # MS3BC048KA Official Nordyne 12 seer split-system air conditioner

Here are the diagrams and repair parts for Official Nordyne MS3BC048KA 12 seer split-system air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Condenser Motor 621917
#16C

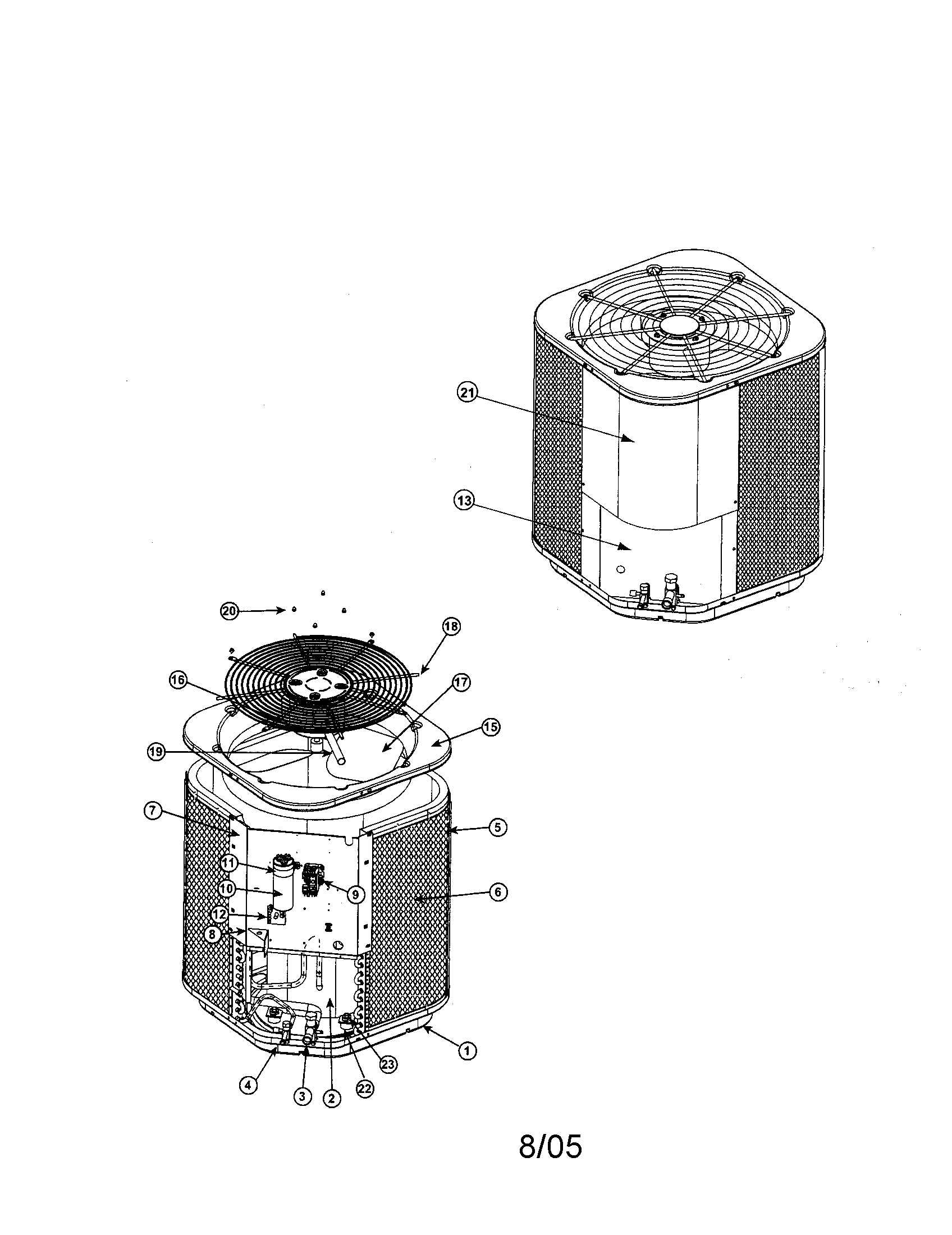

Split system air conditioner diagram

Condenser motor

Part #621917

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Motor 621918
#16B

Split system air conditioner diagram

Air conditioner blower motor

Part #621918

The manufacturer no longer makes this part, and there's no substitute part

Top Pan 496161
#15

Split system air conditioner diagram

Top pan

Part #496161

The manufacturer no longer makes this part, and there's no substitute part

Guard Kit 917206

#NI

All parts diagram

Guard kit

Part #917206

The manufacturer no longer makes this part, and there's no substitute part

Cap Strap 258780
#11A

Split system air conditioner diagram

Cap strap

Part #258780

The manufacturer no longer makes this part, and there's no substitute part

Compressor 914654
#2B

Split system air conditioner diagram

Compressor

Part #914654

The manufacturer no longer makes this part, and there's no substitute part

Compressor 914927
#2C

Split system air conditioner diagram

Compressor

Part #914927

The manufacturer no longer makes this part, and there's no substitute part

Valve,frig 663862
#4

Split system air conditioner diagram

Valve,frig

Part #663862

The manufacturer no longer makes this part, and there's no substitute part

Time Delay 621586
#12

Split system air conditioner diagram

Time delay

Part #621586

The manufacturer no longer makes this part, and there's no substitute part

Fan Grille 669334
#18

Split system air conditioner diagram

Fan grille

Part #669334

The manufacturer no longer makes this part, and there's no substitute part
