Proform
Elliptical Machine

Model # 831286221 Official Proform proform 15.5s elliptical machine

Here are the diagrams and repair parts for Official Proform 831286221 proform 15.5s elliptical machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Elliptical Resistance Motor (replaces 175656, 182556, 182851) 193223
#72

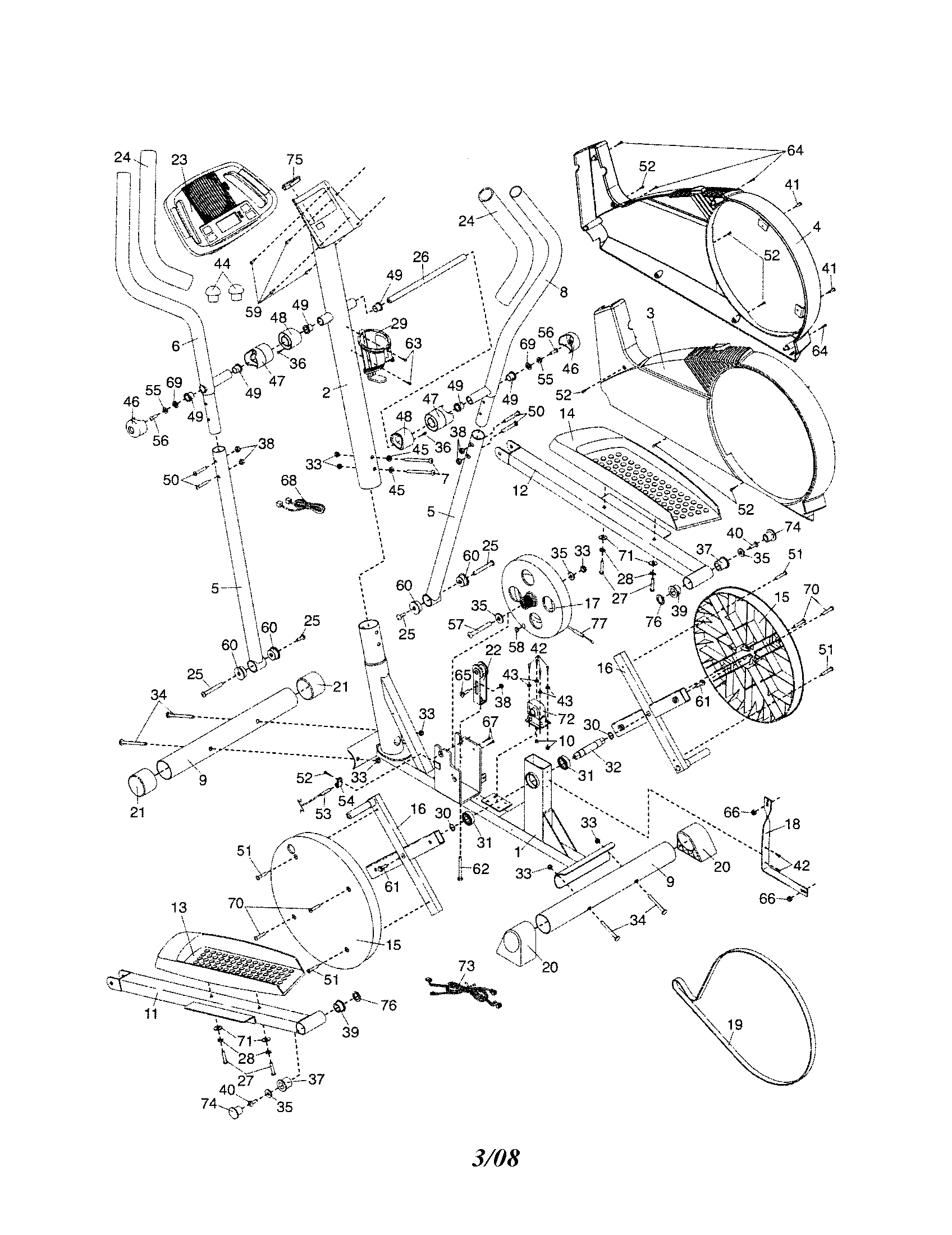

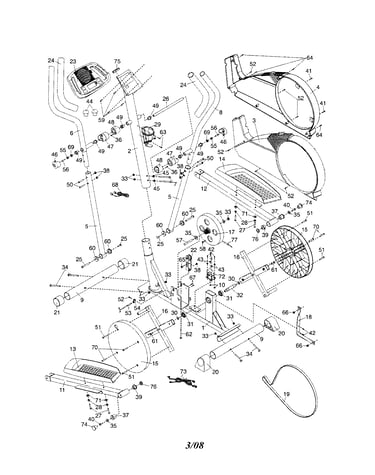

Elliptical diagram

Elliptical resistance motor (replaces 175656, 182556, 182851)

Part #193223

$50.99
In Stock
Elliptical Handlebar Bushing 138574
#49

Elliptical diagram

Elliptical handlebar bushing

Part #138574

Replaced by #256295

?
Manufacturer substitution
This part replaces 138574. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Toyostove Exercise Equipment Magnet 113842
#58

Elliptical diagram

Toyostove exercise equipment magnet

Part #113842

This item is not returnable
$2.16
Back Order
Toyostove Elliptical Nut 148710
#33

Elliptical diagram

Toyostove elliptical nut

Part #148710

This item is not returnable
$2.16
In Stock
Reebok Elliptical Crank Bearing (replaces 248395) 139703
#31

Elliptical diagram

Reebok elliptical crank bearing (replaces 248395)

Part #139703

This item is not returnable
$13.99 |
13% OFF Phone Price : $15.99
In Stock
Elliptical Washer 204489
#76

Elliptical diagram

Elliptical washer

Part #204489

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Weslo Elliptical Spring Washer 213148
#69

Elliptical diagram

Weslo elliptical spring washer

Part #213148

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Elliptical Flex Bushing 175592
#60

Elliptical diagram

Elliptical flex bushing

Part #175592

This item is not returnable
$13.99
In Stock
Exercise Equipment Hex Nut 150327
#10

Elliptical diagram

Exercise equipment hex nut

Part #150327

This item is not returnable
$2.16
In Stock
Rear End Cap 174916
#20

Elliptical diagram

Rear end cap

Part #174916

This item is not returnable
$4.99
In Stock

Symptoms for elliptical machines

Choose a symptom to see related elliptical repairs.

View all

Why does my elliptical rock?

Main causes: leveling feet need to be adjusted, loose frame bolts, unstable flooring…

Read more

Why won't my elliptical's console turn on?

Main causes: dead batteries, power supply failure, bad wiring connections, faulty control console…

Read more

How do I tighten elliptical handle bars?

Main causes: loose fastening bolts, damaged handle bars…

Read more

Why is my elliptical's console display dim?

Main causes: weak batteries, loose wires, faulty control console…

Read more

Why won't my elliptical's pedal resistance change?

Main causes: bad resistance motor, faulty control console, wiring failure…

Read more

Why does my elliptical display the wrong speed?

Main causes: faulty reed switch, reed switch needs adjustment, wiring failure, bad control console…

Read more

Why does my elliptical make squeaking noises?

Main cause: lack of lubrication on pivot points…

Read more

Why can't my elliptical detect my heart rate?

Main causes: dirty heart rate sensors, wiring failure, bad control console…

Read more

Repair guides for elliptical machines

These step-by-step repair guides will help you safely fix what’s broken on your elliptical.

View all
How to replace an elliptical resistance motor

How to replace an elliptical resistance motor

If the resistance motor is not changing the resistance on your elliptical, replace it using these steps.…

Read more
Repair difficulty
Time required
 15 minutes or less
How to adjust an elliptical reed switch

How to adjust an elliptical reed switch

If the console doesn't display the correct speed on your elliptical, adjust the reed switch using these steps.…

Read more
Repair difficulty
Time required
 15 minutes or less
How to replace an elliptical console

How to replace an elliptical console

If the console on your elliptical doesn't work, replace it by following these 3 easy steps.…

Read more
Repair difficulty
Time required
 15 minutes or less
