Kenmore
Canister Vacuum

Model # 1162432781 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1162432781 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |

Brush 742811
#17

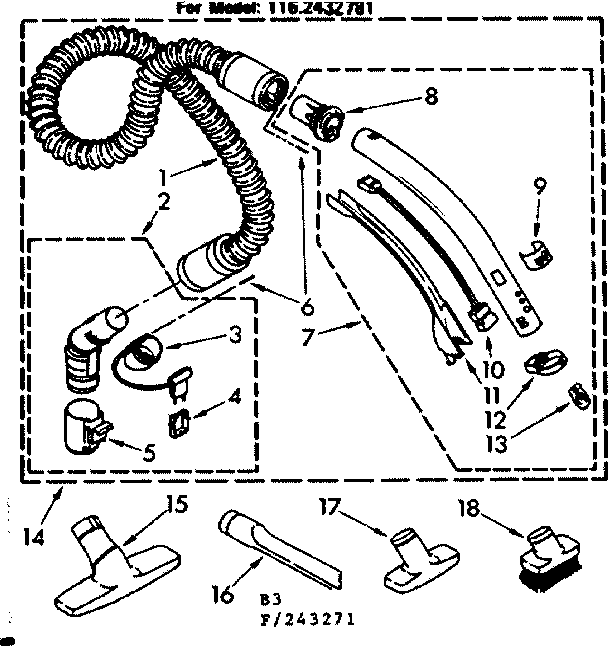

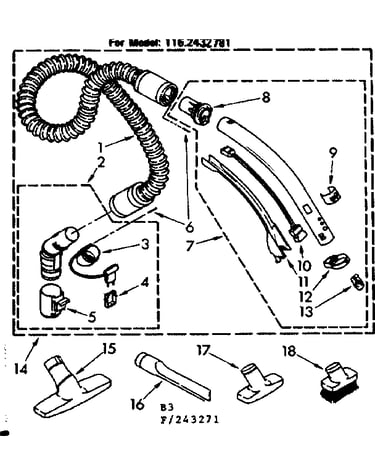

Attachment parts diagram

Brush

Part #742811

The manufacturer no longer makes this part, and there's no substitute part

Hood 706949
#29

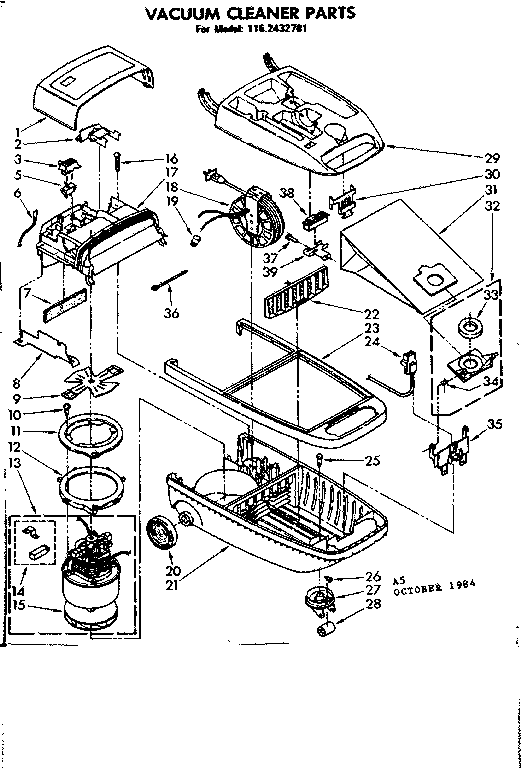

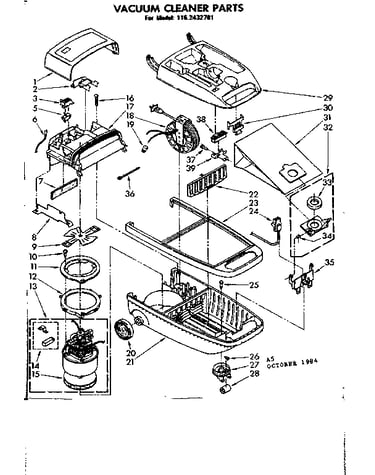

Base assembly diagram

Hood

Part #706949

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter 706389
#7

Base assembly diagram

Vacuum filter

Part #706389

The manufacturer no longer makes this part, and there's no substitute part

Contact Pin 743337
#6

Attachment parts diagram

Contact pin

Part #743337

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bag 676246
#32

Base assembly diagram

Mounting bag

Part #676246

The manufacturer no longer makes this part, and there's no substitute part

Mount 706821
#12

Base assembly diagram

Mount

Part #706821

The manufacturer no longer makes this part, and there's no substitute part

Lock 742859
#12

Attachment parts diagram

Lock

Part #742859

The manufacturer no longer makes this part, and there's no substitute part

Label LIT706421

#NI

All parts diagram

Label

Part #LIT706421

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 706398
#24

Base assembly diagram

Receptacle

Part #706398

The manufacturer no longer makes this part, and there's no substitute part

Bumper 706008
#23

Base assembly diagram

Bumper

Part #706008

The manufacturer no longer makes this part, and there's no substitute part
