Model # 31P677-0804-E1 Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 31P677-0804-E1 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |

Lawn & Garden Equipment Engine Fuel Filter (replaces 2173206, 2173206sm, 394358, 692064, 7014359, 7014359yp, 75213, Bs-394358s) 394358S

#240

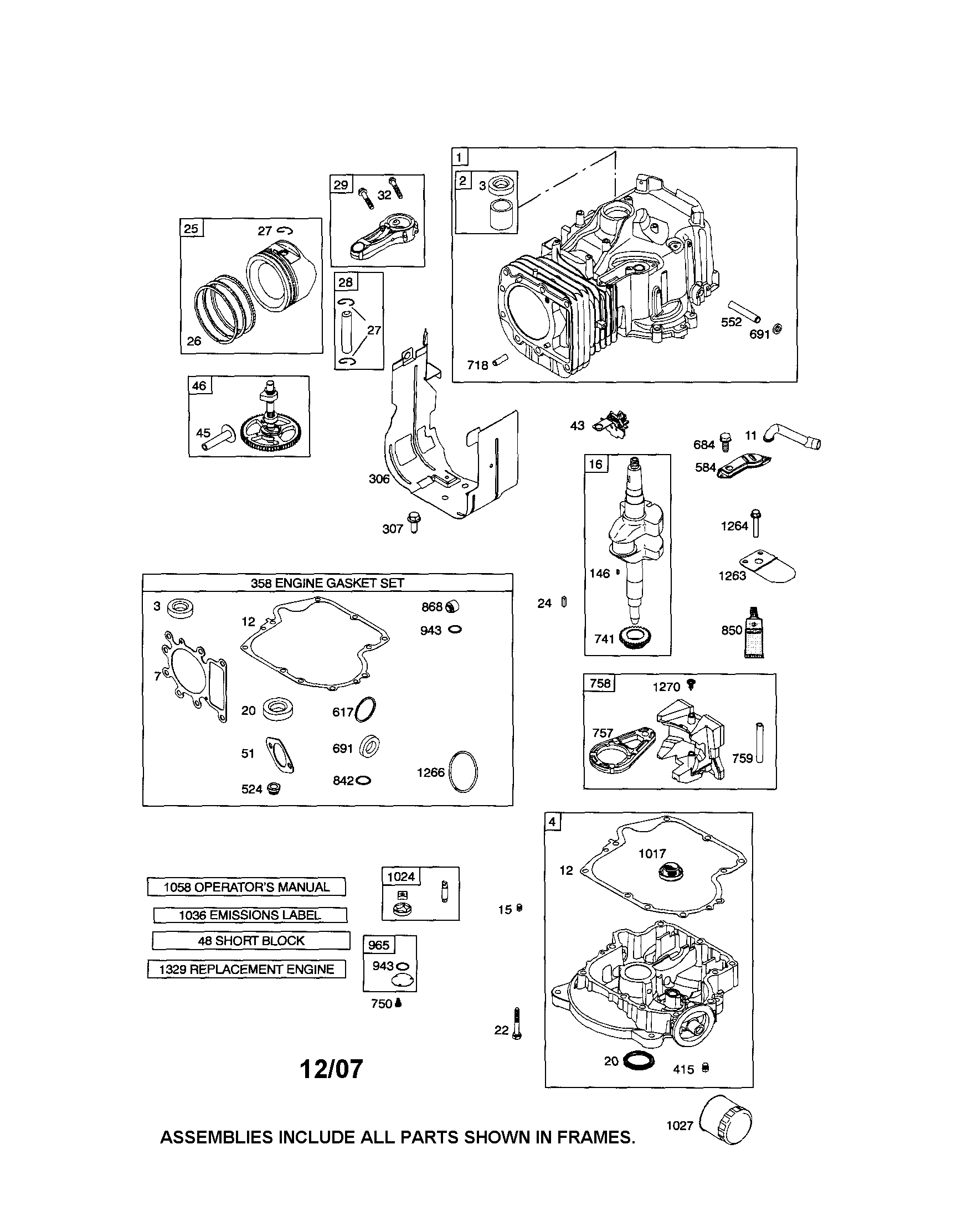

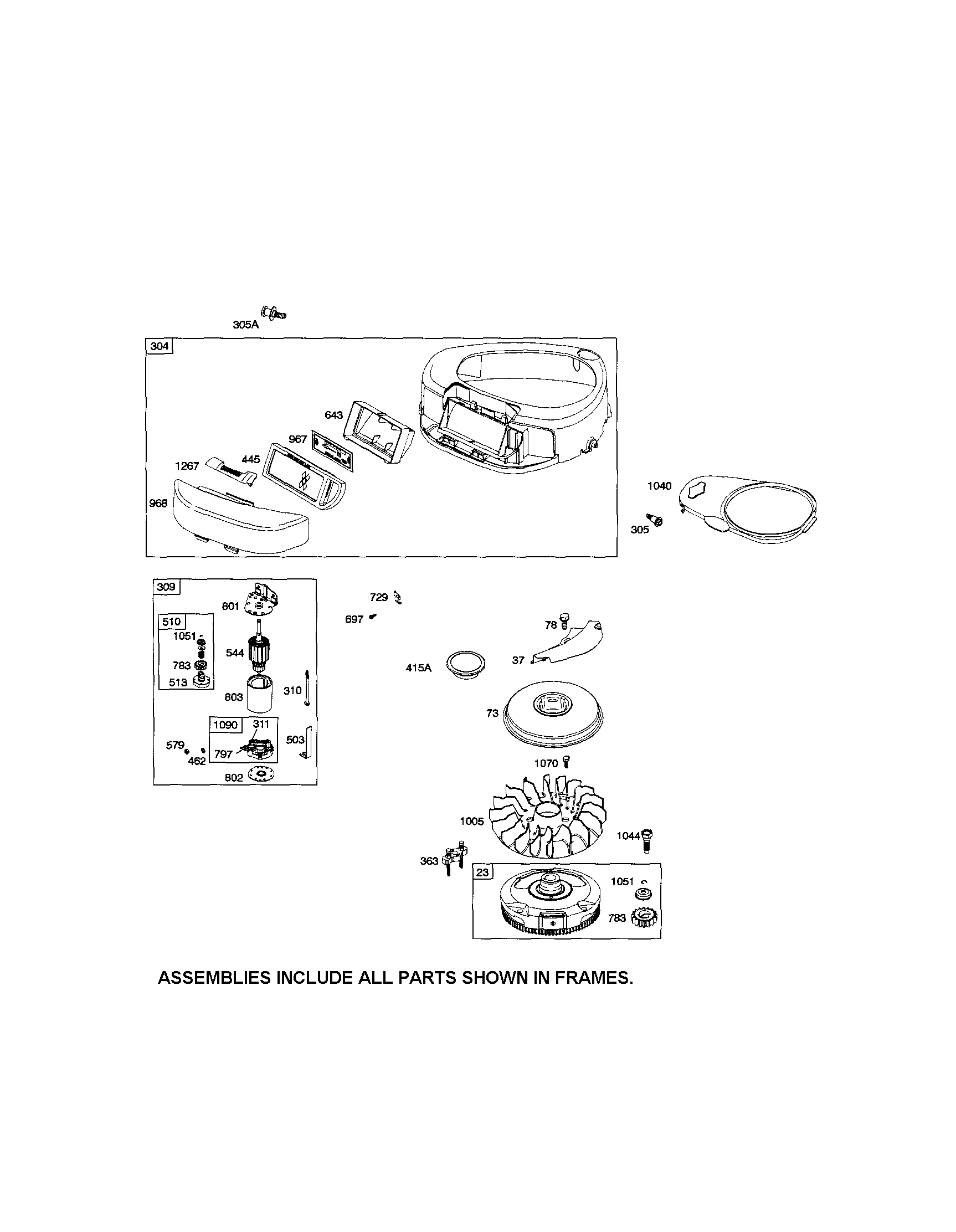

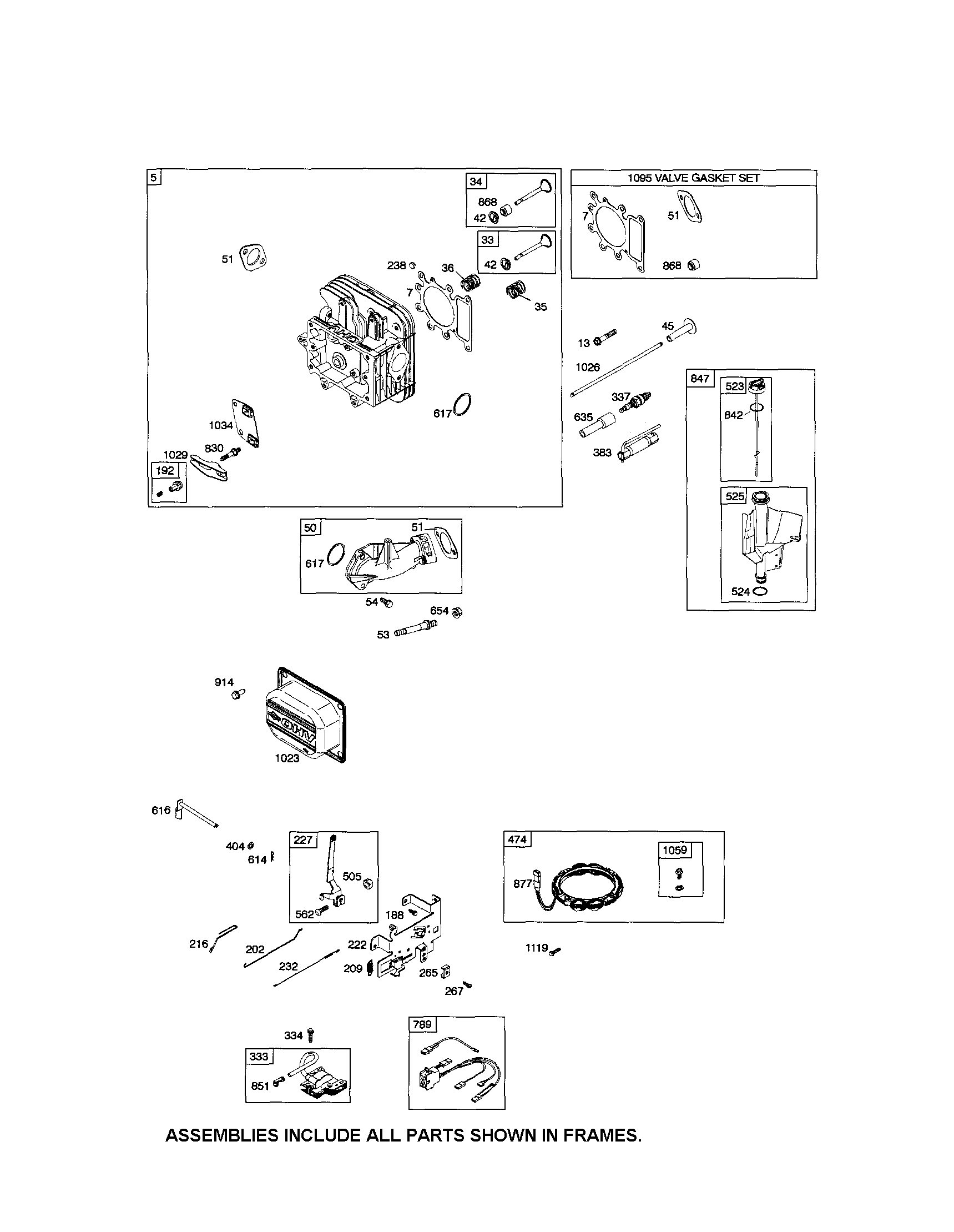

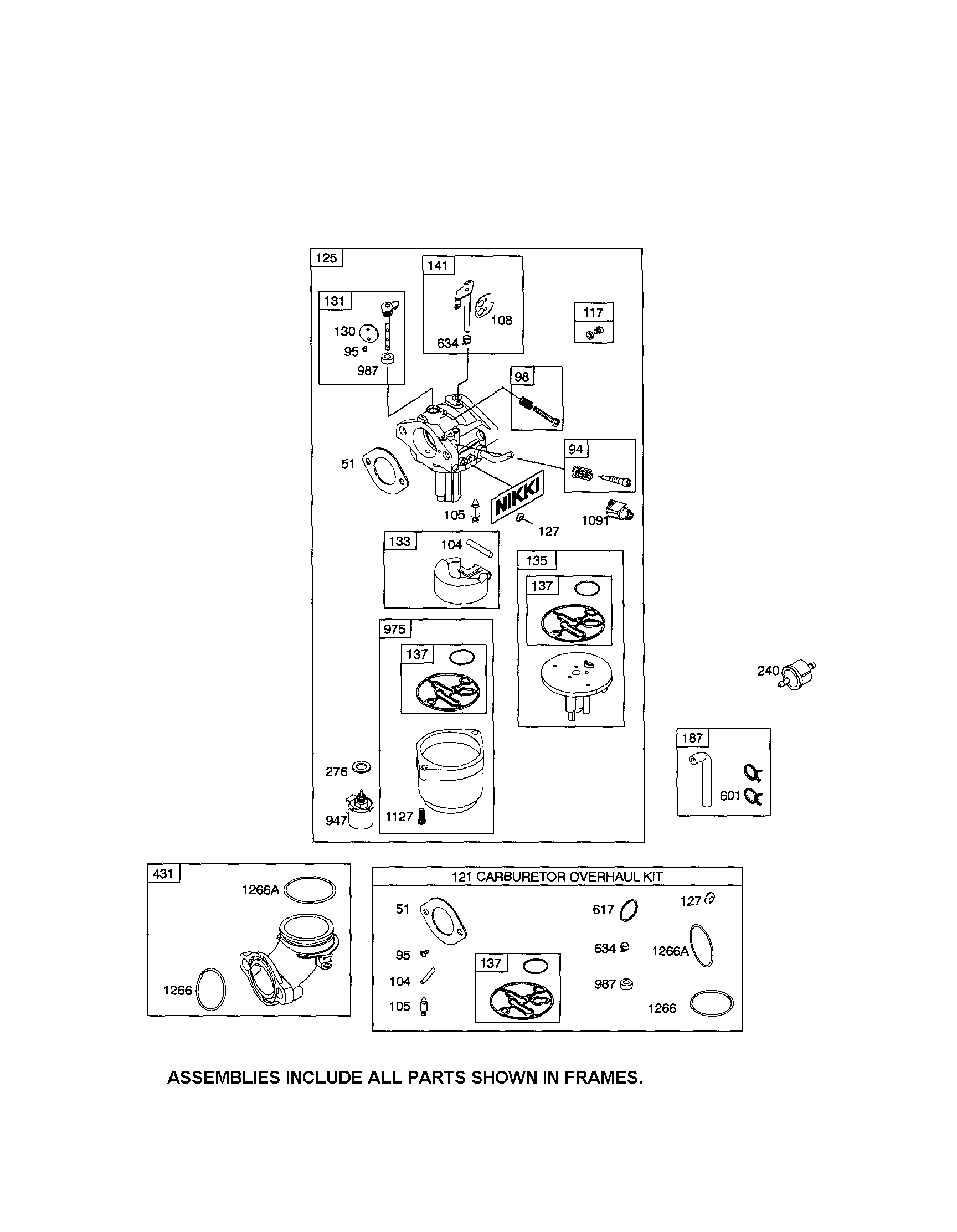

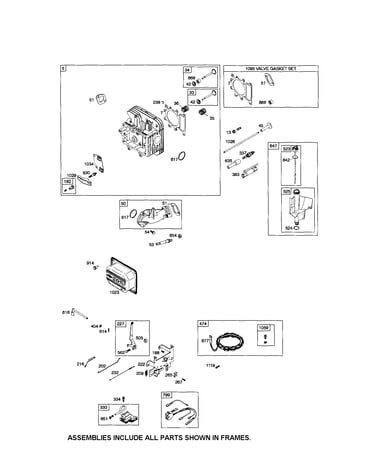

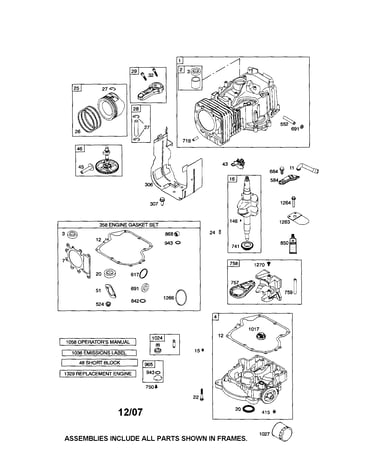

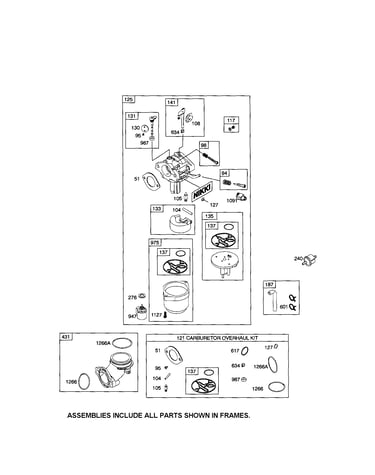

All parts diagram

Lawn & garden equipment engine fuel filter (replaces 2173206, 2173206sm, 394358, 692064, 7014359, 7014359yp, 75213, bs-394358s)

Part #394358S

BEST SELLER
$6.67
13% OFF Phone Price : $7.67
In Stock
Engine Air Filter 698083

#445

All parts diagram

Engine air filter

Part #698083

Replaced by #794422

?
Manufacturer substitution
This part replaces 698083. Substitute parts can look different from the original.
BEST SELLER
$23.03
21% OFF Phone Price : $29.03
In Stock
Lawn & Garden Equipment Engine Crankcase Gasket 697110

#12

All parts diagram

Lawn & garden equipment engine crankcase gasket

Part #697110

BEST SELLER
$9.02
10% OFF Phone Price : $10.02
In Stock
Armature 795315

#333

All parts diagram

Armature

Part #795315

Replaced by #595304

?
Manufacturer substitution
This part replaces 795315. Substitute parts can look different from the original.
BEST SELLER
$51.70
10% OFF Phone Price : $57.70
In Stock
Oil Seal 690947

#20

All parts diagram

Oil seal

Part #690947

Replaced by #795387

?
Manufacturer substitution
This part replaces 690947. Substitute parts can look different from the original.
BEST SELLER
$9.02
10% OFF Phone Price : $10.02
In Stock
Lawn & Garden Equipment Engine Flywheel Key (replaces 222698, 690974, Bs-222698s) 222698S

#24

All parts diagram

Lawn & garden equipment engine flywheel key (replaces 222698, 690974, bs-222698s)

Part #222698S

BEST SELLER
This item is not returnable
$3.29
23% OFF Phone Price : $4.29
In Stock
Kit-valve Ov 690190

#1095

All parts diagram

Kit-valve ov

Part #690190

Replaced by #794152

?
Manufacturer substitution
This part replaces 690190. Substitute parts can look different from the original.
BEST SELLER
$38.17
14% OFF Phone Price : $44.17
In Stock
Lawn & Garden Equipment Engine Breather Tube (replaces 697113, Bs-794683) 794683

#11

All parts diagram

Lawn & garden equipment engine breather tube (replaces 697113, bs-794683)

Part #794683

BEST SELLER
This item is not returnable
$15.09
12% OFF Phone Price : $17.09
In Stock
Lawn & Garden Equipment Engine O-ring (replaces 281106, 697891) 691917

#1266

All parts diagram

Lawn & garden equipment engine o-ring (replaces 281106, 697891)

Part #691917

This item is not returnable
$6.89
13% OFF Phone Price : $7.89
In Stock
Lawn & Garden Equipment Engine Fuel Line (replaces 697907, 698819, 698821, 699331, Bs-697098, Bs-699331) 791805

#187

All parts diagram

Lawn & garden equipment engine fuel line (replaces 697907, 698819, 698821, 699331, bs-697098, bs-699331)

Part #791805

This item is not returnable
$30.44
16% OFF Phone Price : $36.44
In Stock
