Kenmore
Furnace

Model # 867762210 Official Kenmore gas-fired space saver furnace

Here are the diagrams and repair parts for Official Kenmore 867762210 gas-fired space saver furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Module 612919

#NI

All parts diagram

Module

Part #612919

The manufacturer no longer makes this part, and there's no substitute part

Bushing Wire 504096
#10

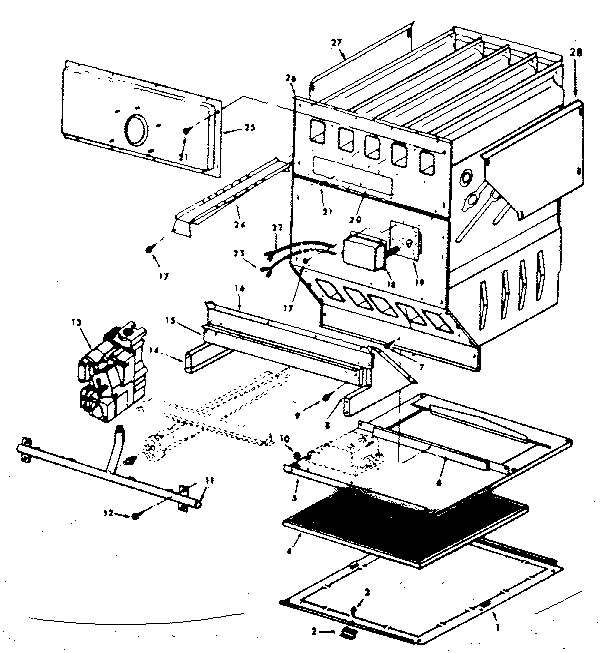

Heat exchanger and gas valve diagram

Bushing wire

Part #504096

$11.00
In Stock
Filter 603759
#4

Heat exchanger and gas valve diagram

Filter

Part #603759

$66.64
In Stock
Conversn Kit 1001620

#NI

All parts diagram

Conversn kit

Part #1001620

$836.83
In Stock
Block Switch 609125
#18

Electrical and vent blower diagram

Block switch

Part #609125

$131.64
In Stock
Furnace Vent Motor Gasket 607014
#50

Electrical and vent blower diagram

Furnace vent motor gasket

Part #607014

This item is not returnable
$44.60
In Stock
Line Fitting 606943
#45

Electrical and vent blower diagram

Line fitting

Part #606943

$64.09
In Stock
Collector 608150
#25

Heat exchanger and gas valve diagram

Collector

Part #608150

$501.38
In Stock
Furnace Blower Fan Wheel 600586
#17

Blower assembly diagram

Furnace blower fan wheel

Part #600586

$127.13 |
9% OFF Phone Price : $139.13
In Stock
Relay 607026
#19

Electrical and vent blower diagram

Relay

Part #607026

The manufacturer no longer makes this part, and there's no substitute part
