Kenmore
Gas Water Heater

Model # 153339860 Official Kenmore water heater

Here are the diagrams and repair parts for Official Kenmore 153339860 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Burner 9002411
#2

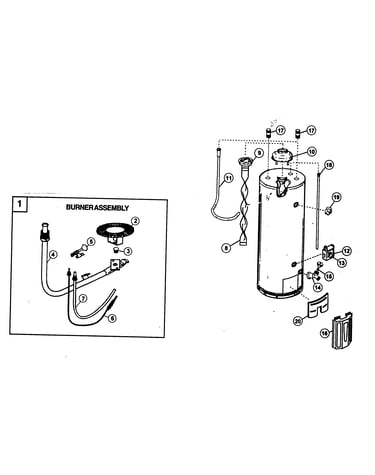

Water heater diagram

Burner

Part #9002411

Replaced by #9003631005

?
Manufacturer substitution
This part replaces 9002411. Substitute parts can look different from the original.
$46.79 |
11% OFF Phone Price : $52.79
In Stock
Pilot Assembly 9000285
#5

Water heater diagram

Pilot assembly

Part #9000285

Replaced by #9000285-15

?
Manufacturer substitution
This part replaces 9000285. Substitute parts can look different from the original.
$25.81
In Stock
Flue Baffle 9000299
#8

Water heater diagram

Flue baffle

Part #9000299

$113.99
In Stock
Gas Water Heater Owner's Manual 184811-000
#NI

Water heater diagram

Gas water heater owner's manual

Part #184811-000

$9.99
In Stock
Burner Orifice 0230124
#3

Water heater diagram

Burner orifice

Part #0230124

Replaced by #100109666

?
Manufacturer substitution
This part replaces 0230124. Substitute parts can look different from the original.
$27.78
In Stock
Ring 9000297
#9

Water heater diagram

Ring

Part #9000297

Replaced by #100109288

?
Manufacturer substitution
This part replaces 9000297. Substitute parts can look different from the original.
$33.33
In Stock
Dip Tube 9003933
#11

Water heater diagram

Dip tube

Part #9003933

Replaced by #100108692

?
Manufacturer substitution
This part replaces 9003933. Substitute parts can look different from the original.
$26.67
In Stock
Water Heater Thermocouple 9000283
#6

Water heater diagram

Water heater thermocouple

Part #9000283

Replaced by #H06E-36

?
Manufacturer substitution
This part replaces 9000283. Substitute parts can look different from the original.
This item is not returnable
$14.52 |
12% OFF Phone Price : $16.52
Back Order
Water Heater Vent Draft Hood (replaces 183853-000, 2190144, 9003499) 9000274
#10

Water heater diagram

Water heater vent draft hood (replaces 183853-000, 2190144, 9003499)

Part #9000274

Replaced by #100108368

?
Manufacturer substitution
This part replaces 9000274. Substitute parts can look different from the original.
$36.67
In Stock
Anode Rod 9003413
#18

Water heater diagram

Anode rod

Part #9003413

Replaced by #100108660

?
Manufacturer substitution
This part replaces 9003413. Substitute parts can look different from the original.
$60.00
In Stock
