Model # 5656138 Official Kenmore trailer down-discharge blower-type air cooler

Here are the diagrams and repair parts for Official Kenmore 5656138 trailer down-discharge blower-type air cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Stiffener M3-711-8
Stiffener

Part #M3-711-8

The manufacturer no longer makes this part, and there's no substitute part

1/2 H.p., 1-speed N/P
1/2 h.p., 1-speed

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Hanger Strap M12-403
#48

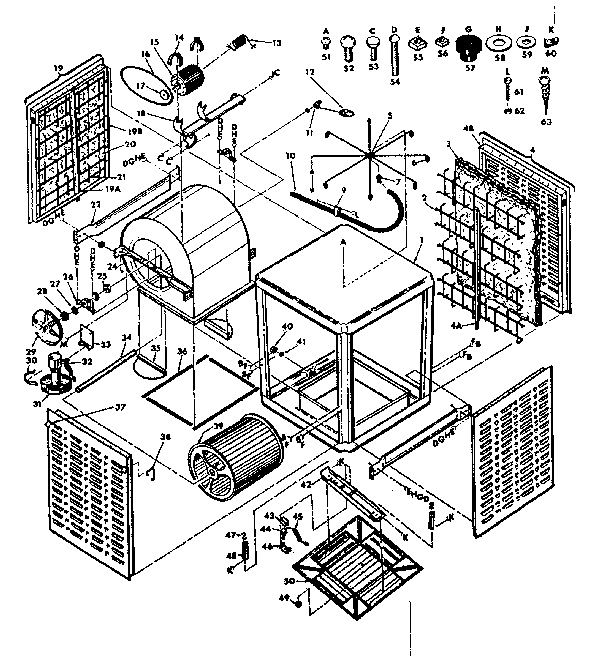

Blower assembly diagram

Hanger strap

Part #M12-403

The manufacturer no longer makes this part, and there's no substitute part

Bearing P5-308
#26A

Blower assembly diagram

Bearing

Part #P5-308

The manufacturer no longer makes this part, and there's no substitute part

Belt P3-641
#16A

Blower assembly diagram

Belt

Part #P3-641

The manufacturer no longer makes this part, and there's no substitute part

Wheel A3-665
#39A

Blower assembly diagram

Wheel

Part #A3-665

The manufacturer no longer makes this part, and there's no substitute part

Float Bottle A4-437
#12

Blower assembly diagram

Float bottle

Part #A4-437

The manufacturer no longer makes this part, and there's no substitute part

Pump P1-196
#32

Blower assembly diagram

Pump

Part #P1-196

The manufacturer no longer makes this part, and there's no substitute part

Washer P8-603
#58

Blower assembly diagram

Washer

Part #P8-603

The manufacturer no longer makes this part, and there's no substitute part

S-hook P4-302
#47

Blower assembly diagram

S-hook

Part #P4-302

The manufacturer no longer makes this part, and there's no substitute part
