Goldstar
Countertop Microwave

Model # MA1152W Official Goldstar microwave

Here are the diagrams and repair parts for Official Goldstar MA1152W microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

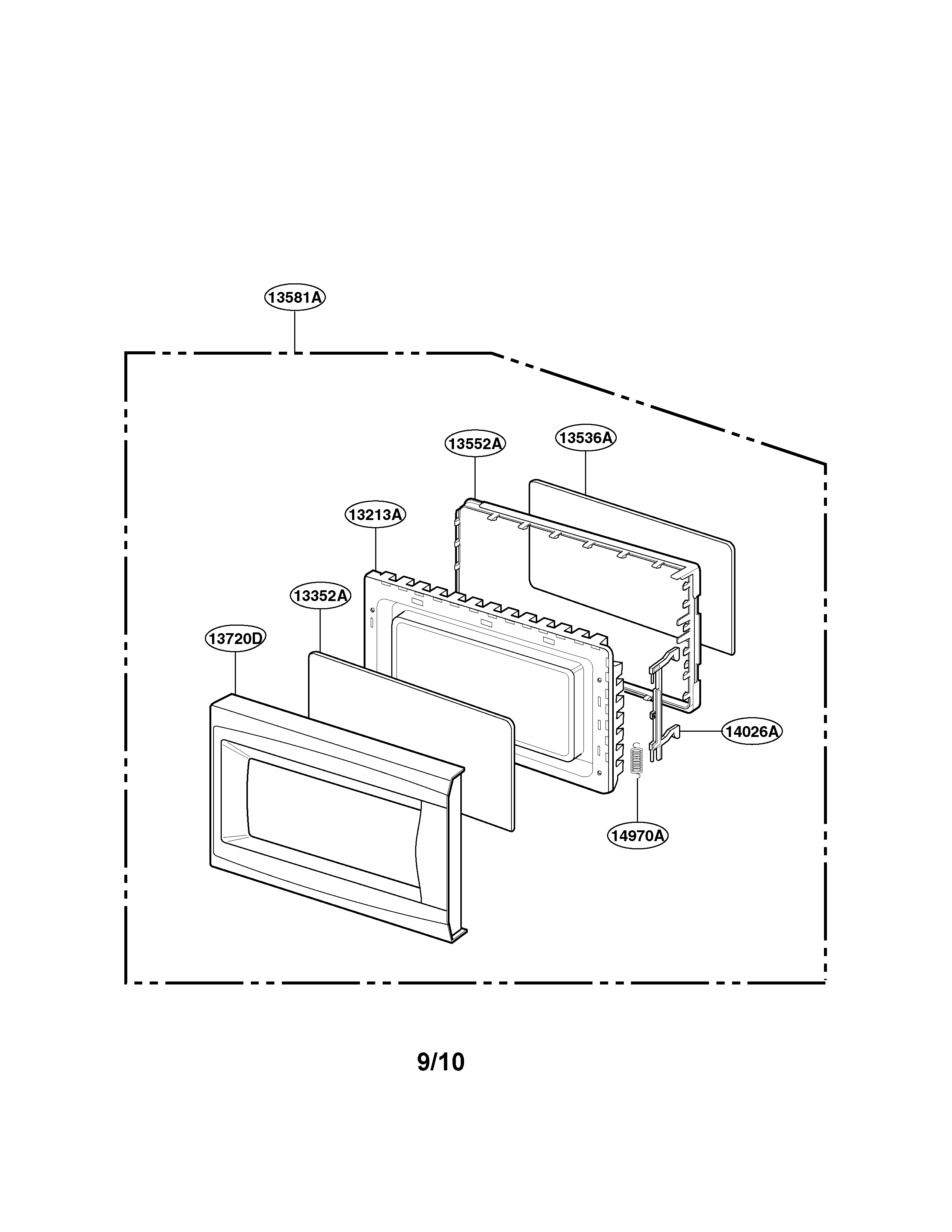

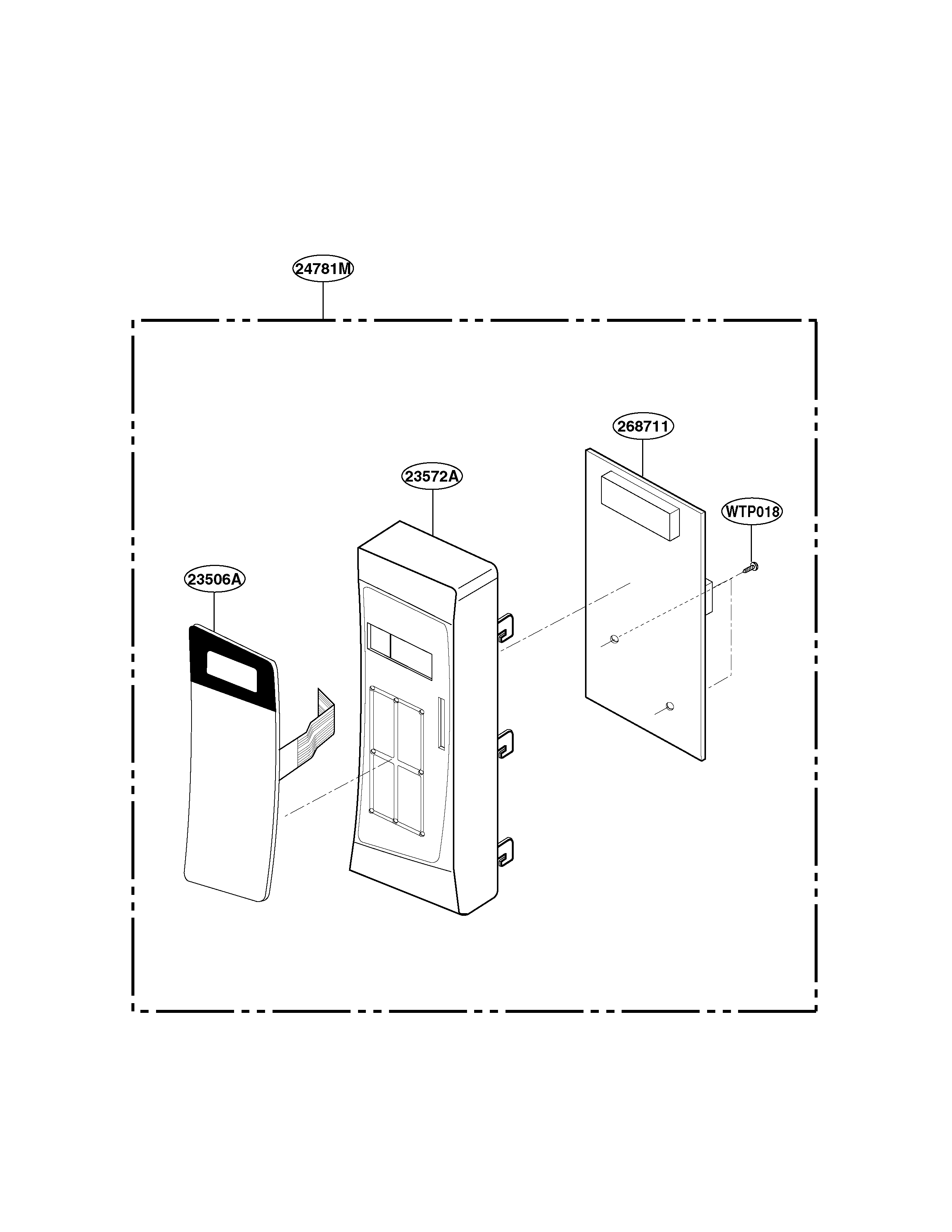

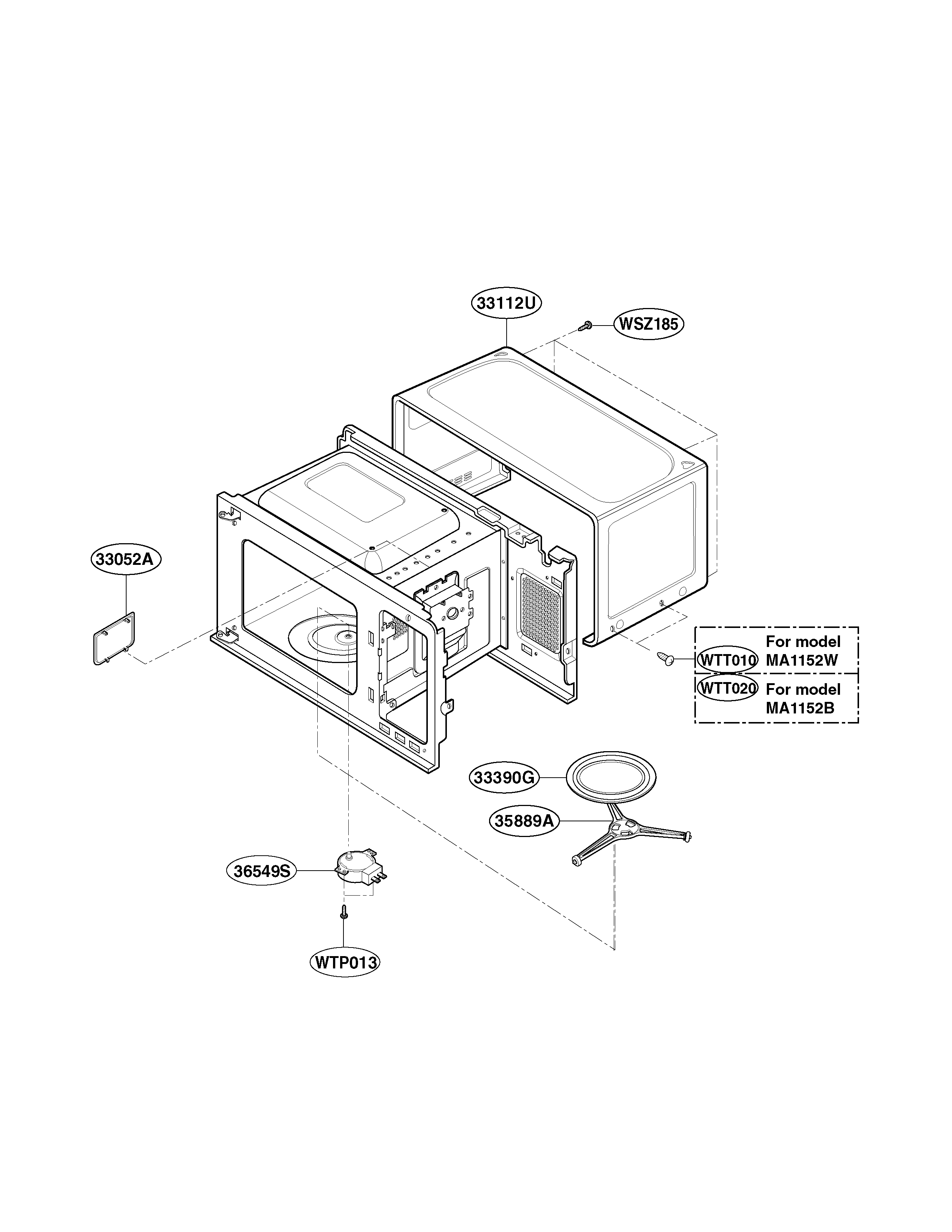

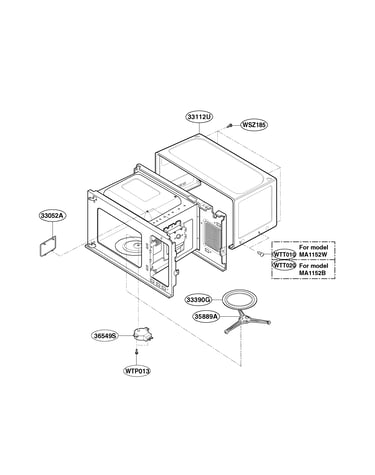

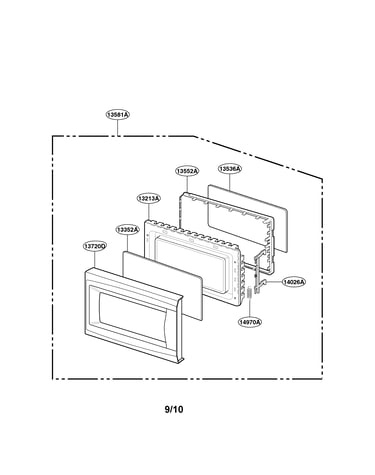

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Microwave Magnetron (replaces 6324w1a001h) 6324W1A001L
#5632

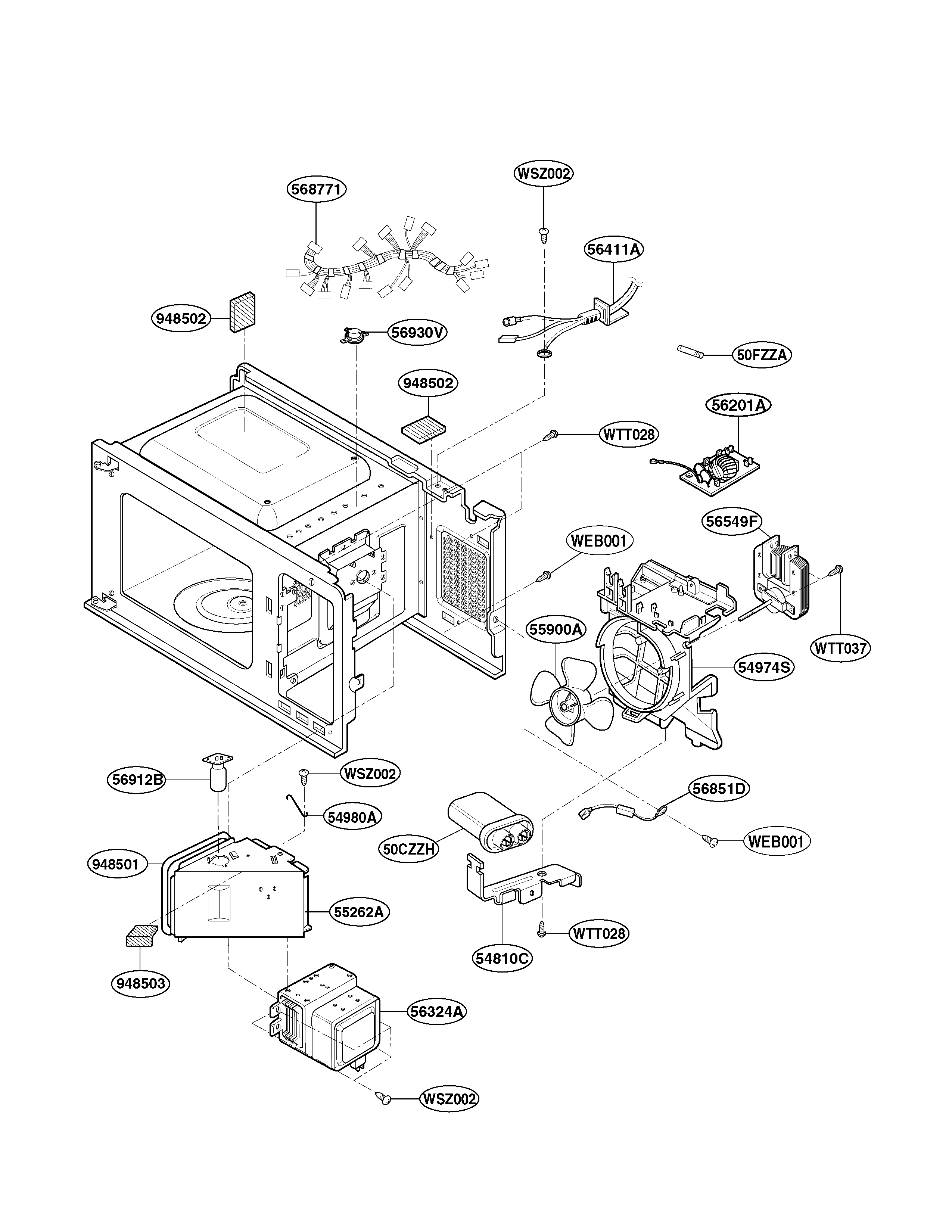

Interior parts diagram

Microwave magnetron (replaces 6324w1a001h)

Part #6324W1A001L

BEST SELLER
$94.70 |
5% OFF Phone Price : $99.70
In Stock
Cable Assembly 6851W1A002B
#5685

Interior parts diagram

Cable assembly

Part #6851W1A002B

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6851W1A002B. Substitute parts can look different from the original.
BEST SELLER
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Microwave Micro-switch 6600W1K004F
#4660

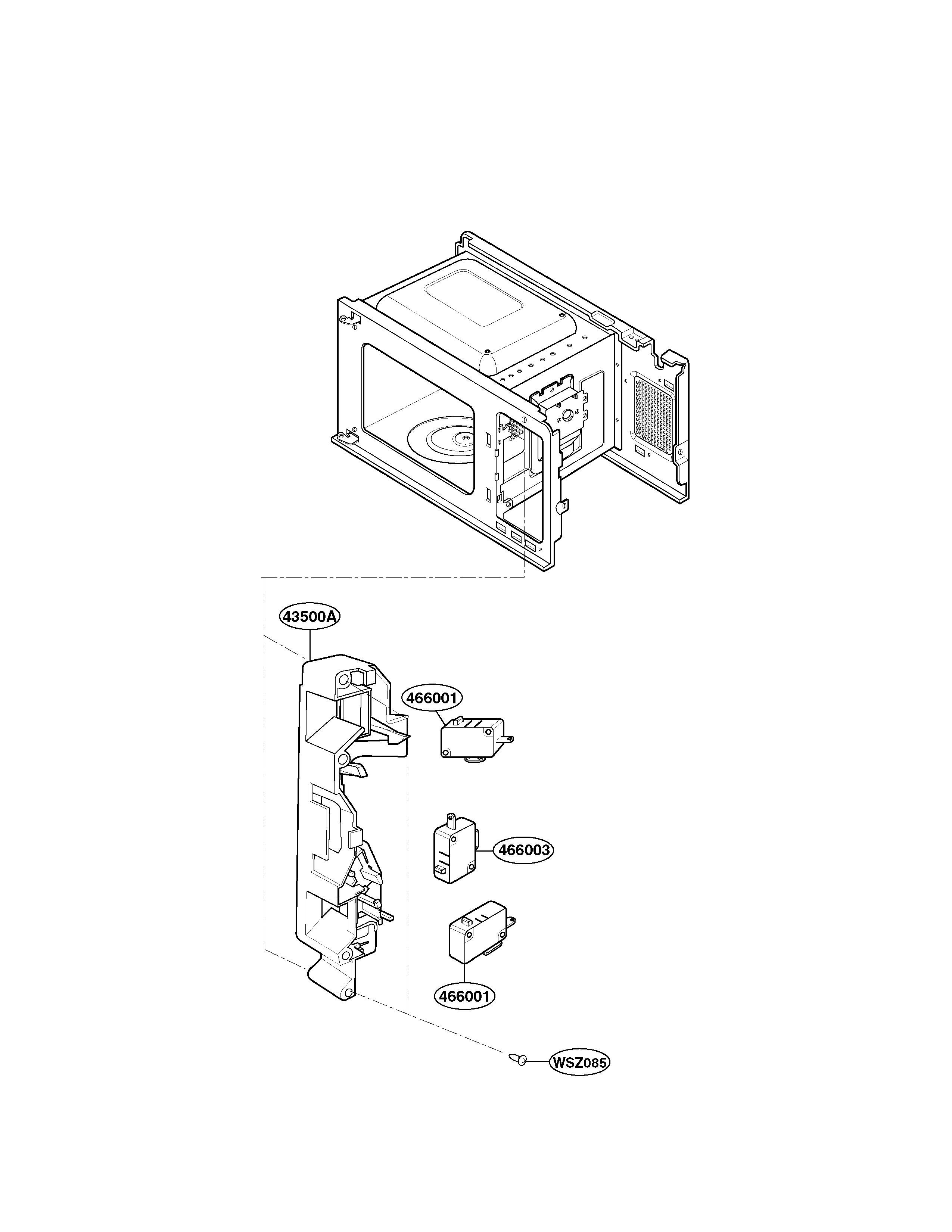

Latch board parts diagram

Microwave micro-switch

Part #6600W1K004F

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 6600W1K004F. Substitute parts can look different from the original.
BEST SELLER
$12.15 |
14% OFF Phone Price : $14.15
In Stock
Microwave Door Interlock Switch 6600W1K004E
#4660A

Latch board parts diagram

Microwave door interlock switch

Part #6600W1K004E

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 6600W1K004E. Substitute parts can look different from the original.
BEST SELLER
$12.15 |
14% OFF Phone Price : $14.15
In Stock
Microwave Screw 4B70188C
#WSZ0

Latch board parts diagram

Microwave screw

Part #4B70188C

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Screw 1TTG0402422
Microwave screw

Part #1TTG0402422

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Screw 1TTL0402418
#WTT0

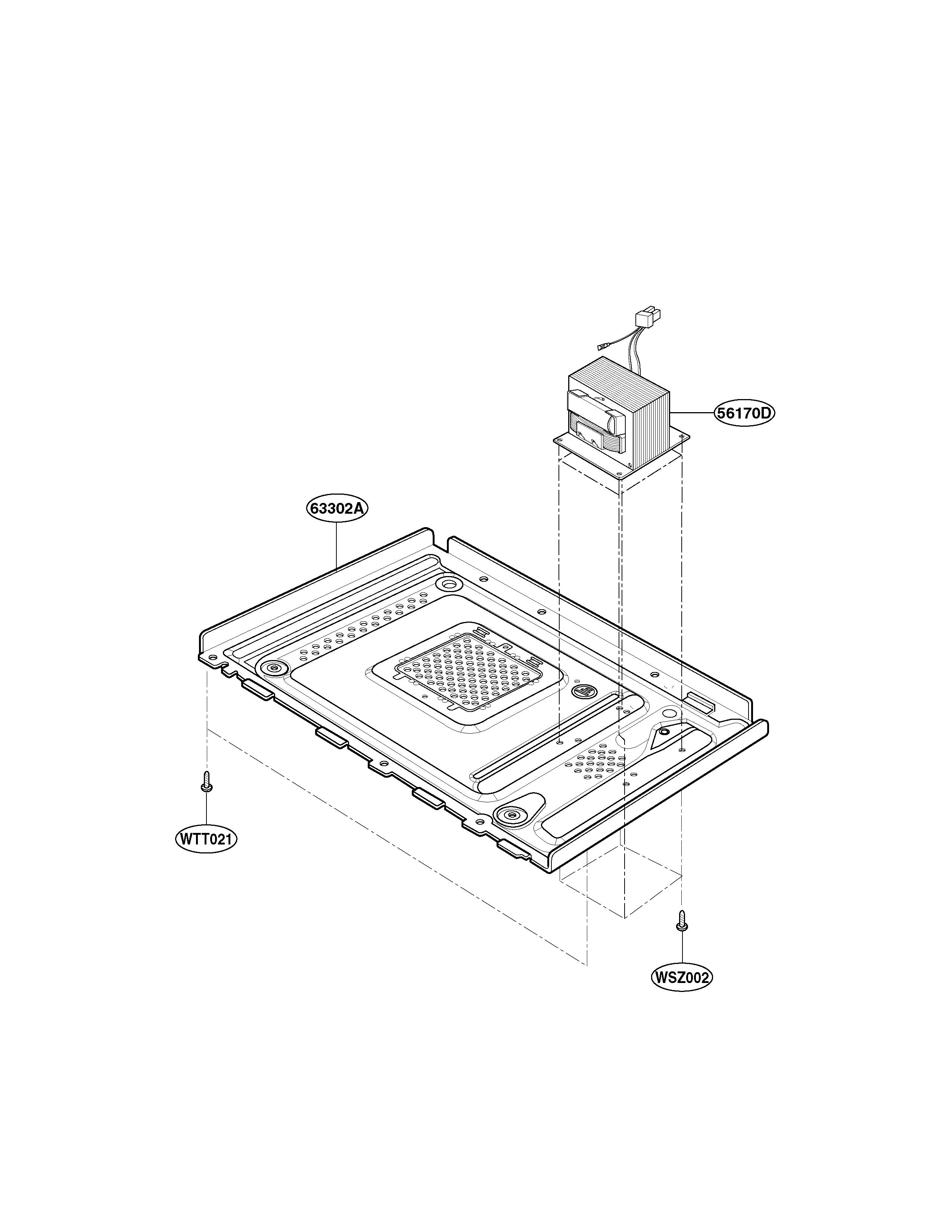

Base plate parts diagram

Screw

Part #1TTL0402418

Replaced by #1TTG0402422

?
Manufacturer substitution
This part replaces 1TTL0402418. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Screw 1TTL0402818
#WTT0

Interior parts diagram

Microwave screw

Part #1TTL0402818

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Cushion 3B72245R
#9485B

Interior parts diagram

Cushion

Part #3B72245R

$7.89
In Stock
Fan Bracket 5262W2A037C
#5526

Interior parts diagram

Fan bracket

Part #5262W2A037C

$12.54
In Stock
