Craftsman
Radial Arm Saw

Model # 315220380 Official Craftsman 10" stationary radial arm saw

Here are the diagrams and repair parts for Official Craftsman 315220380 10" stationary radial arm saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

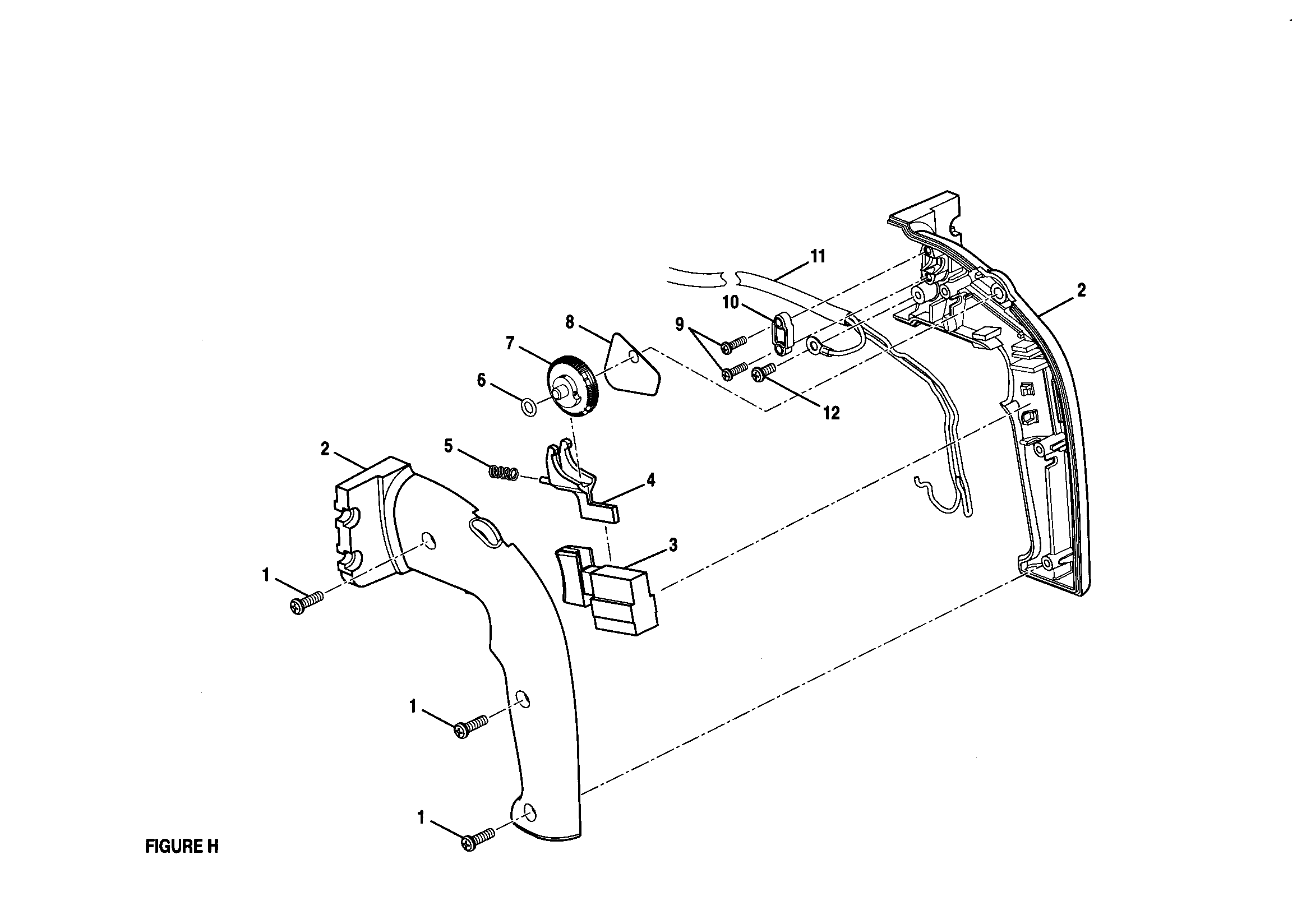

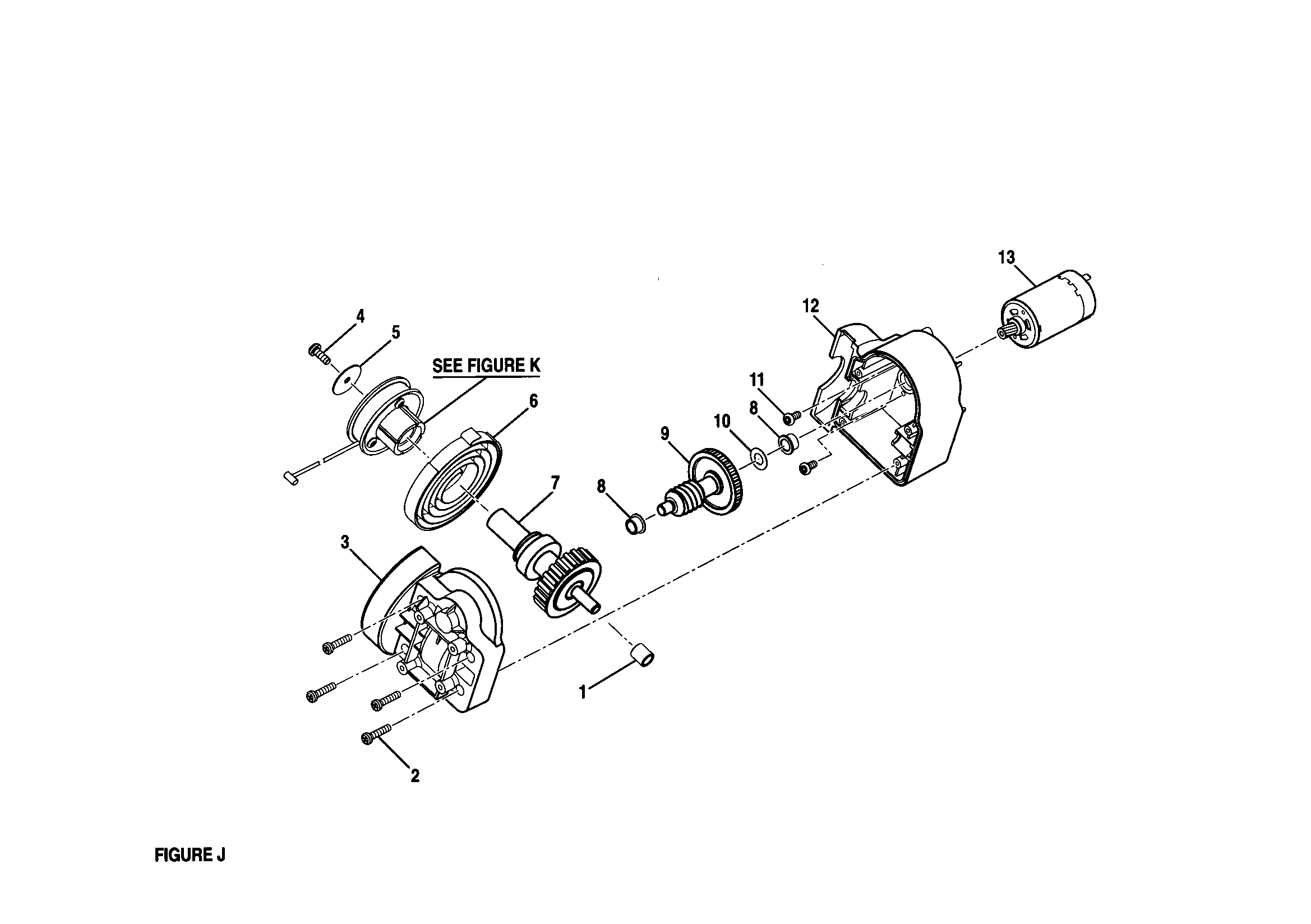

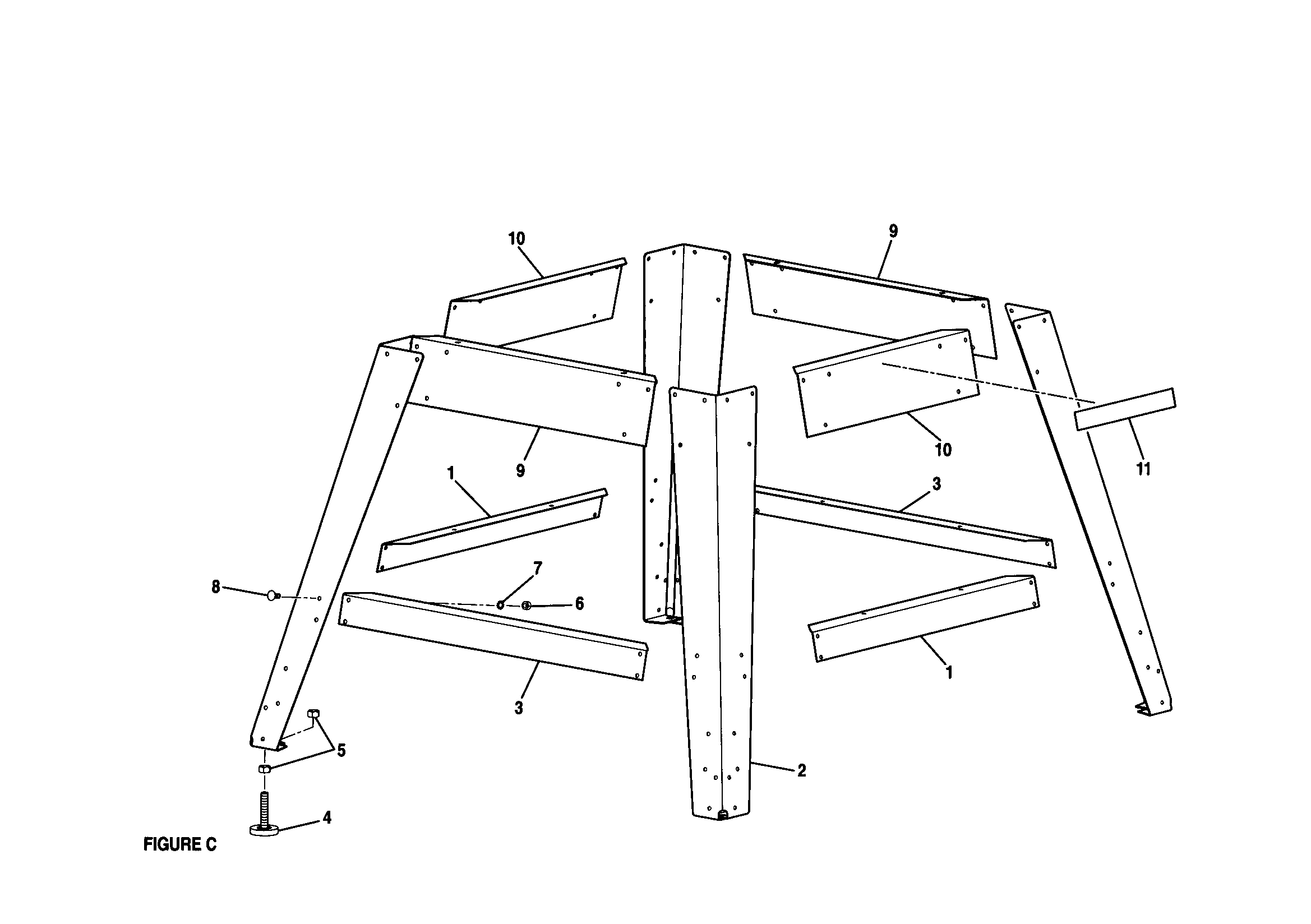

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 268 parts  |
Radial Arm Saw Shoulder Screw, 1/4-20-in 976370-002
#3

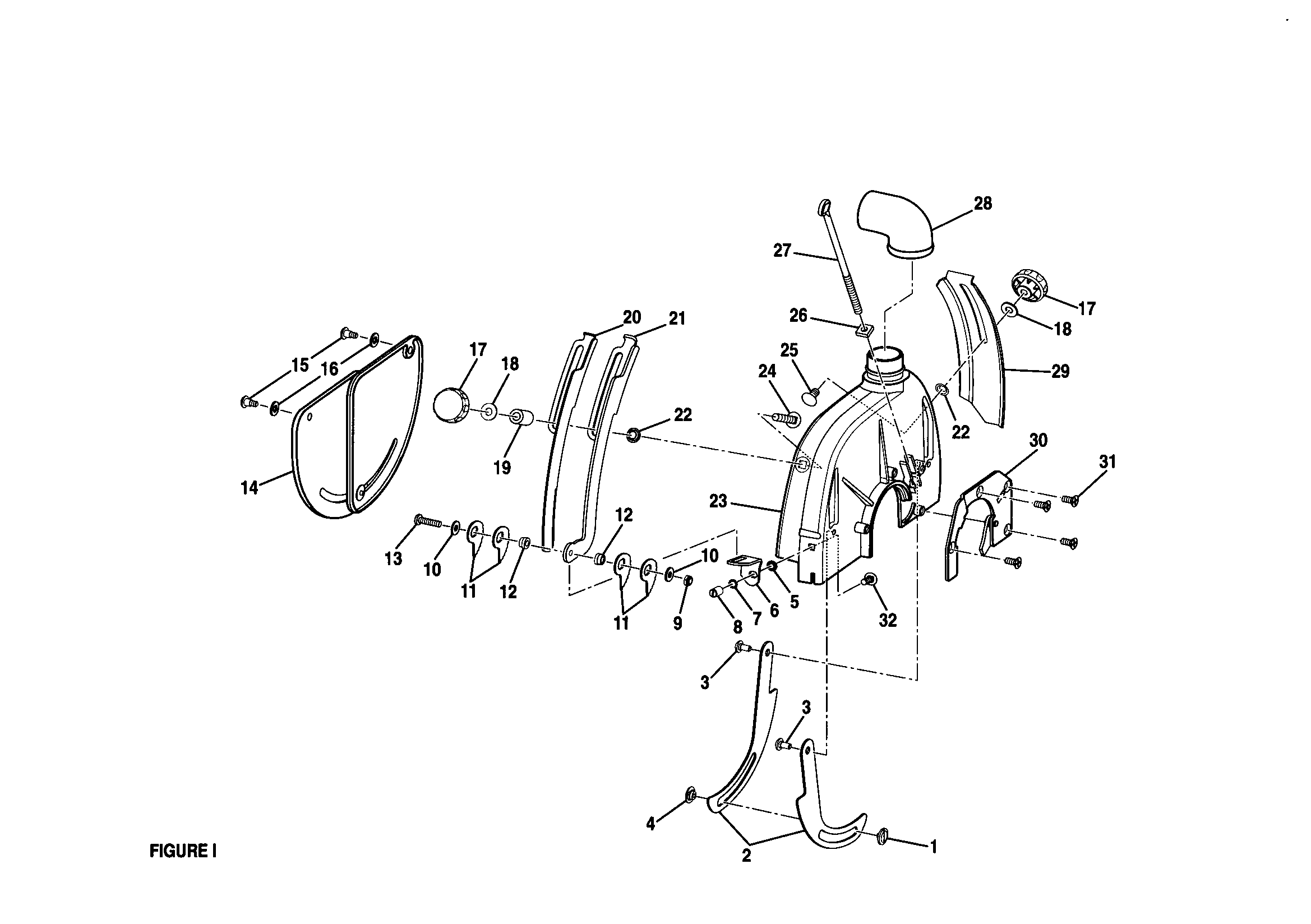

Figure i diagram

Radial arm saw shoulder screw, 1/4-20-in

Part #976370-002

The manufacturer no longer makes this part, and there's no substitute part

Label 980534-001
#24

Craftsman radial arm saw diagram

Label

Part #980534-001

The manufacturer no longer makes this part, and there's no substitute part

Lever 976827-001
#20

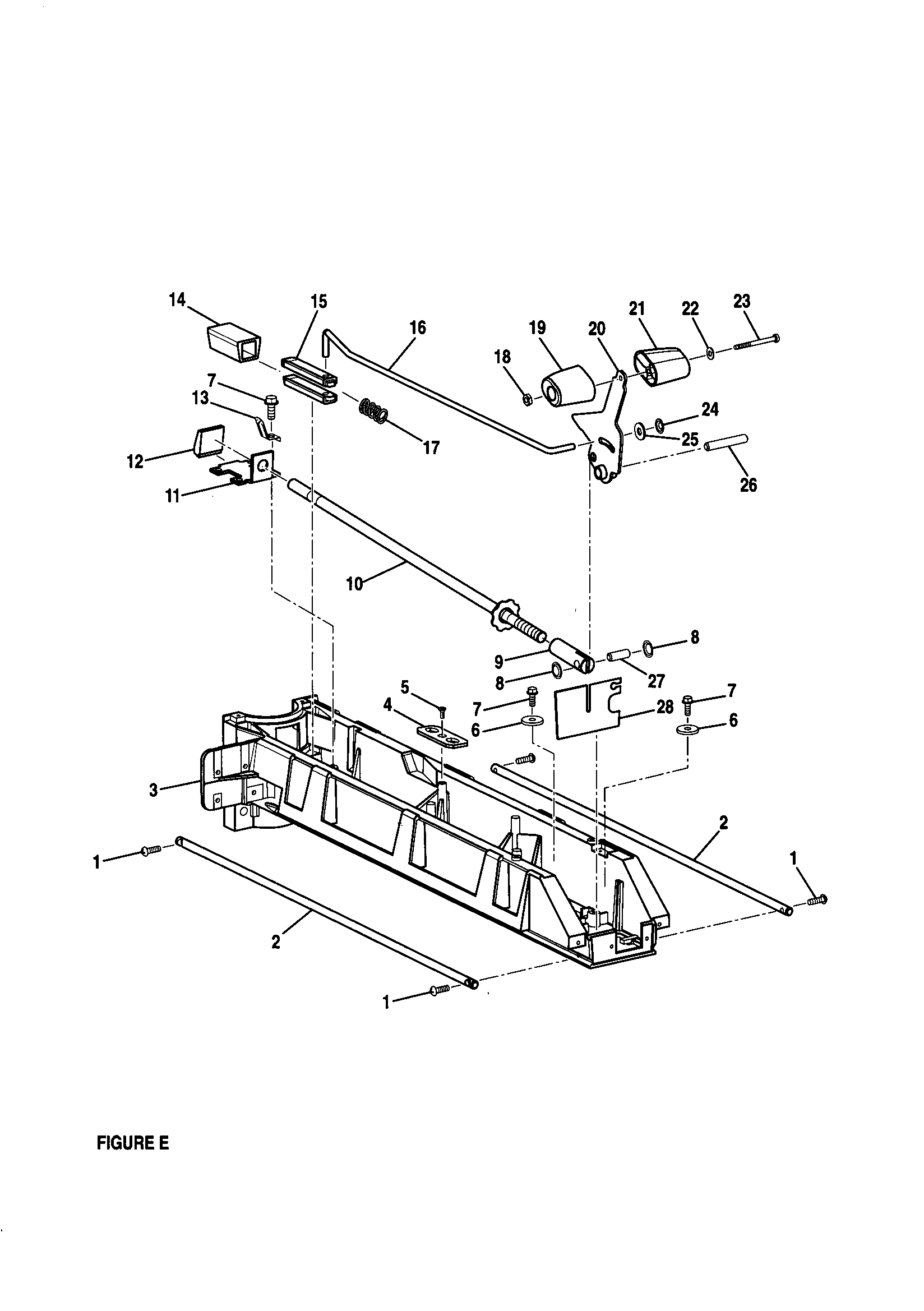

Figure e diagram

Lever

Part #976827-001

The manufacturer no longer makes this part, and there's no substitute part

Retaning Ext 623111-001
#31

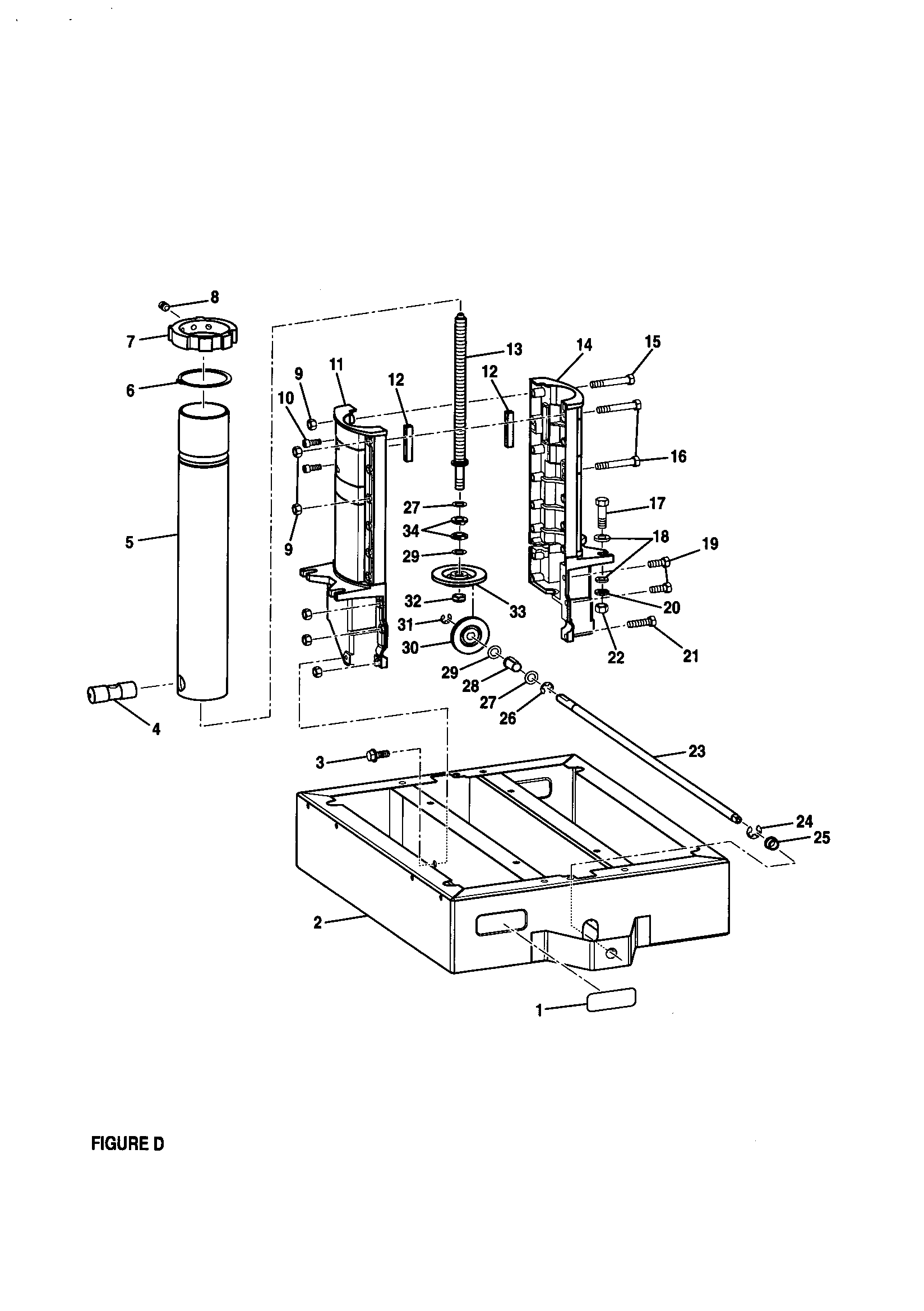

Figure d diagram

Retaning ext

Part #623111-001

The manufacturer no longer makes this part, and there's no substitute part

Label 980554-001
#20

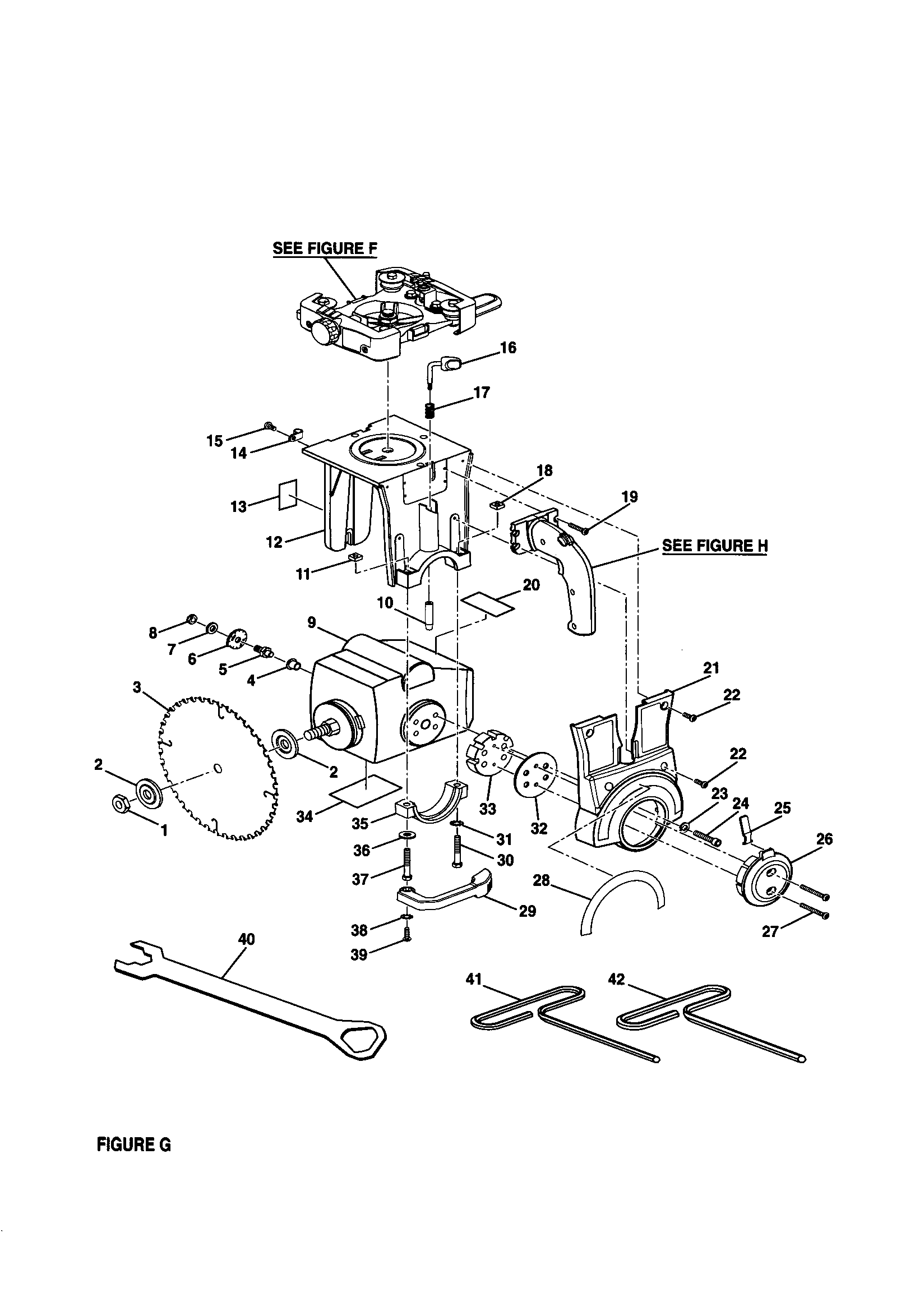

Figure g diagram

Label

Part #980554-001

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 989594-003
#20

Figure b diagram

Set screw

Part #989594-003

The manufacturer no longer makes this part, and there's no substitute part

Index Rod 976315-001
#16

Figure e diagram

Index rod

Part #976315-001

The manufacturer no longer makes this part, and there's no substitute part

Housing 976347-002
#28

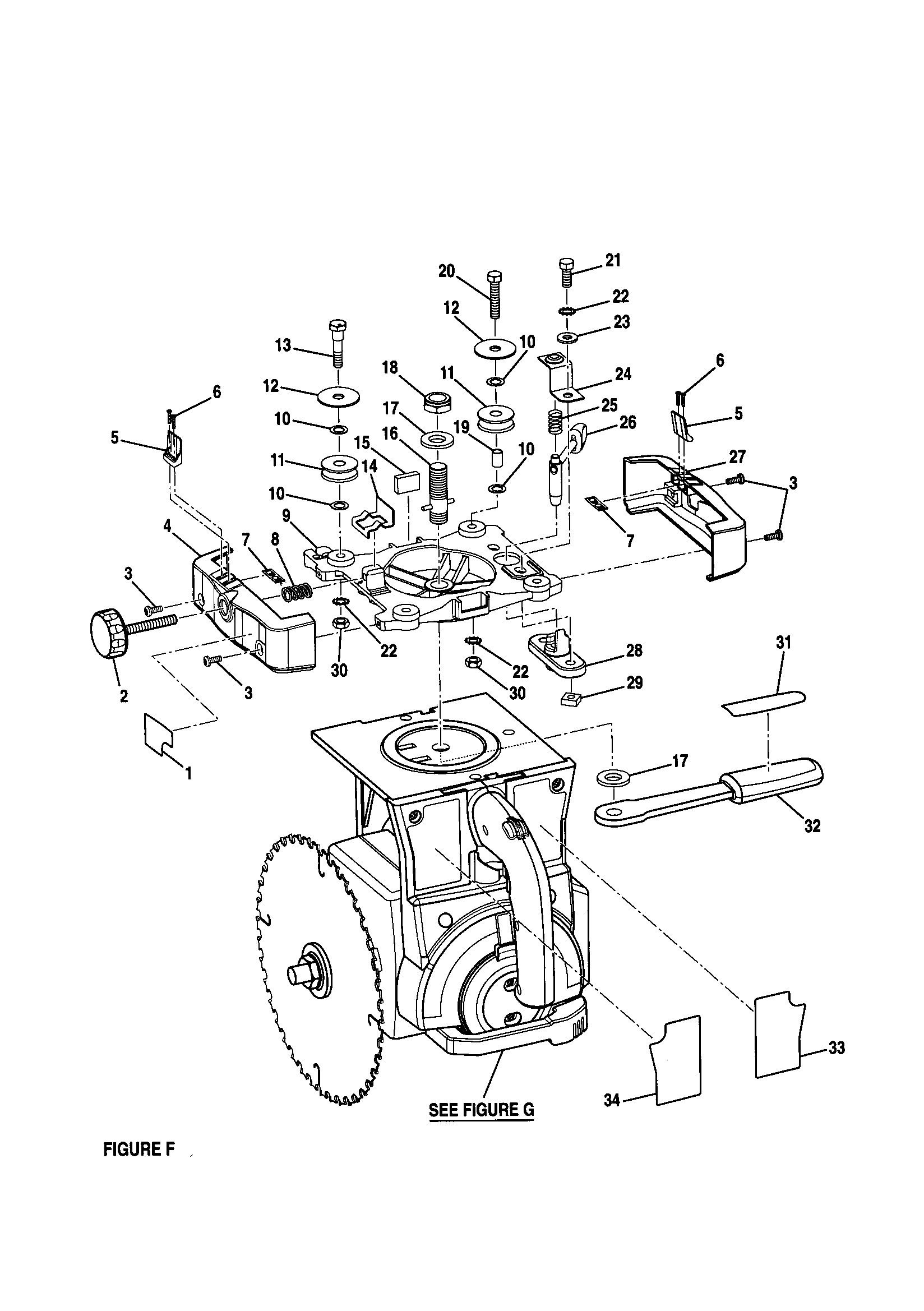

Figure f diagram

Housing

Part #976347-002

The manufacturer no longer makes this part, and there's no substitute part

Screw 8-32 X 3/8 In. Pan Hd.) (standard Hardware- May Be Purchased Locally)(6) 967703-005
#1

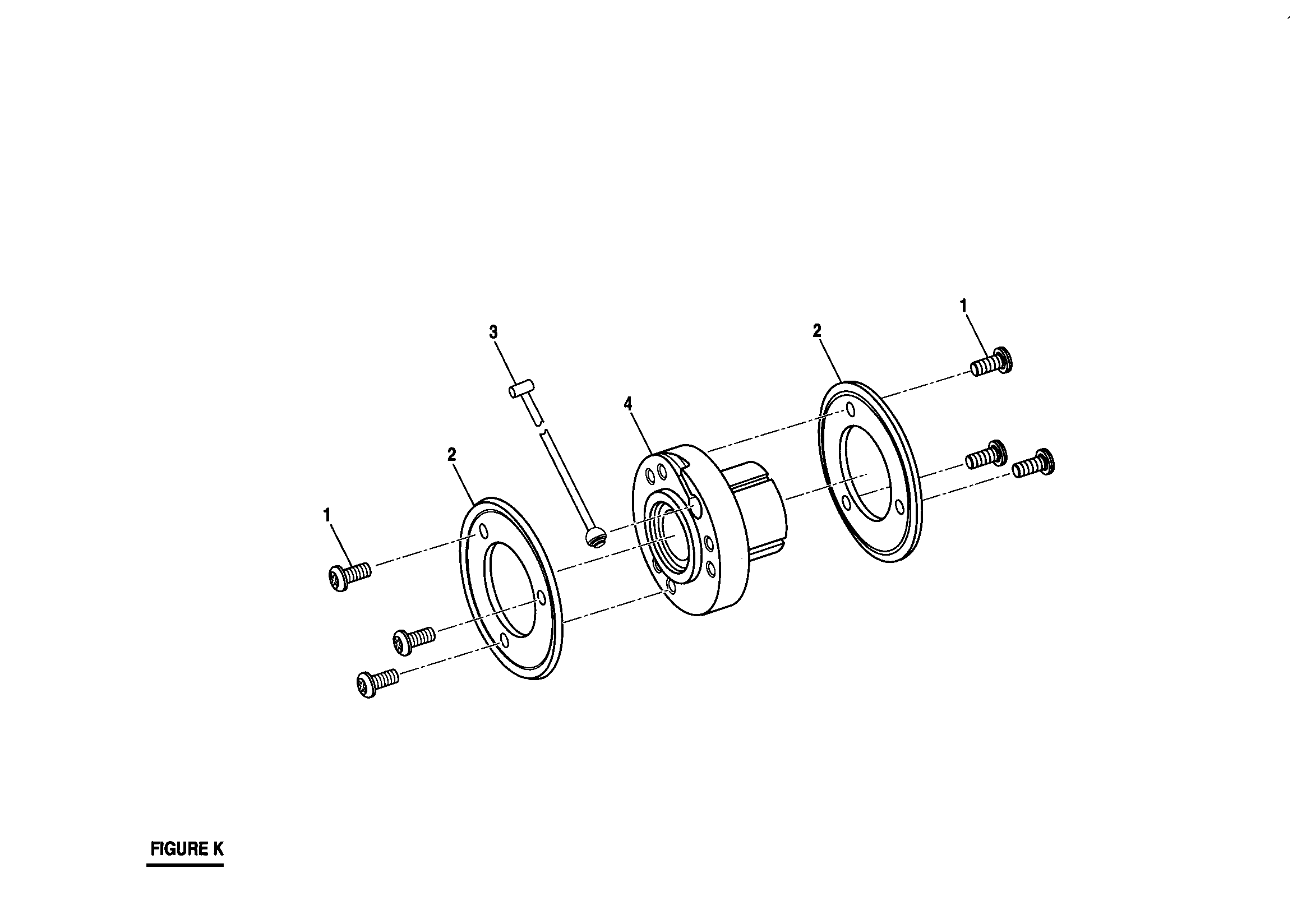

Figure k diagram

Screw 8-32 x 3/8 in. pan hd.) (standard hardware- may be purchased locally)(6)

Part #967703-005

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Hand Wheel Handle 977229-001
#28

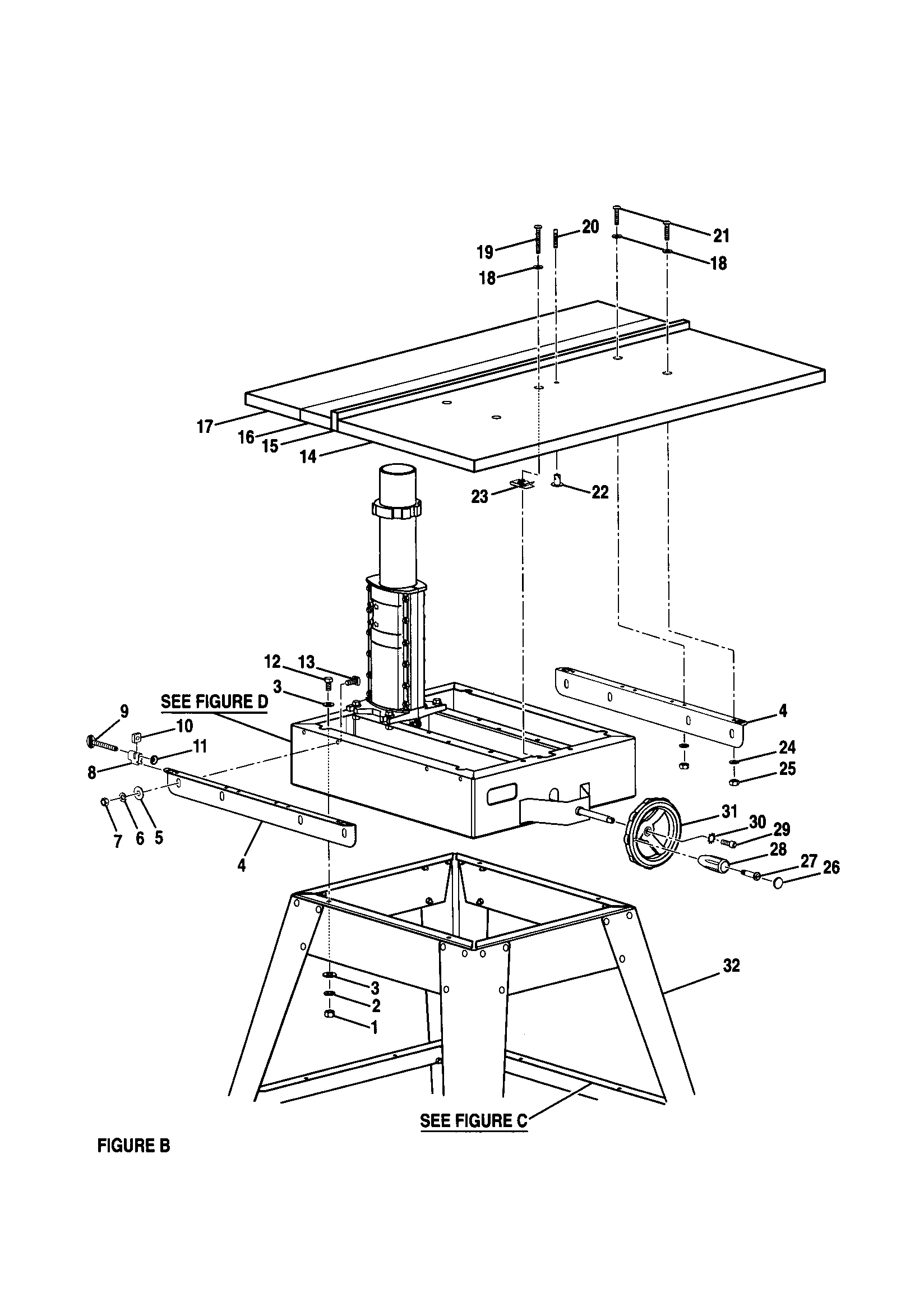

Figure b diagram

Table saw hand wheel handle

Part #977229-001

The manufacturer no longer makes this part, and there's no substitute part
