Countertop Microwave

Model # NB160/P7766525M Official Imperial microwave

Here are the diagrams and repair parts for Official Imperial NB160-P7766525M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

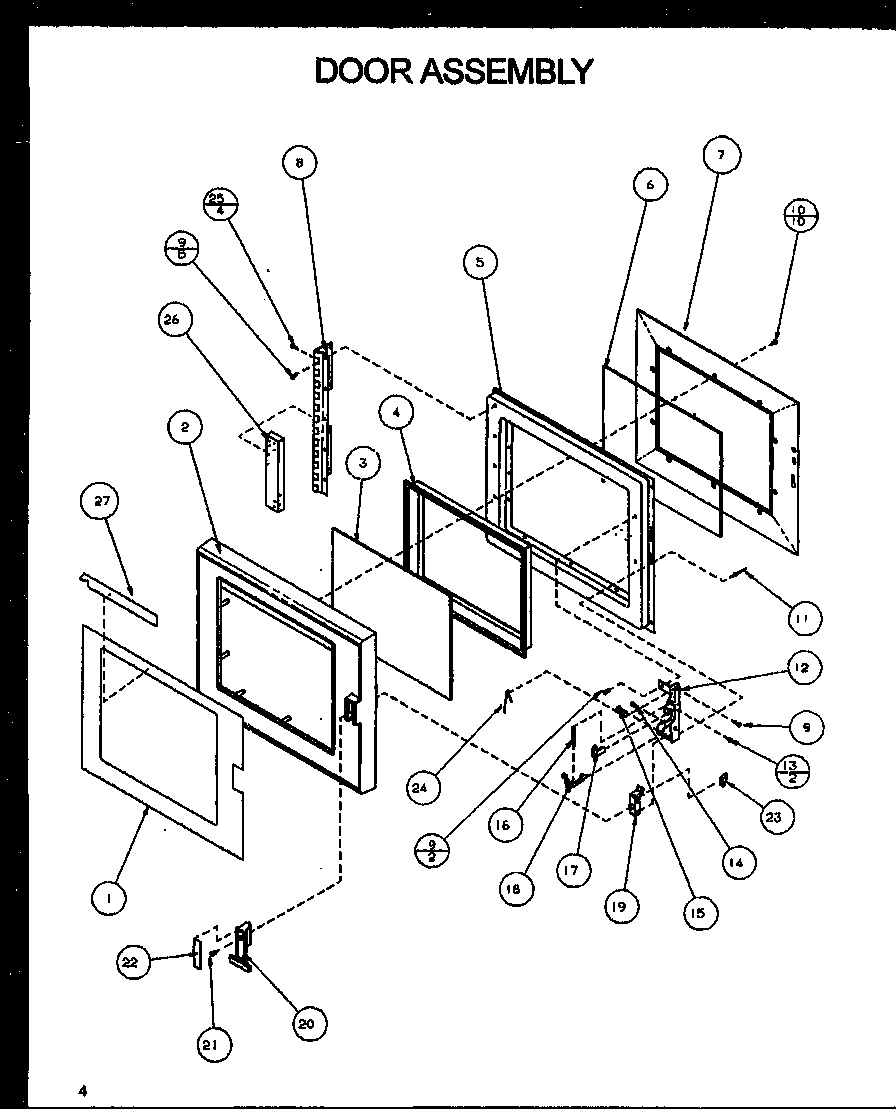

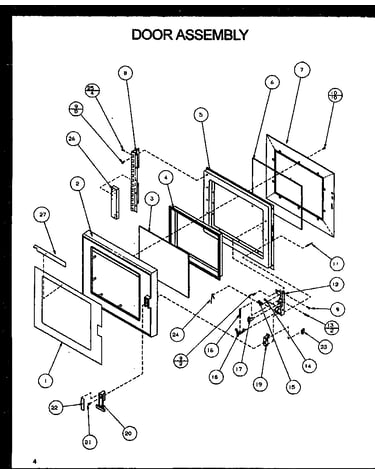

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Fuse M0805101
#15A

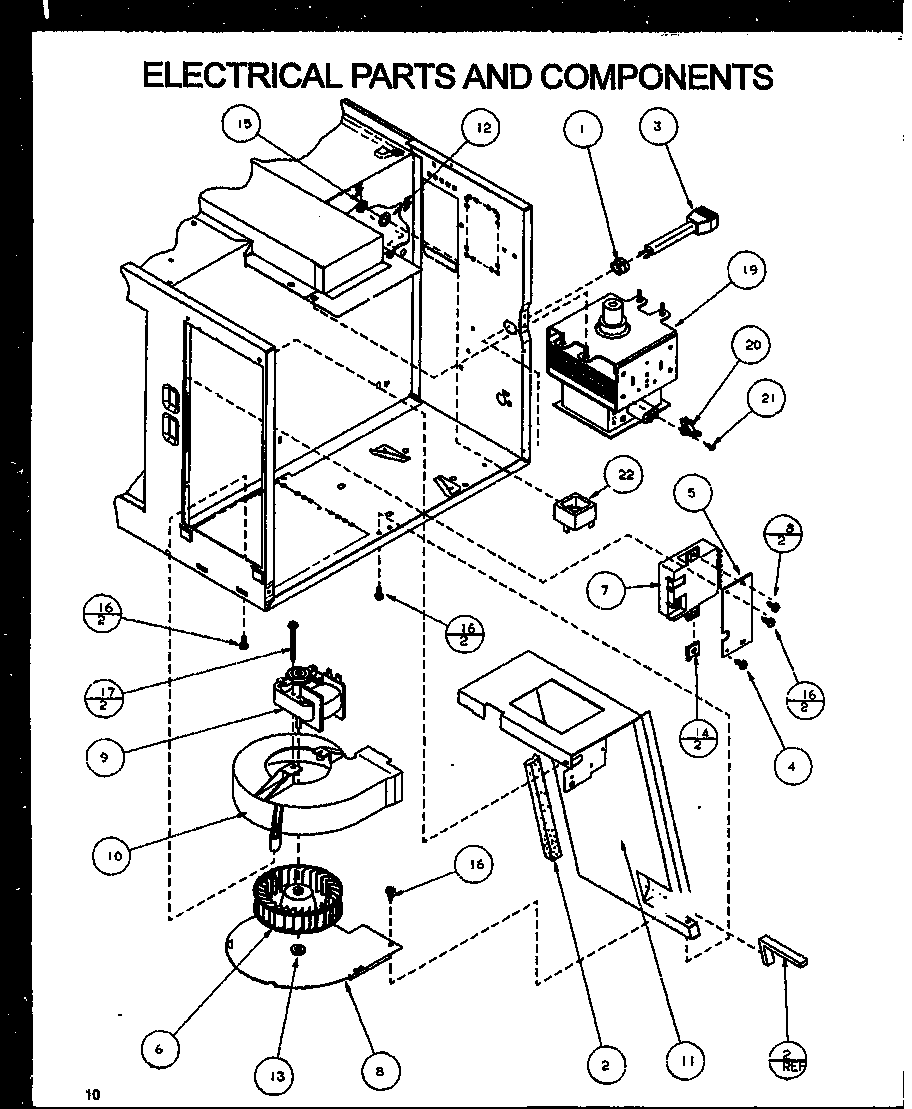

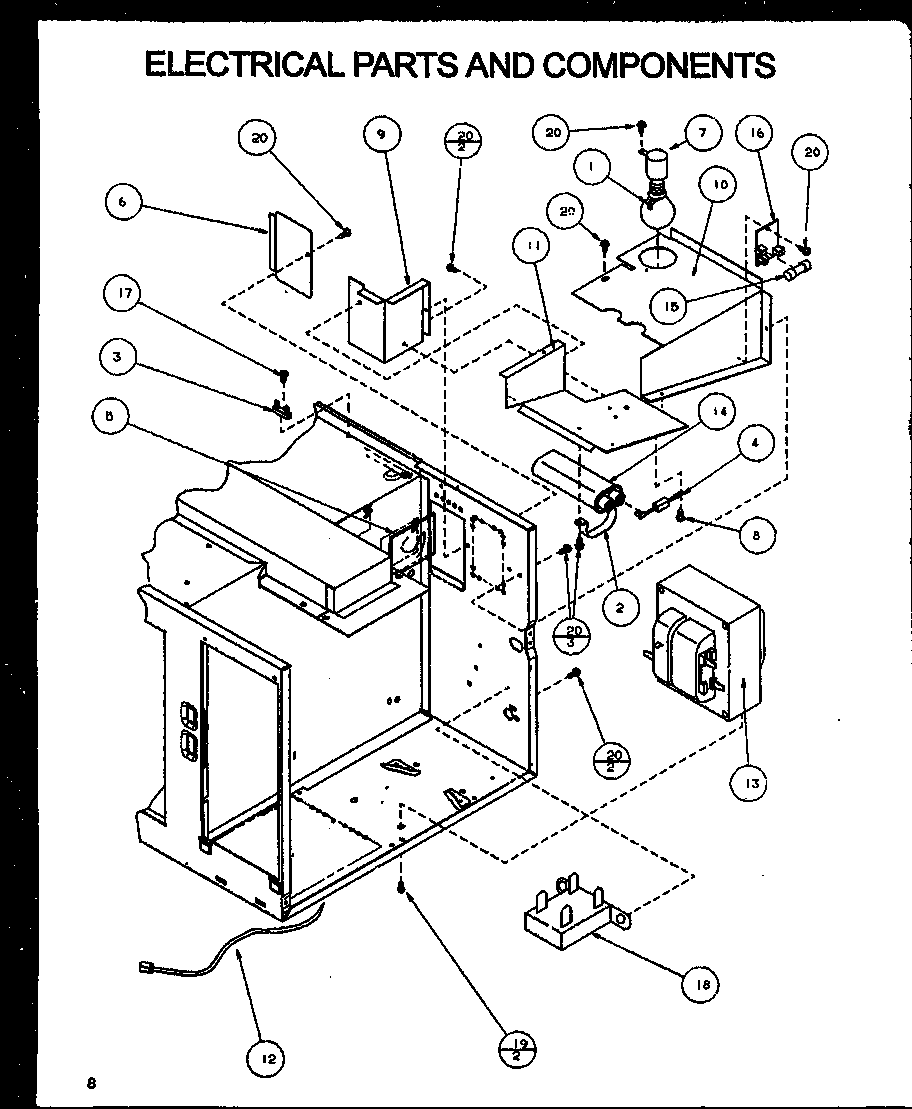

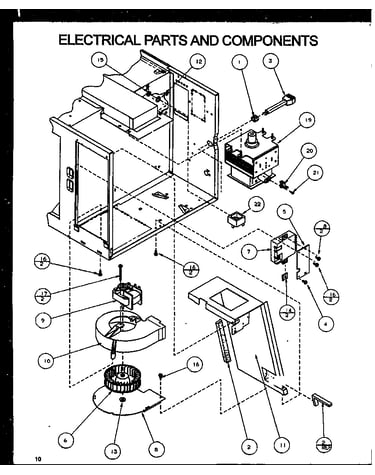

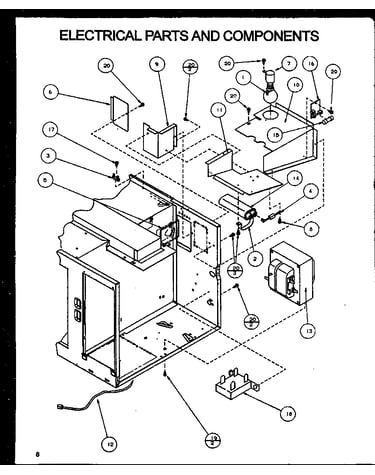

Electrical parts and components diagram

Fuse

Part #M0805101

Replaced by #WPM0805101

?
Manufacturer substitution
This part replaces M0805101. Substitute parts can look different from the original.
$6.68 |
13% OFF Phone Price : $7.68
In Stock
Screw M0234422
#17

Electrical parts and components diagram

Screw

Part #M0234422

This item is not returnable
$4.22
In Stock
Screw M0216703
#16

Electrical parts andcomponents diagram

Screw

Part #M0216703

This item is not returnable
$3.40
In Stock
Air Duct, Bottom D7772202
#11

Electrical parts and components diagram

Air duct, bottom

Part #D7772202

The manufacturer no longer makes this part, and there's no substitute part

Probe, Receptacle B8355401
#22

Electrical parts andcomponents diagram

Probe, receptacle

Part #B8355401

The manufacturer no longer makes this part, and there's no substitute part

Transformer D7686903
#13A

Electrical parts and components diagram

Transformer

Part #D7686903

The manufacturer no longer makes this part, and there's no substitute part

Transformer, Filament C8807812
#18

Electrical parts and components diagram

Transformer, filament

Part #C8807812

The manufacturer no longer makes this part, and there's no substitute part

Clip, Push M0118903
#13

Electrical parts andcomponents diagram

Clip, push

Part #M0118903

The manufacturer no longer makes this part, and there's no substitute part

Gasket A3263907
#2

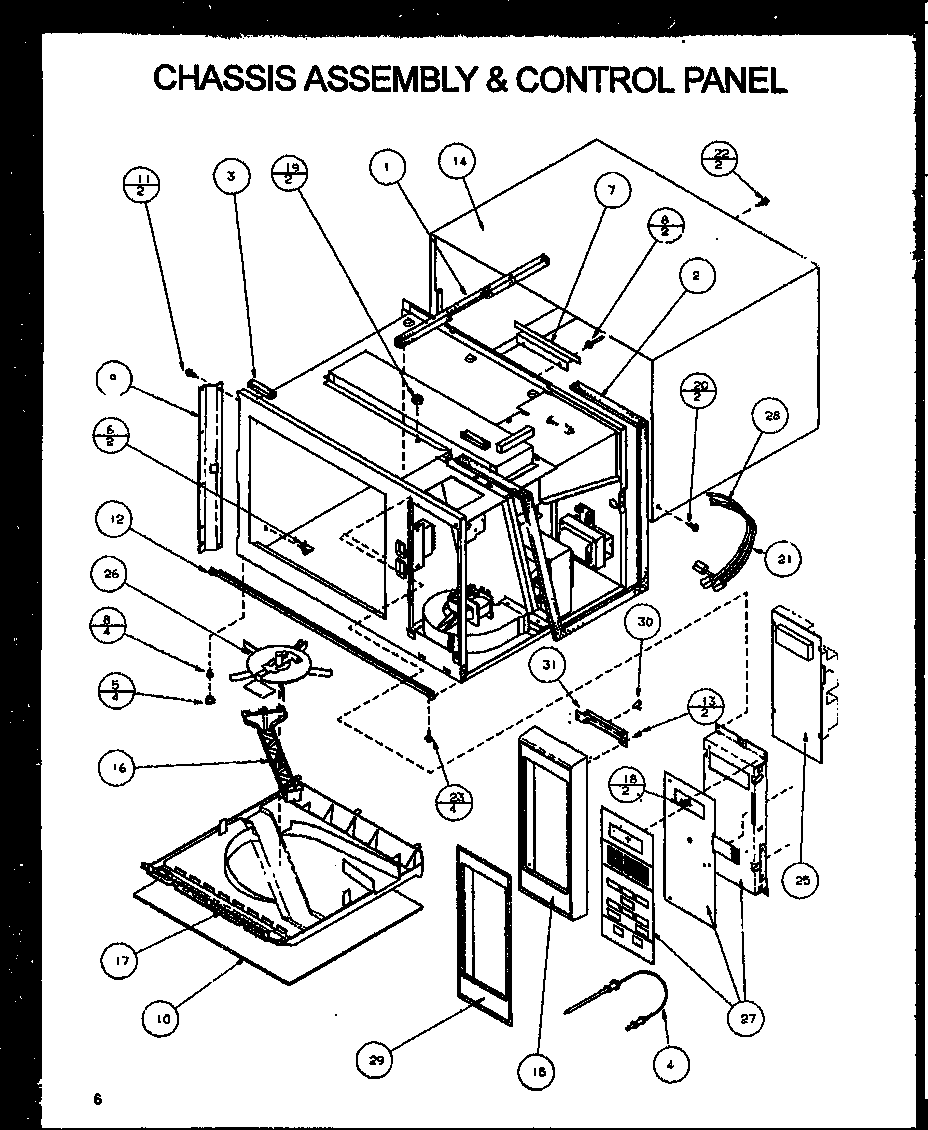

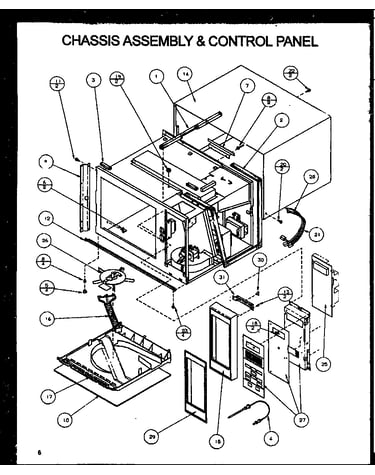

Chassis assembly & control panel diagram

Gasket

Part #A3263907

The manufacturer no longer makes this part, and there's no substitute part

Temperature Probe C8821504
#4

Chassis assembly & control panel diagram

Temperature probe

Part #C8821504

The manufacturer no longer makes this part, and there's no substitute part
