Model # 315212350 Official Craftsman 12" compound miter saw

Here are the diagrams and repair parts for Official Craftsman 315212350 12" compound miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

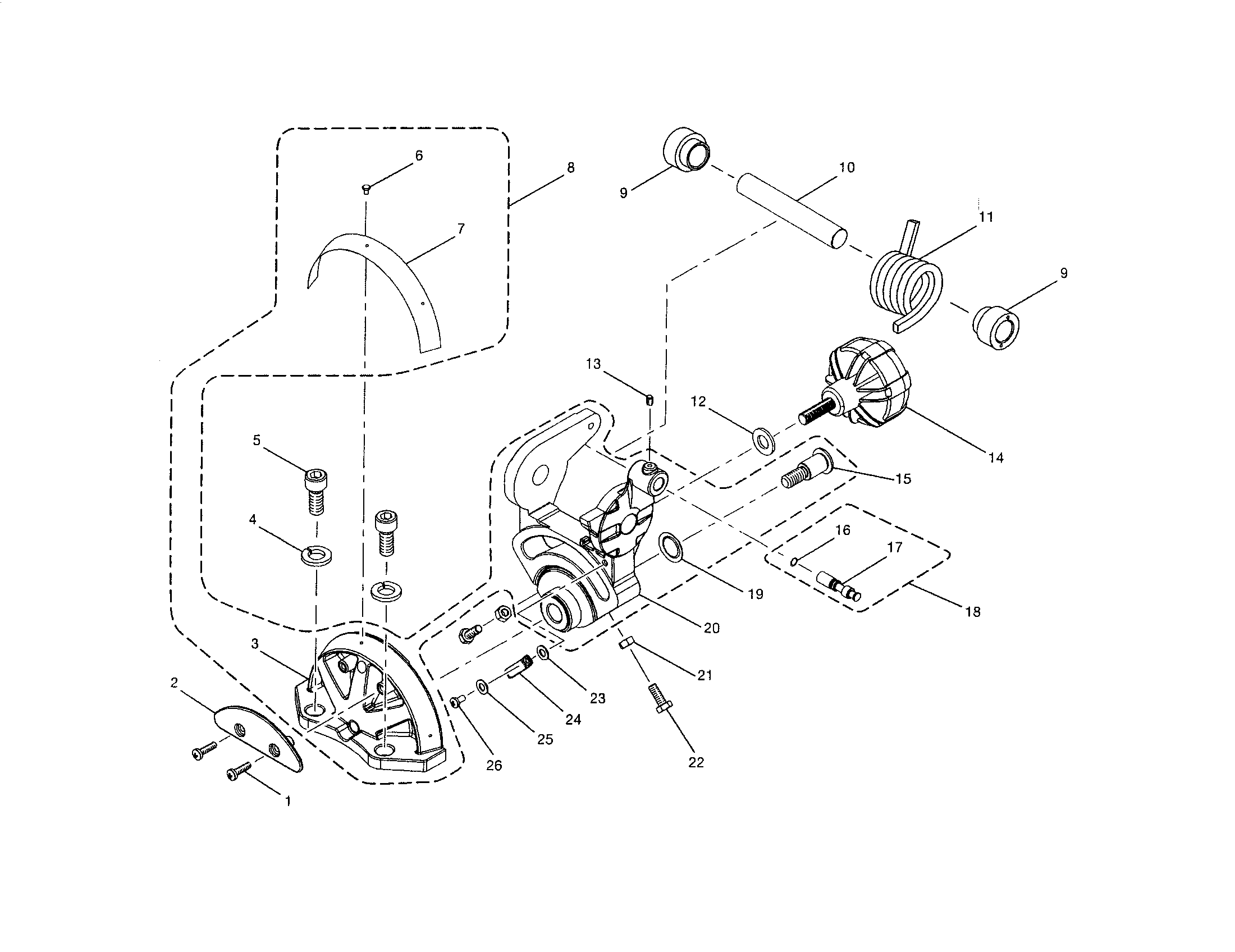

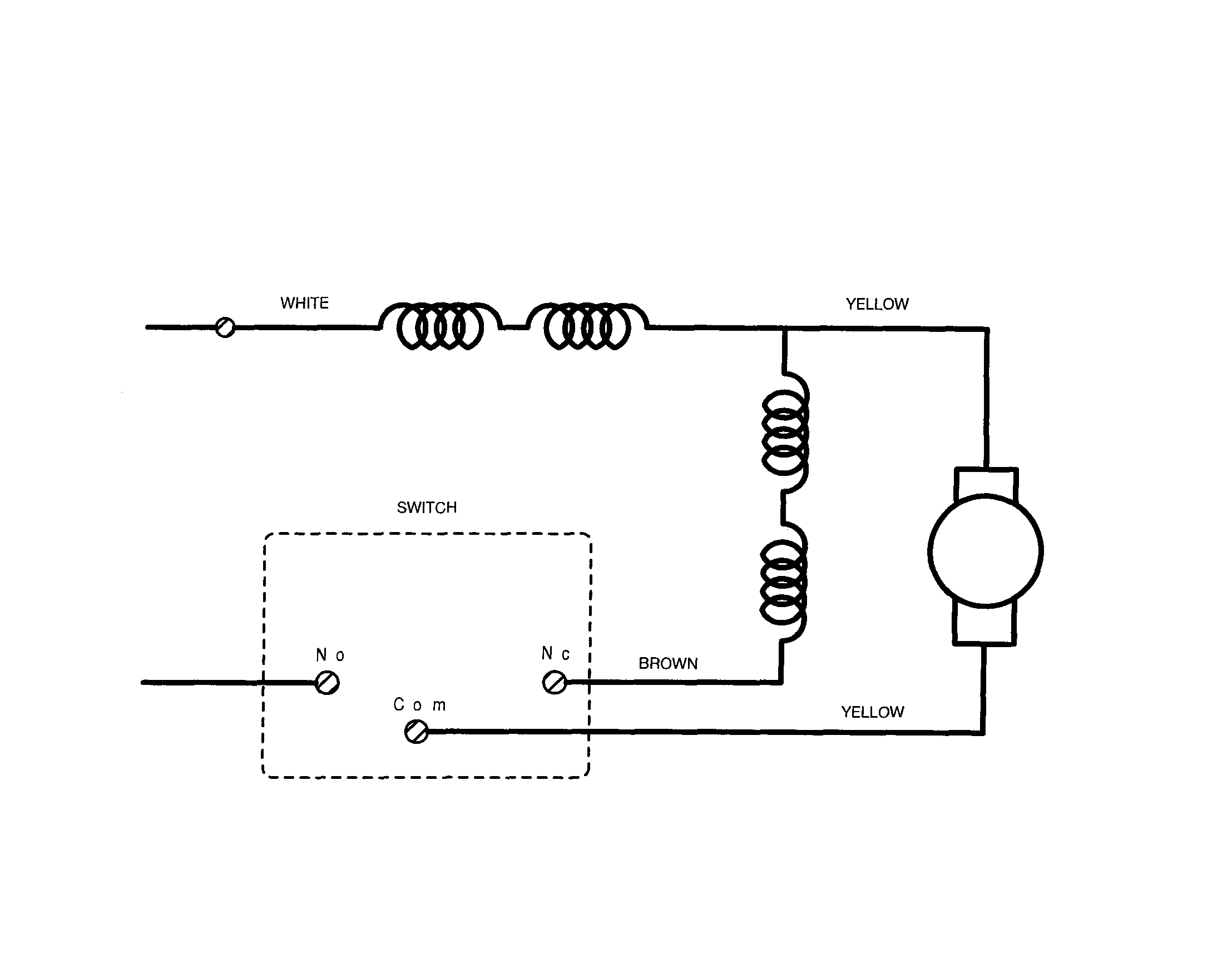

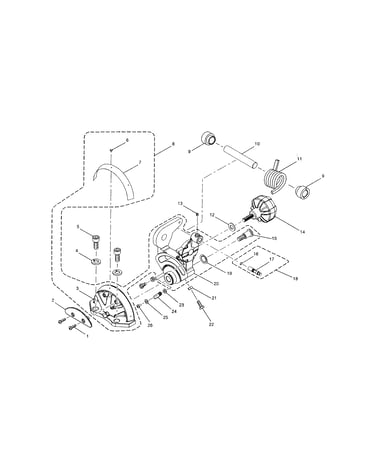

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 213 parts  |
Clampplate 503511000
#70

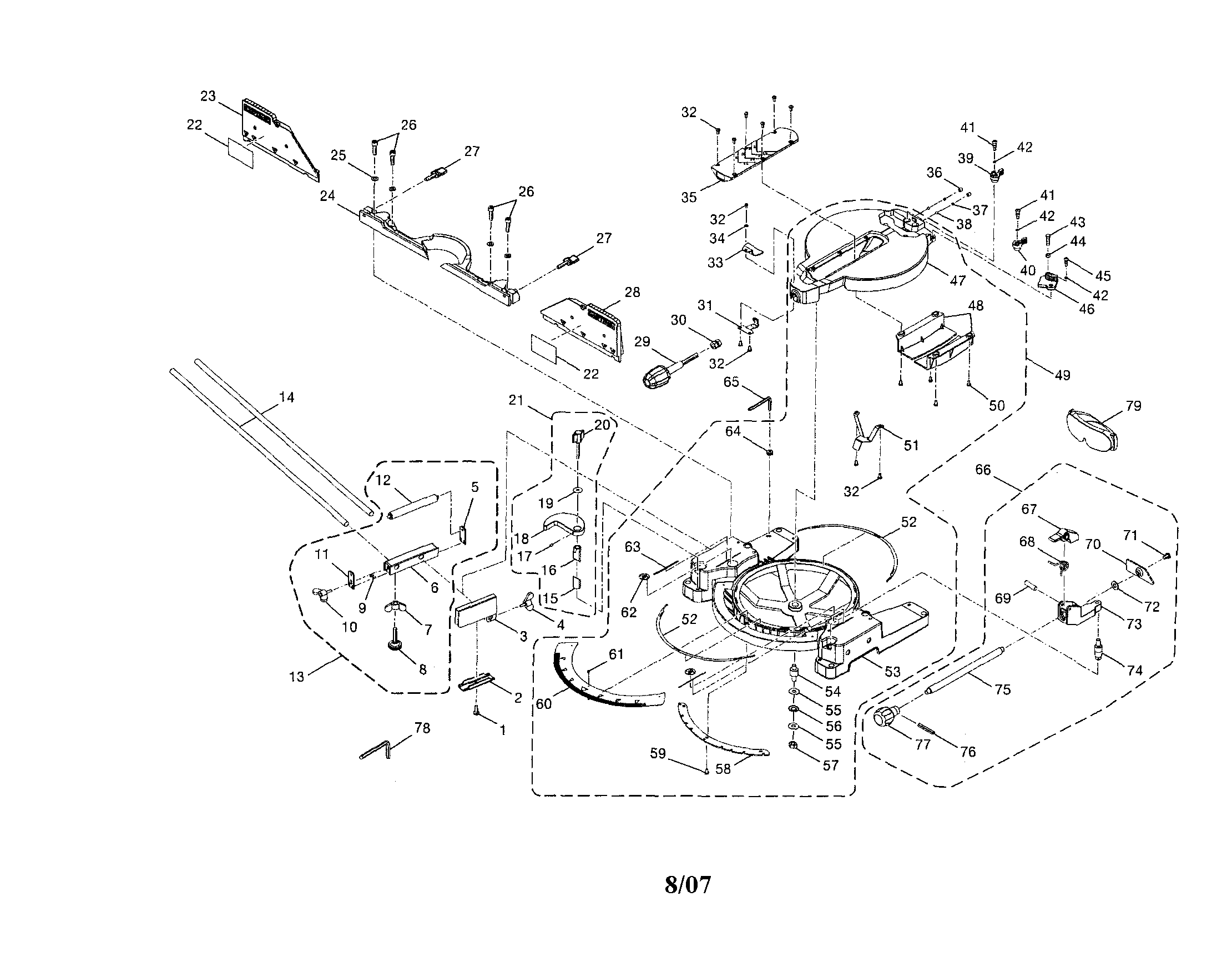

Base/table/work clamp diagram

Clampplate

Part #503511000

The manufacturer no longer makes this part, and there's no substitute part

Bolt (m8 X 20 Mm Soc. Hd (4)(standard Hardware Item-may Be Purchased Locally) A07103080200
#26

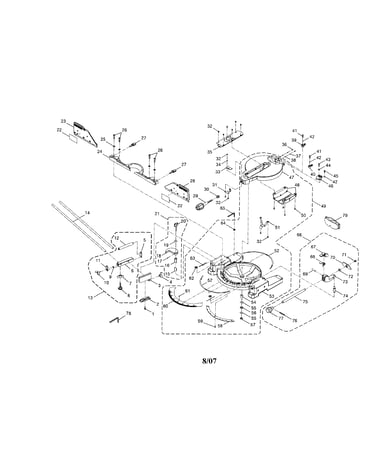

Base/table/work clamp diagram

Bolt (m8 x 20 mm soc. hd (4)(standard hardware item-may be purchased locally)

Part #A07103080200

The manufacturer no longer makes this part, and there's no substitute part

Screw A10003050120
Screw

Part #A10003050120

The manufacturer no longer makes this part, and there's no substitute part

Brush Set 588006100
#15

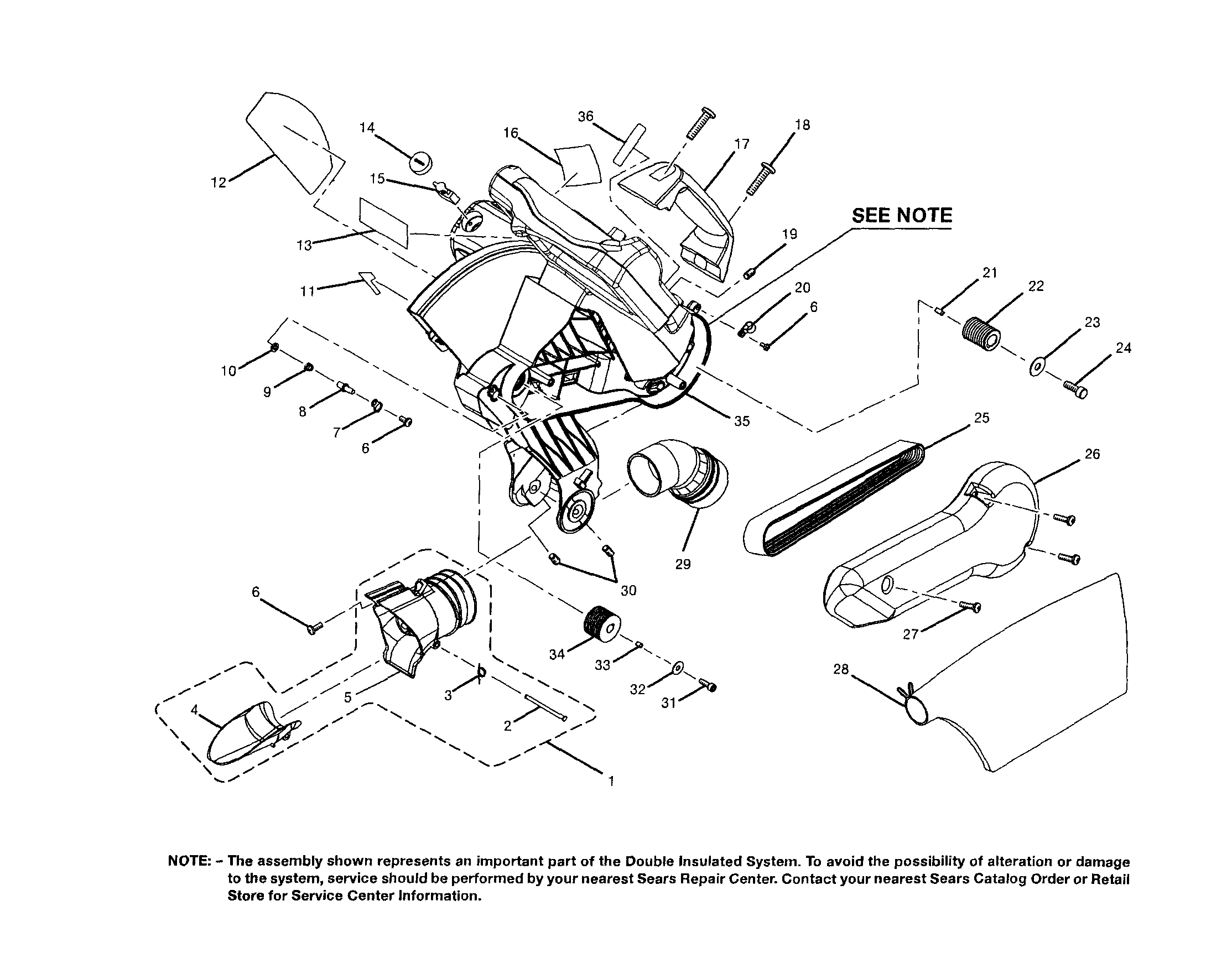

Dust chute/motor diagram

Brush set

Part #588006100

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut (m6) Std840610 (standard Hardware Item-may Be Purchased Locallay)(available From Div. 98-source 980.00) A30007006360
#44

Base/table/work clamp diagram

Hex nut (m6) std840610 (standard hardware item-may be purchased locallay)(available from div. 98-source 980.00)

Part #A30007006360

The manufacturer no longer makes this part, and there's no substitute part

Upper Arm S56500400
#24

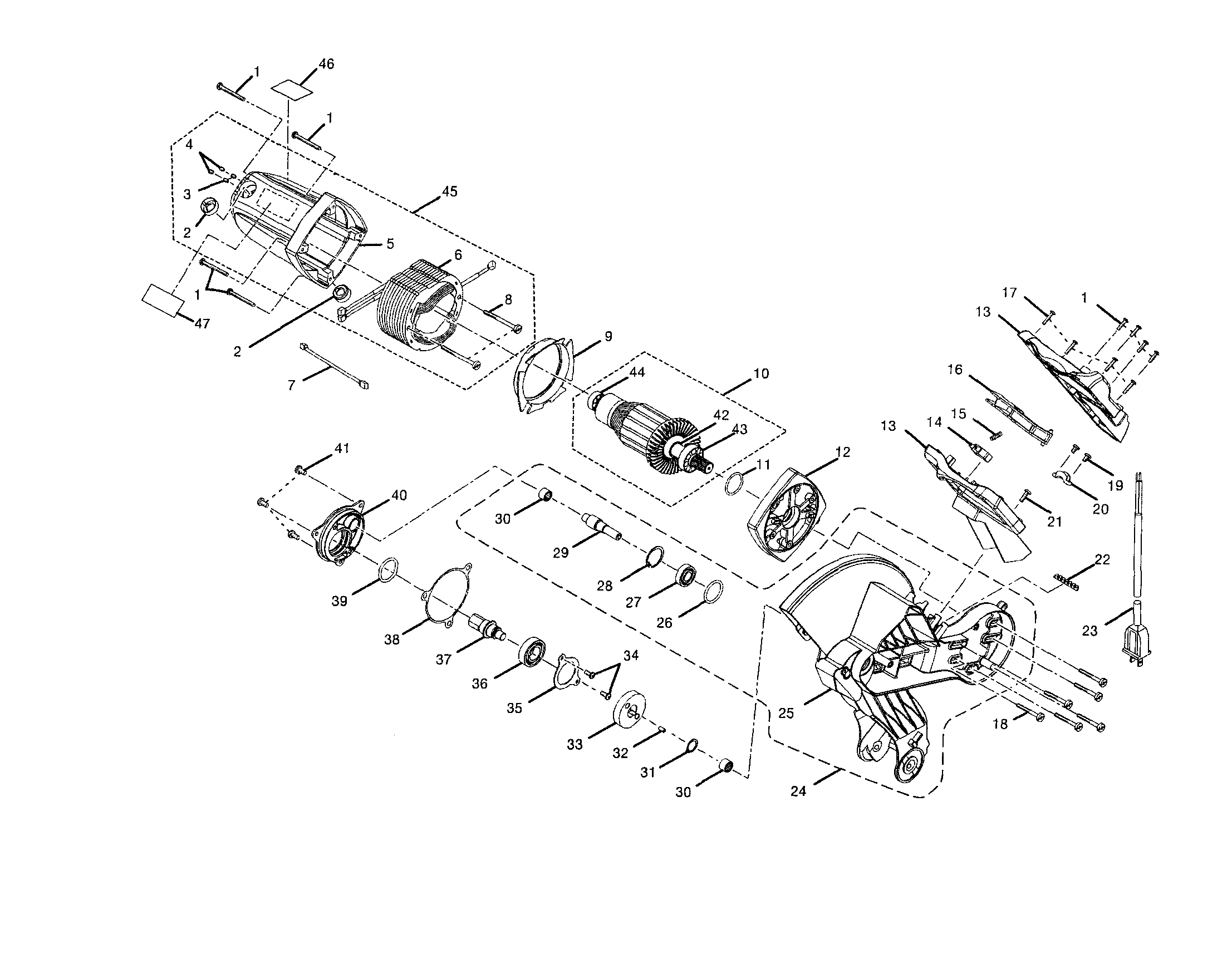

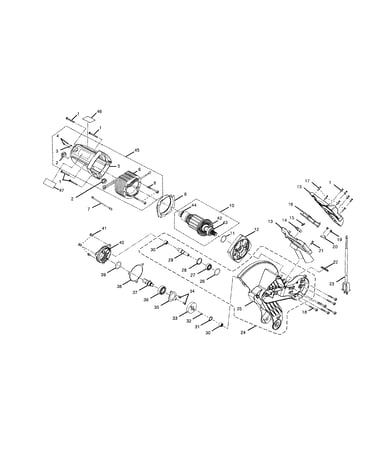

Upper arm/shaft/motor housing diagram

Upper arm

Part #S56500400

The manufacturer no longer makes this part, and there's no substitute part

Screw 545509000
#8

Base/table/work clamp diagram

Screw

Part #545509000

The manufacturer no longer makes this part, and there's no substitute part

Dust Chute 565A05020
#1

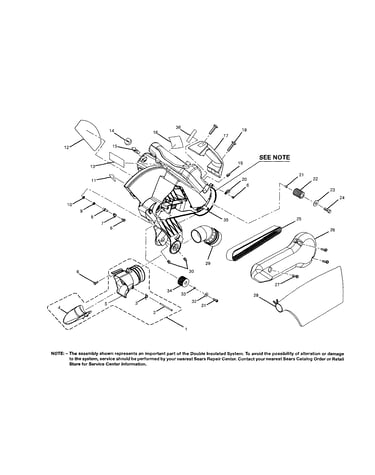

Dust chute/motor diagram

Dust chute

Part #565A05020

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Laser Guide 555511000
#30

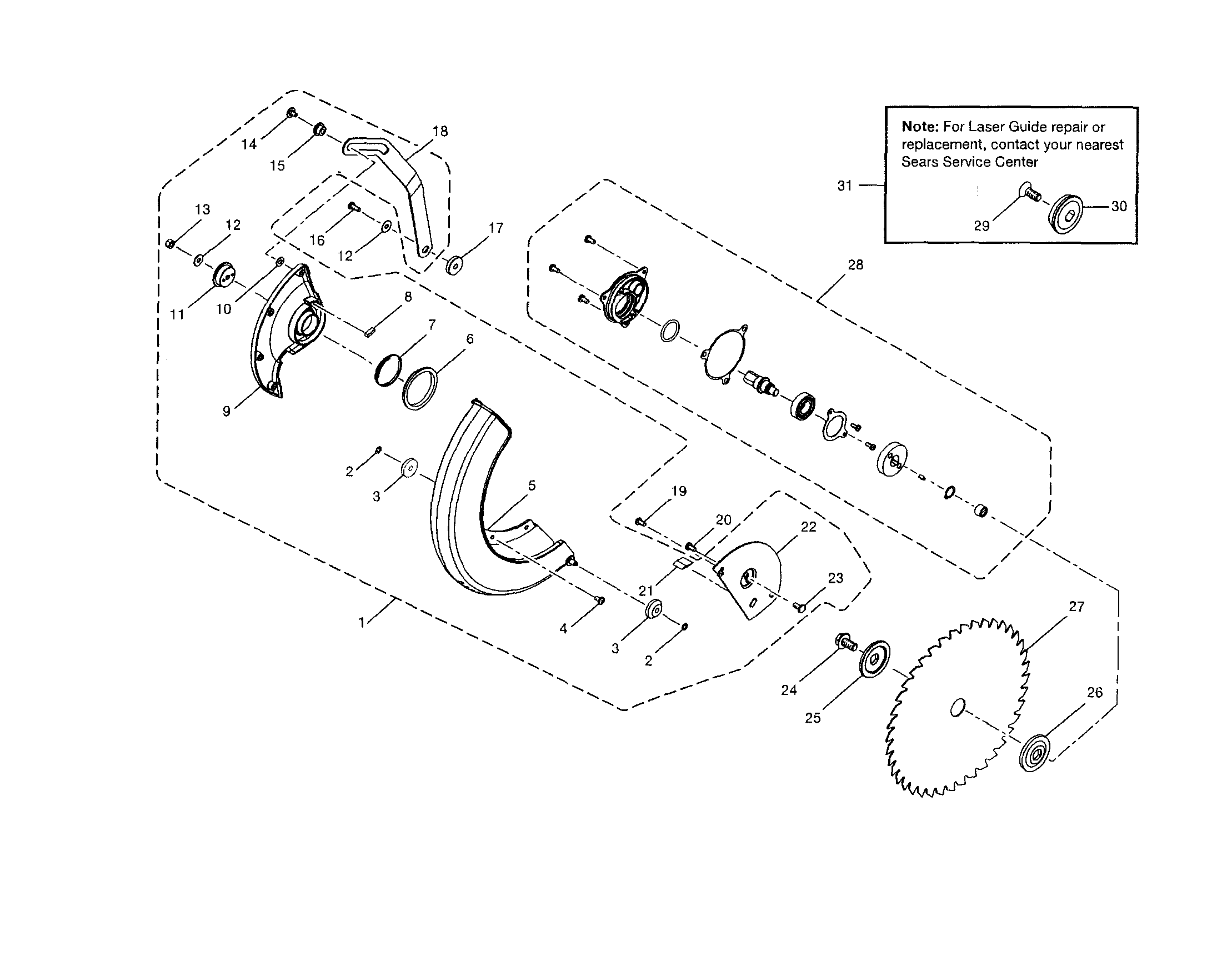

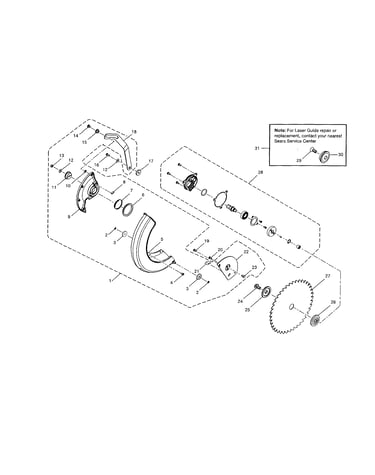

Lower blade guard/arbor diagram

Miter saw laser guide

Part #555511000

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Screw, M5 X 50 A10003050100
Miter saw screw, m5 x 50

Part #A10003050100

The manufacturer no longer makes this part, and there's no substitute part
