Model # R-21HV Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-21HV microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

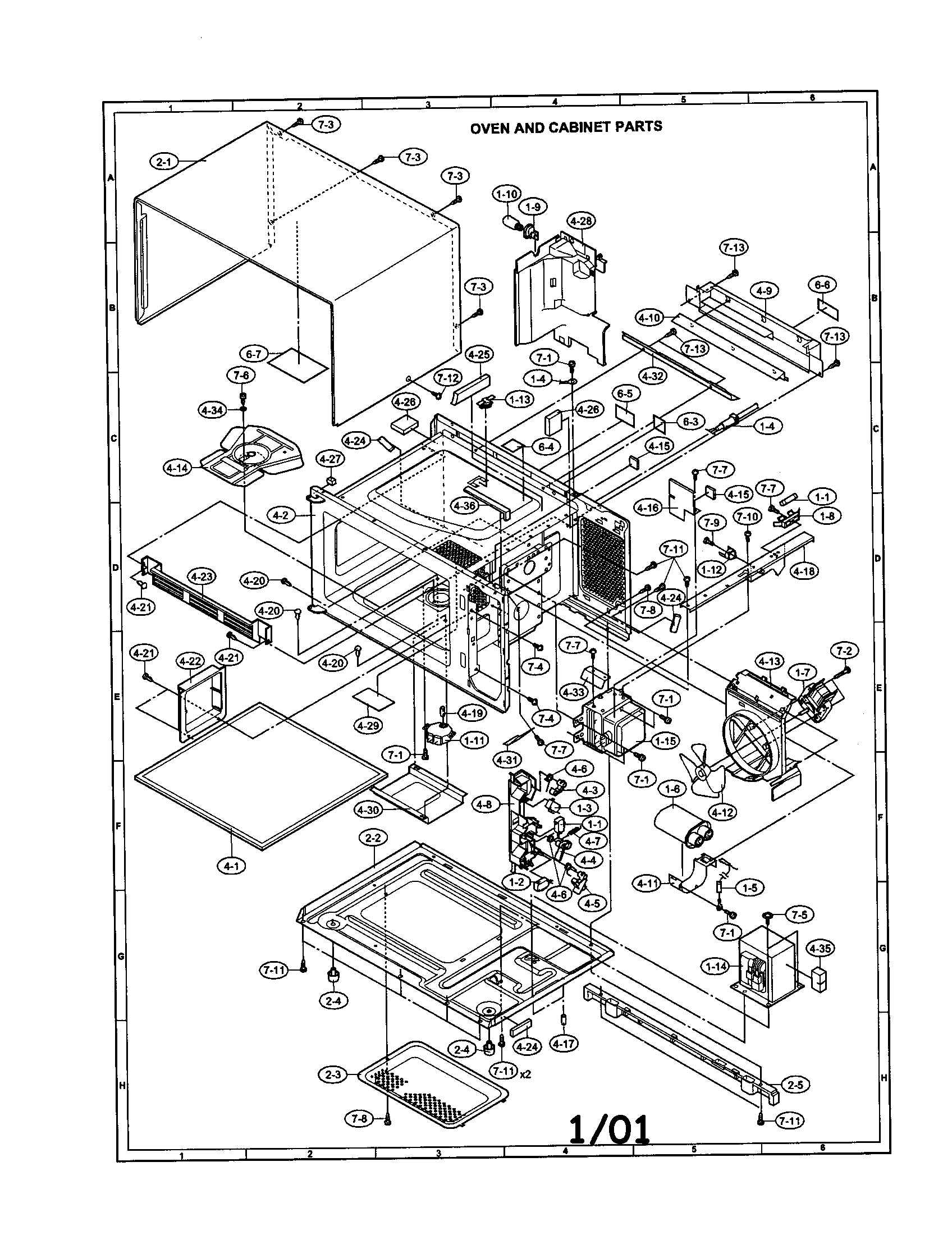

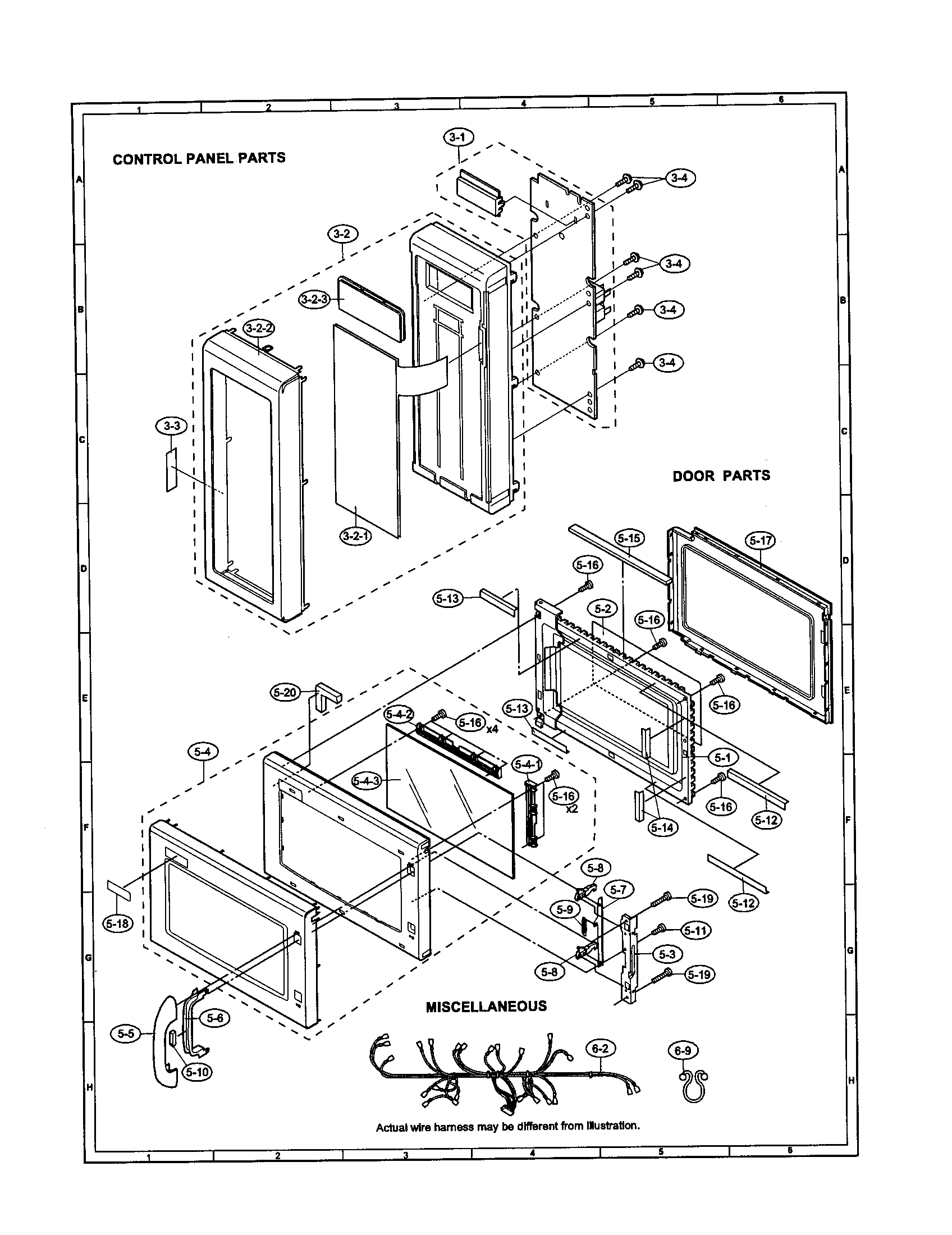

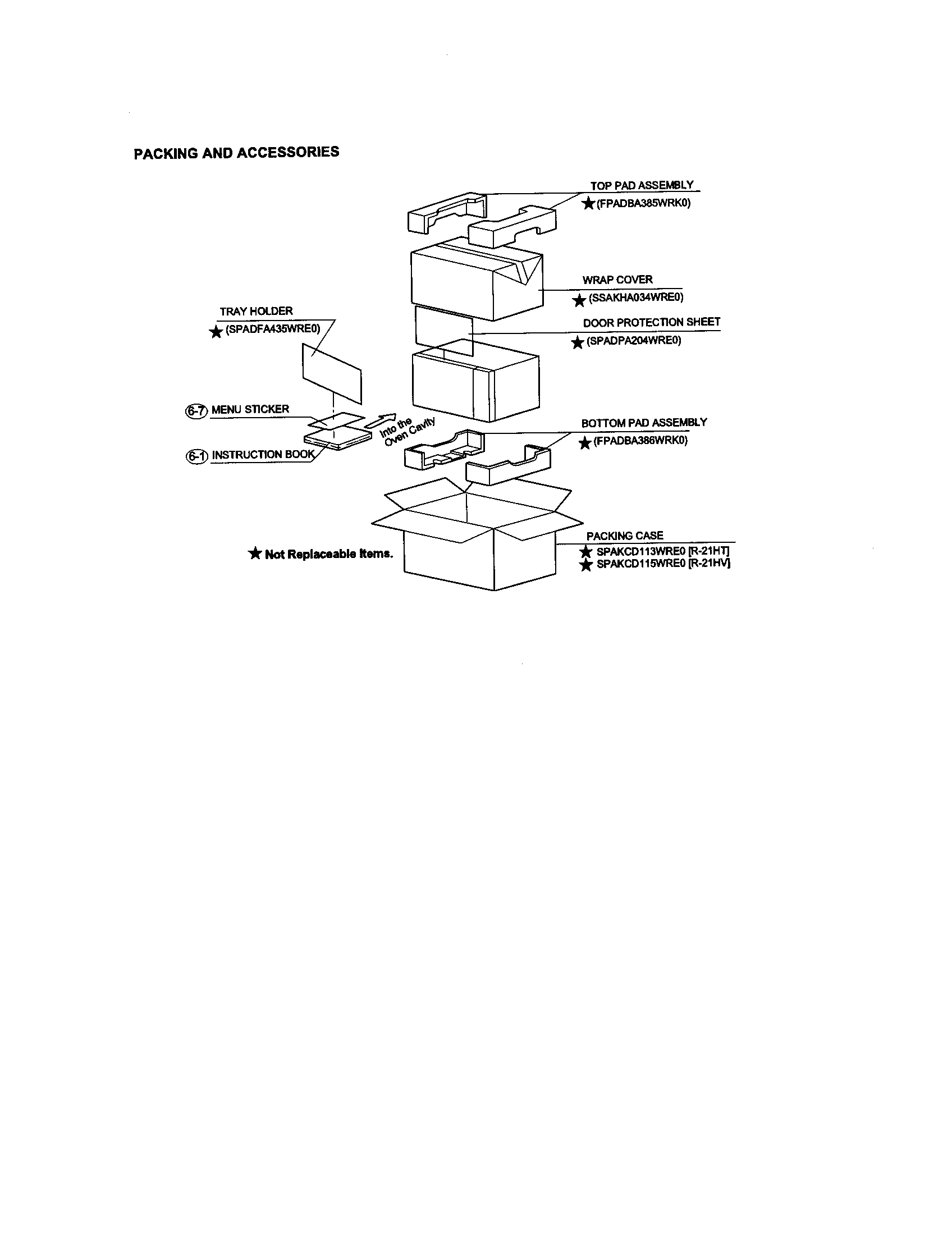

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Magnetron RV-MZA197WRE0

#1-15

All parts diagram

Magnetron

Part #RV-MZA197WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Interlock Switch And Fuse FFSBA015KIT

#1-1

All parts diagram

Microwave door interlock switch and fuse

Part #FFSBA015KIT

The manufacturer no longer makes this part, and there's no substitute part

Cushion PCUSUA507WRP0

#4-36

All parts diagram

Cushion

Part #PCUSUA507WRP0

The manufacturer no longer makes this part, and there's no substitute part

Shaft NSFTPA035WRFZ

#4-19

All parts diagram

Shaft

Part #NSFTPA035WRFZ

The manufacturer no longer makes this part, and there's no substitute part

Lever MLEVPA229WRF0

#4-5

All parts diagram

Lever

Part #MLEVPA229WRF0

The manufacturer no longer makes this part, and there's no substitute part

Spring MSPRTA191WRE0

#4-7

All parts diagram

Spring

Part #MSPRTA191WRE0

The manufacturer no longer makes this part, and there's no substitute part

Sheet PSHEPA649WRE0

#5-2

All parts diagram

Sheet

Part #PSHEPA649WRE0

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-CZA038WRE0

#7-3

All parts diagram

Screw

Part #LX-CZA038WRE0

The manufacturer no longer makes this part, and there's no substitute part

Cabinet GCABUA672WRP0

#2-1

All parts diagram

Cabinet

Part #GCABUA672WRP0

The manufacturer no longer makes this part, and there's no substitute part

Cut-out RTHM-A096WRE0

#1-13

All parts diagram

Cut-out

Part #RTHM-A096WRE0

The manufacturer no longer makes this part, and there's no substitute part
