Model # Q90-200 SERIES 2 Official Dunkirk boiler

Here are the diagrams and repair parts for Official Dunkirk Q90-200-SERIES-2 boiler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

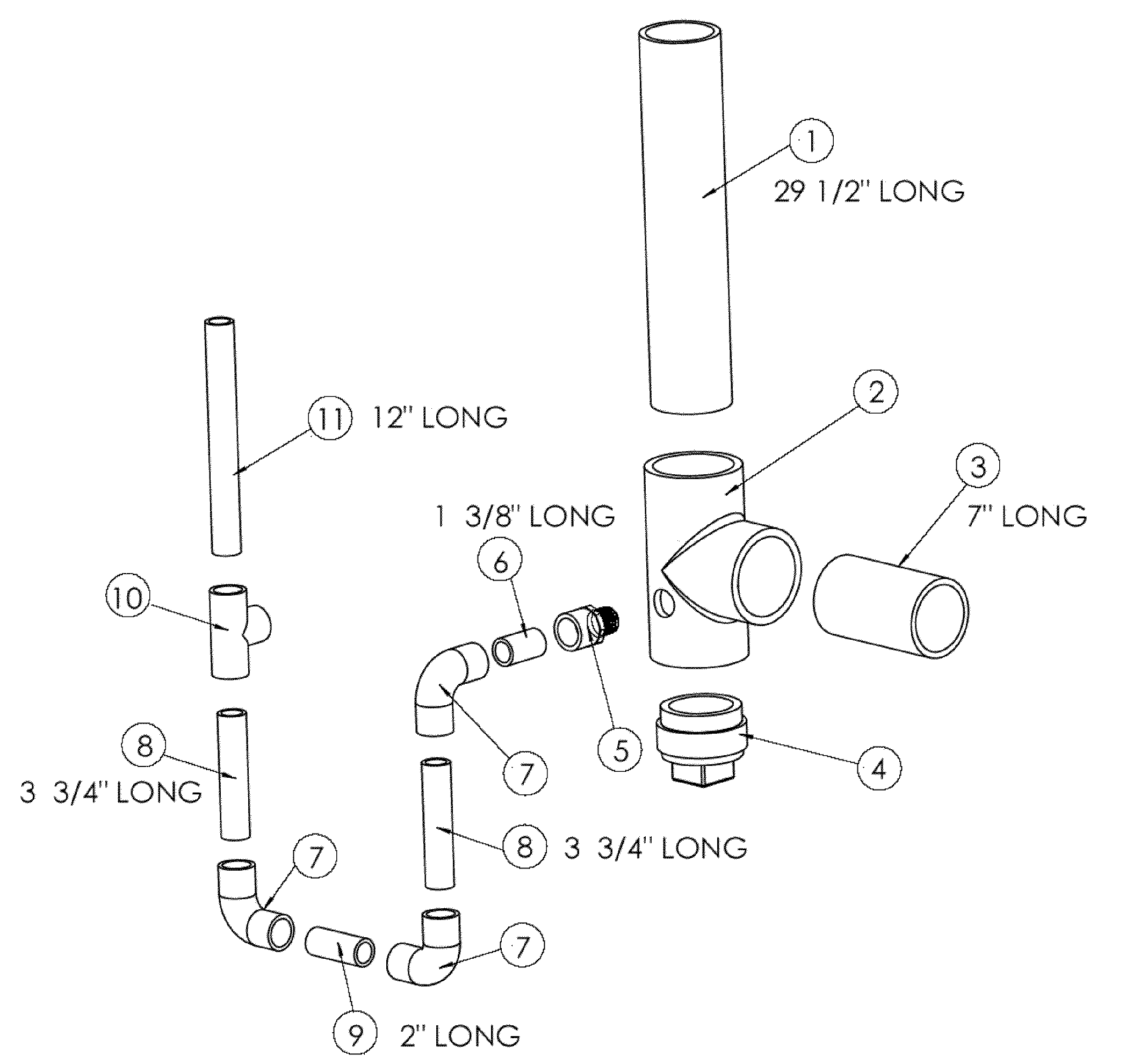

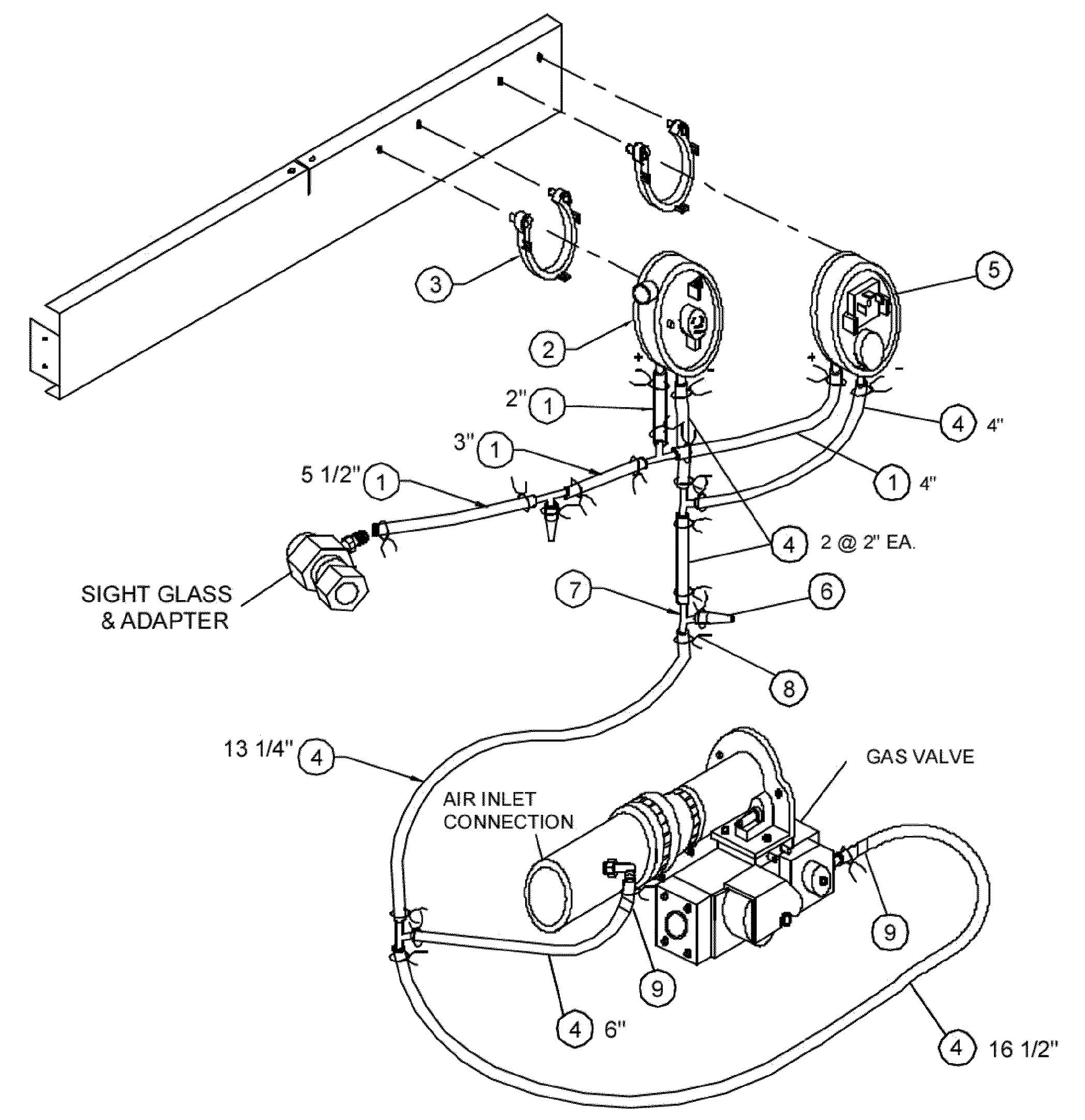

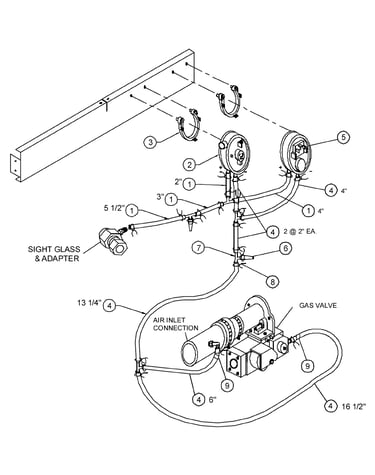

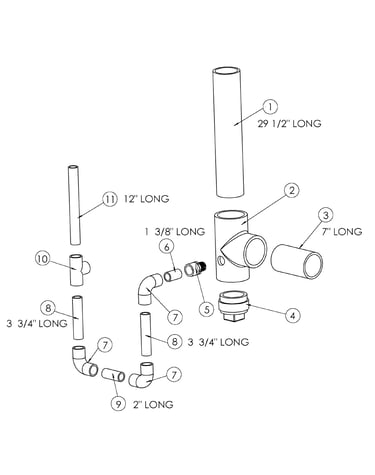

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Boiler Integrated Control Board 14662803
#3

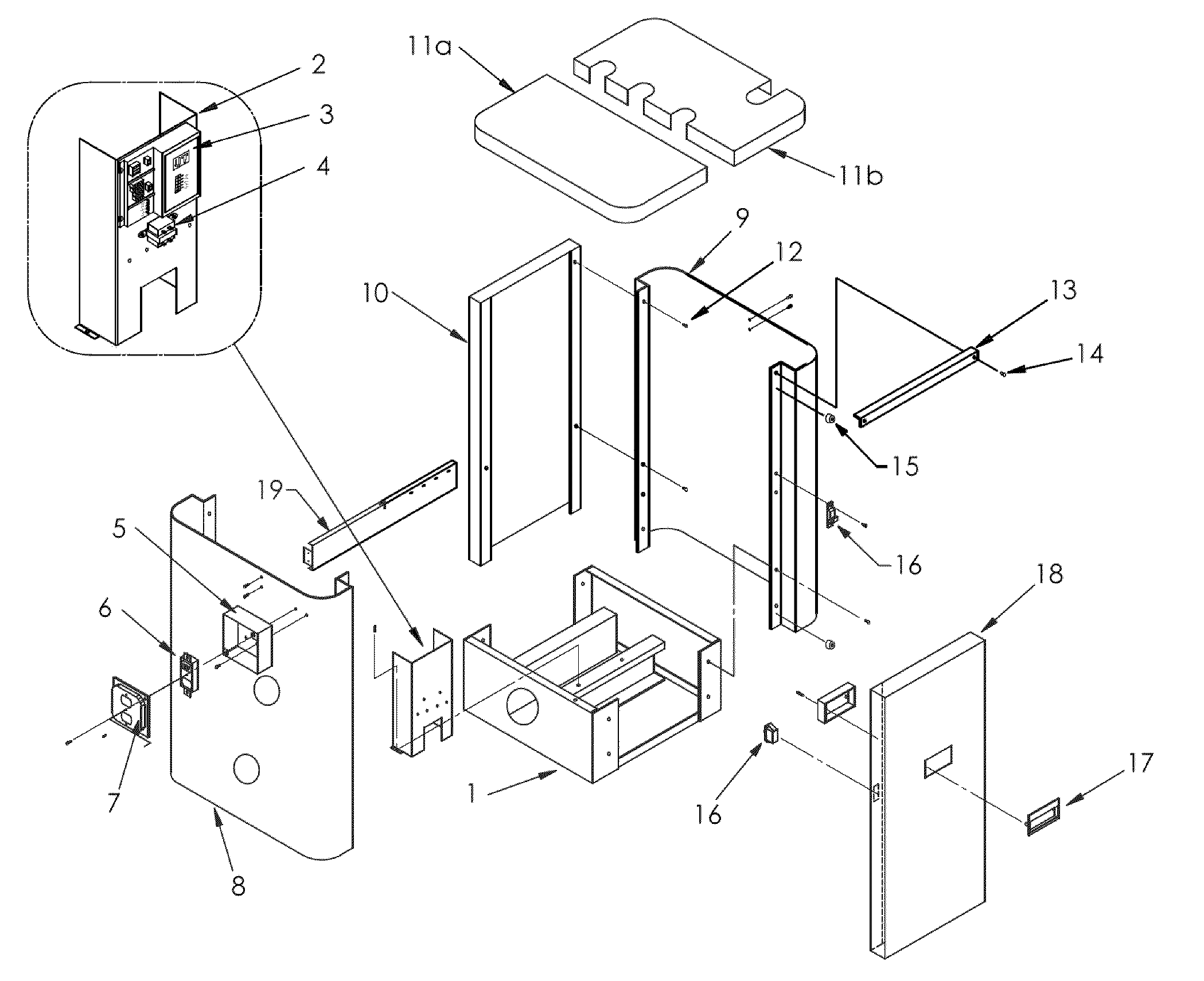

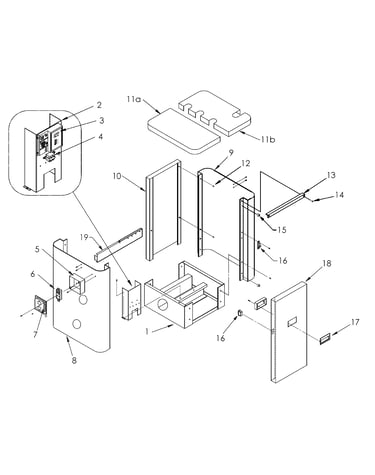

Cabinet assy diagram

Boiler integrated control board

Part #14662803

$253.90 |
$10.00 OFF Phone Price : $263.90
In Stock
Temperature Valve 14622011
#29

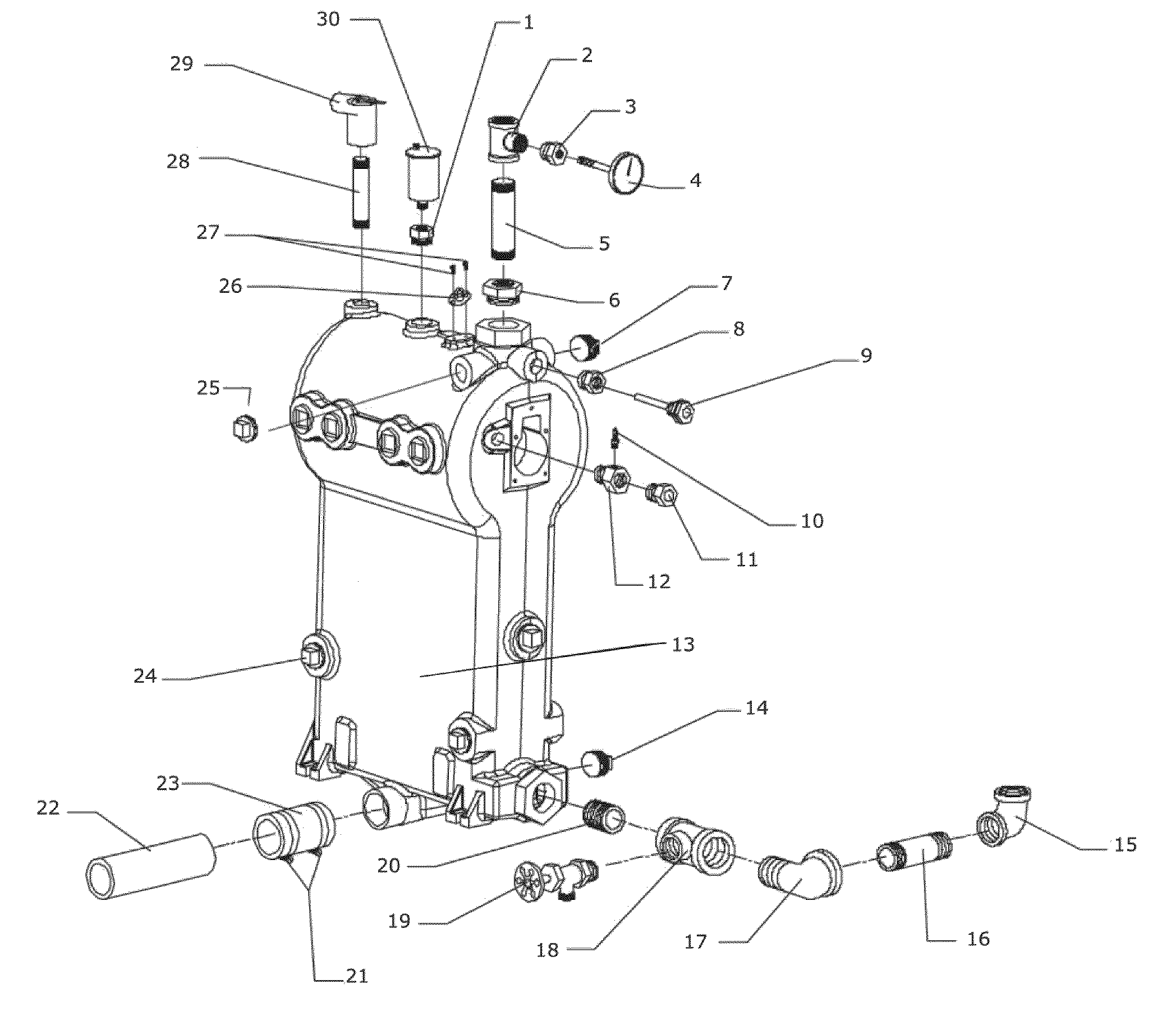

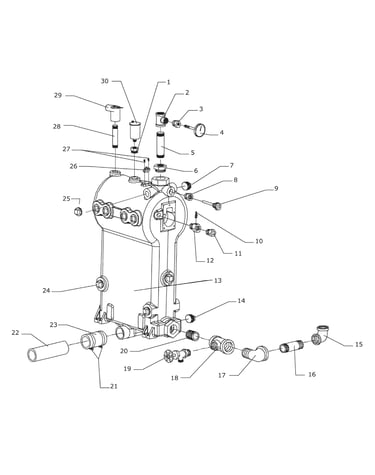

Boiler block assy diagram

Temperature valve

Part #14622011

$84.31
In Stock
Boiler Burner Igniter 550002068
#10

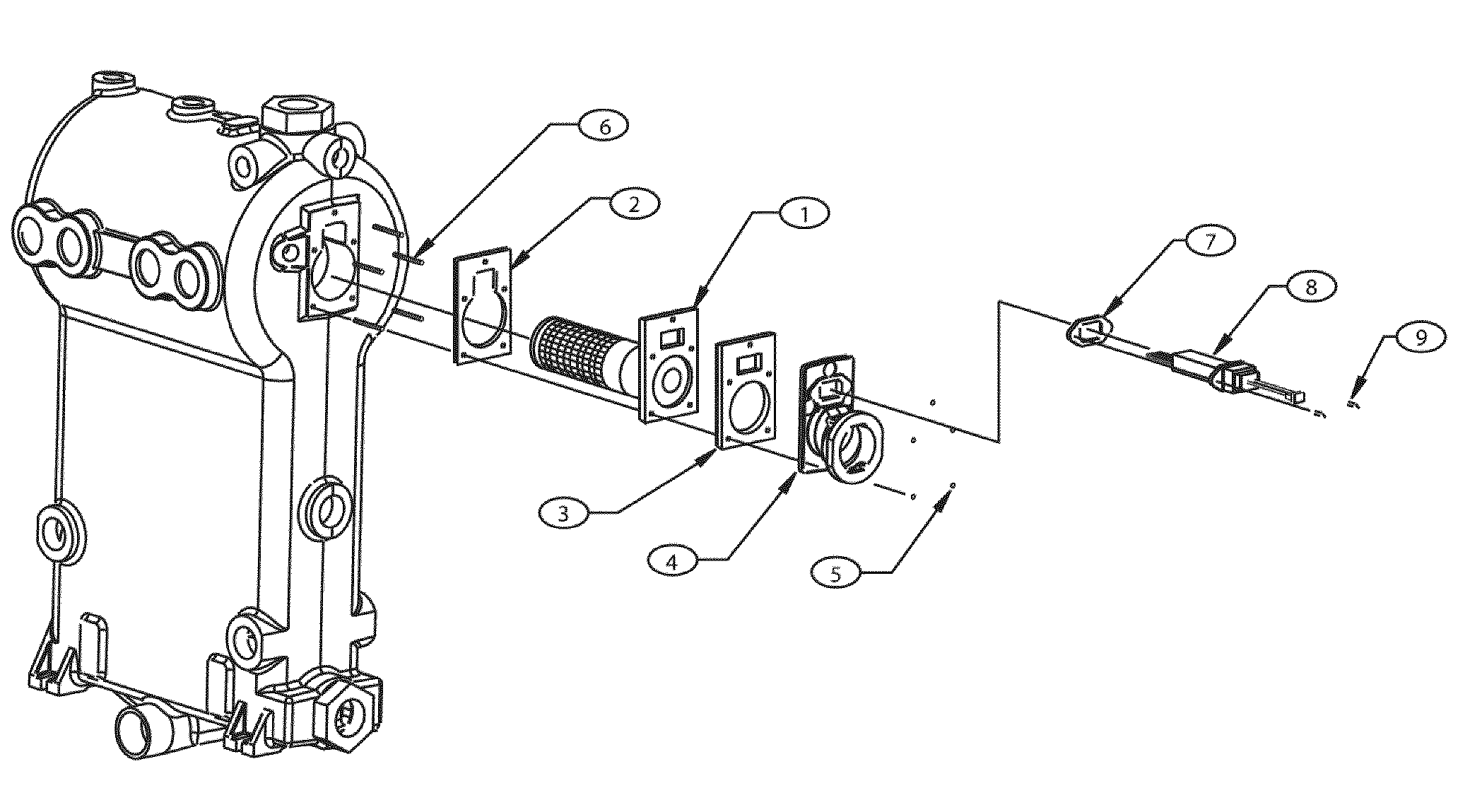

Burner assy diagram

Boiler burner igniter

Part #550002068

$253.52 |
$10.00 OFF Phone Price : $263.52
In Stock
Block 2272160
#A

Boiler block assy diagram

Block

Part #2272160

$3035.34
In Stock
Elbow 1 1/4" X 90* 1190002
#15

Boiler block assy diagram

Elbow 1 1/4" x 90*

Part #1190002

$16.97
In Stock
Burner 2272149
#1

Burner assy diagram

Burner

Part #2272149

$239.87
In Stock
Panel 2272151AC
#9

Cabinet assy diagram

Panel

Part #2272151AC

$196.05
In Stock
Boiler Temperature And Pressure Gauge 1260006SP
#4

Boiler block assy diagram

Boiler temperature and pressure gauge

Part #1260006SP

$52.91
In Stock
Vent Kit 29571
#NI

Cabinet assy diagram

Vent kit

Part #29571

$589.56
In Stock
Gasket 1250007
#14

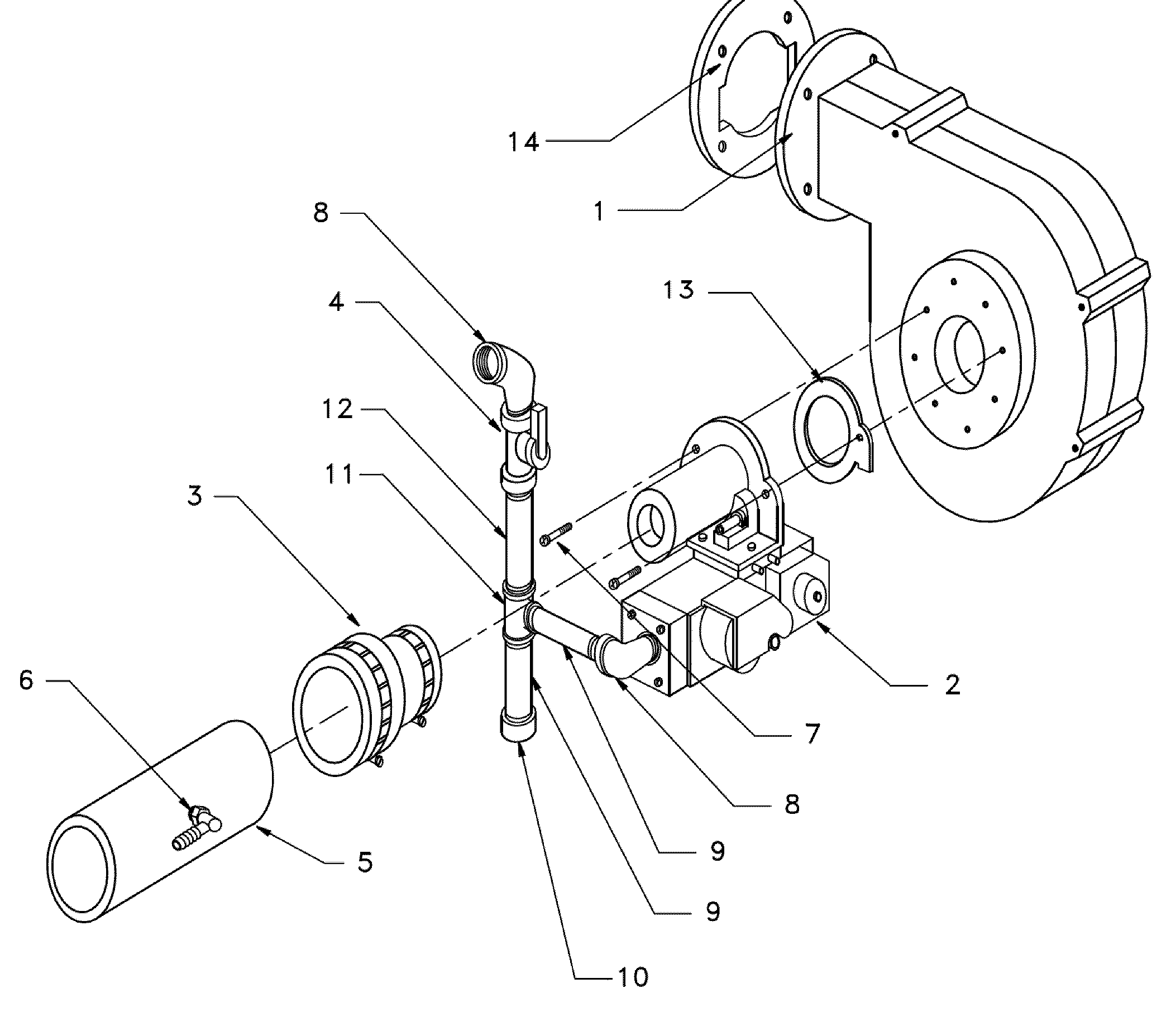

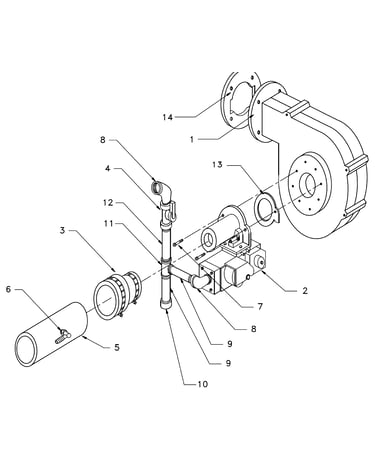

Gas valve assy diagram

Gasket

Part #1250007

$12.74
In Stock
