Model # 58CMA12012120 Official Carrier furnace

Here are the diagrams and repair parts for Official Carrier 58CMA12012120 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Control 7456U
#71

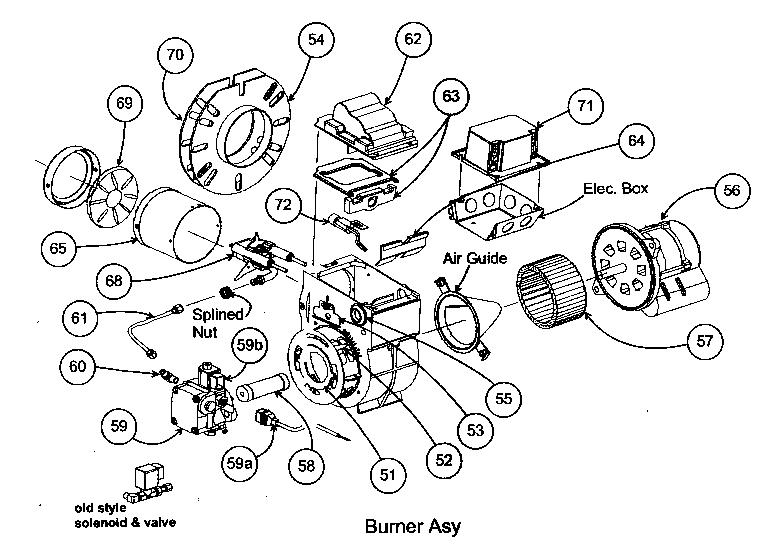

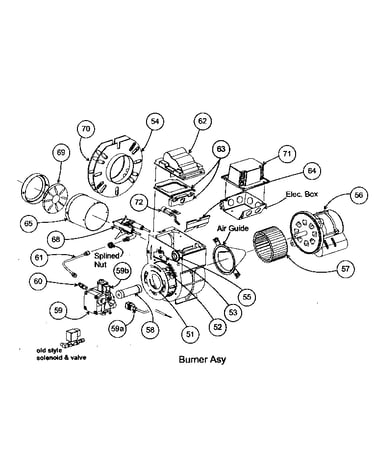

Burner assy diagram

Control

Part #7456U

Replaced by #7505B1500U

?
Manufacturer substitution
This part replaces 7456U. Substitute parts can look different from the original.
$159.19 |
6% OFF Phone Price : $169.19
In Stock
Hvac Equipment Oil Burner Flange And Flange Gasket 5432
#54

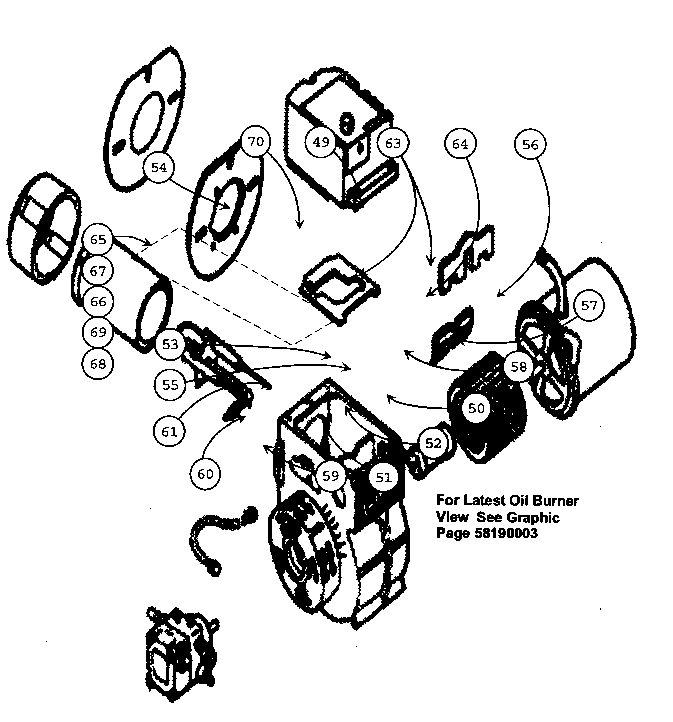

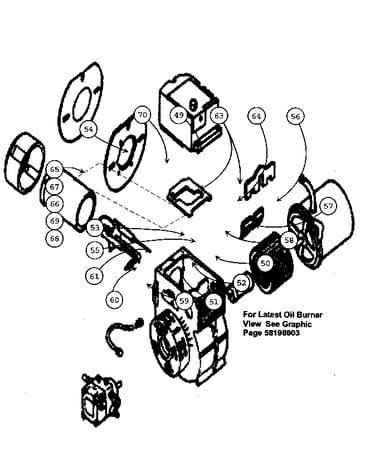

Blower assy diagram

Hvac equipment oil burner flange and flange gasket

Part #5432

$28.44
In Stock
Cord Set 21887U
#59A

Burner assy diagram

Cord set

Part #21887U

$42.27
In Stock
Air Tube AF53XN
#65

Blower assy diagram

Air tube

Part #AF53XN

$148.02
In Stock
Hvac Equipment Oil Burner Housing Flange Gasket 3616
#70

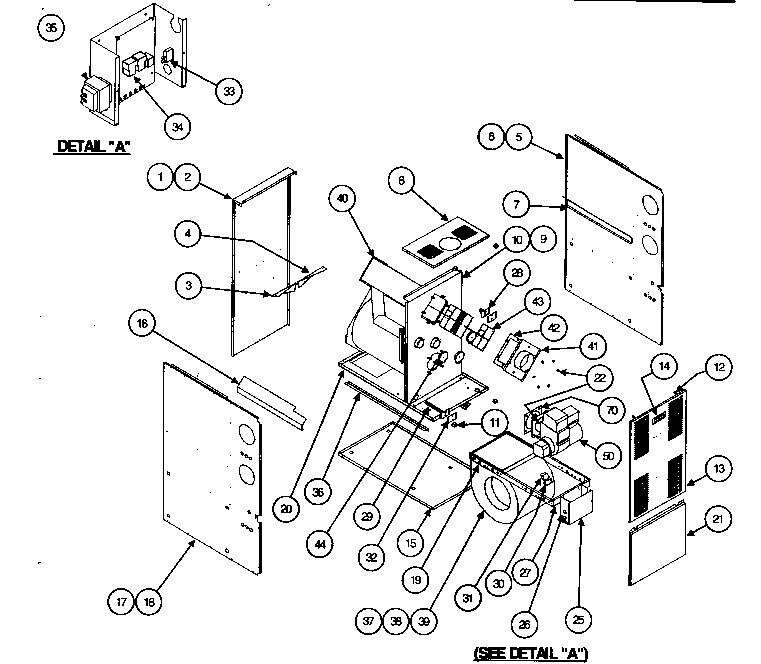

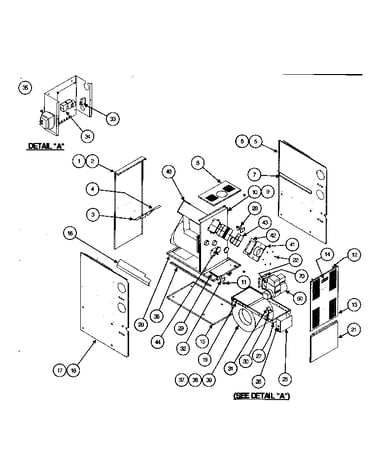

Cabinet parts diagram

Hvac equipment oil burner housing flange gasket

Part #3616

$20.94
In Stock
Control R02R002
#NI

Cabinet parts diagram

Control

Part #R02R002

$23.62
In Stock
Baffle B01751
#43

Cabinet parts diagram

Baffle

Part #B01751

$133.30 |
7% OFF Phone Price : $143.30
In Stock
Cover B01747
#41

Cabinet parts diagram

Cover

Part #B01747

$105.51
In Stock
Firinghead F3
#69

Blower assy diagram

Firinghead

Part #F3

$28.77
In Stock
Hvac Equipment Oil Burner Connector Tube 2454
#58

Blower assy diagram

Hvac equipment oil burner connector tube

Part #2454

$13.80
In Stock
