Model # RDH-GTK37IP Official Sony boombox

Here are the diagrams and repair parts for Official Sony RDH-GTK37IP boombox, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Integrated Circuit 671467101
#NI

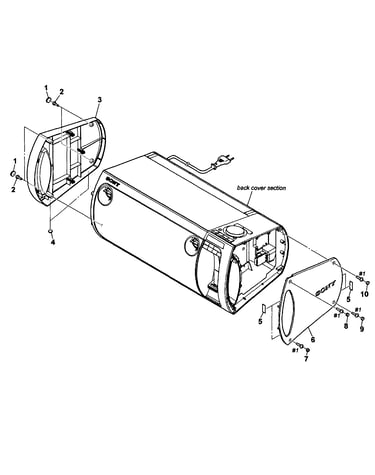

Side panels diagram

Integrated circuit

Part #671467101

The manufacturer no longer makes this part, and there's no substitute part

Cover Screw 441260301
#10

Side panels diagram

Cover screw

Part #441260301

The manufacturer no longer makes this part, and there's no substitute part

Cover Screw 440965801
#152

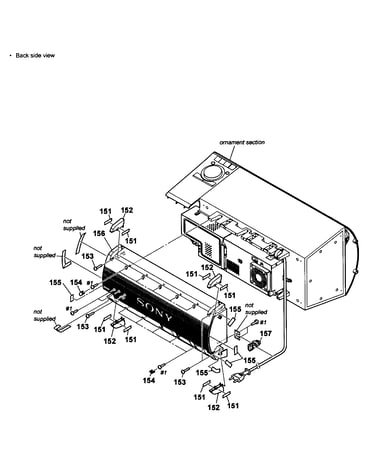

Back panel diagram

Cover screw

Part #440965801

Replaced by #440965801

?
Manufacturer substitution
This part replaces 440965801. Substitute parts can look different from the original.
This item is not returnable
$3.54
In Stock
Panel A1912694A
#602

Panel front diagram

Panel

Part #A1912694A

Replaced by #A1912694A

?
Manufacturer substitution
This part replaces A1912694A. Substitute parts can look different from the original.
$115.26
In Stock
Main Pcb A1911528A
#402

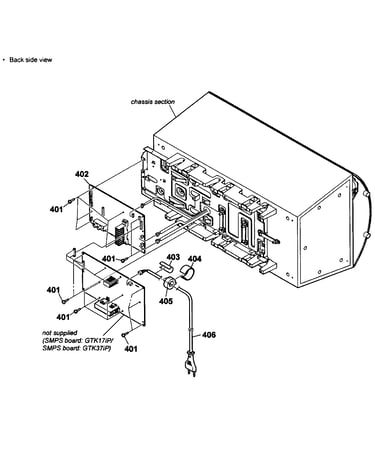

Main pcb diagram

Main pcb

Part #A1911528A

The manufacturer no longer makes this part, and there's no substitute part

Wire 9core 184674211
#52

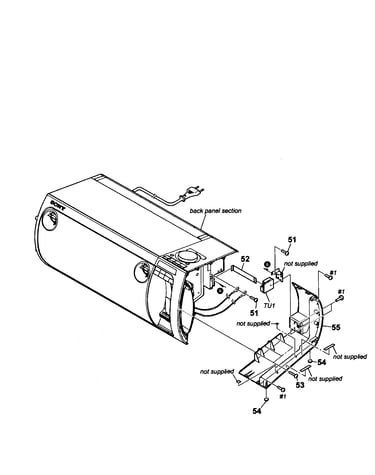

Back cover diagram

Wire 9core

Part #184674211

Replaced by #184674211

?
Manufacturer substitution
This part replaces 184674211. Substitute parts can look different from the original.
$10.31
In Stock
Indicator 445876401
#317

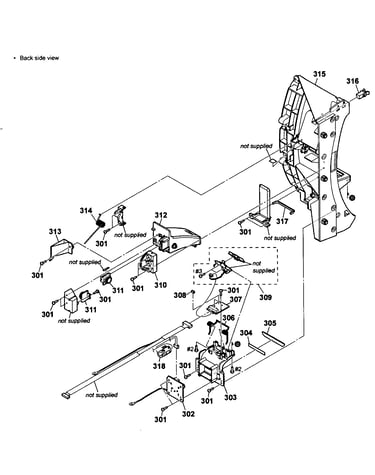

Front panel diagram

Indicator

Part #445876401

Replaced by #445876401

?
Manufacturer substitution
This part replaces 445876401. Substitute parts can look different from the original.
This item is not returnable
$2.65
In Stock
Base Button 444621101
#254

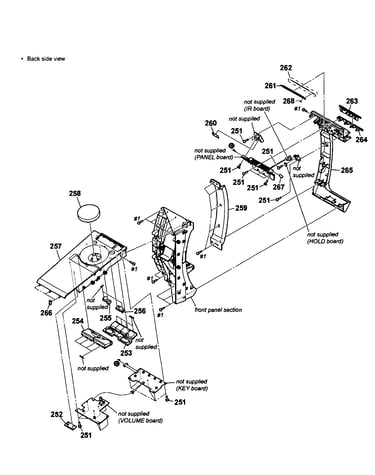

Top panel diagram

Base button

Part #444621101

Replaced by #444621101

?
Manufacturer substitution
This part replaces 444621101. Substitute parts can look different from the original.
$10.31
In Stock
Cover Screw 440964101
#8

Side panels diagram

Cover screw

Part #440964101

The manufacturer no longer makes this part, and there's no substitute part

Varistor 181116531
#NI

Side panels diagram

Varistor

Part #181116531

Replaced by #181116531

?
Manufacturer substitution
This part replaces 181116531. Substitute parts can look different from the original.
This item is not returnable
$4.20
In Stock
