Emerson
Countertop Microwave

Model # MW8102SS Official Emerson microwave

Here are the diagrams and repair parts for Official Emerson MW8102SS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

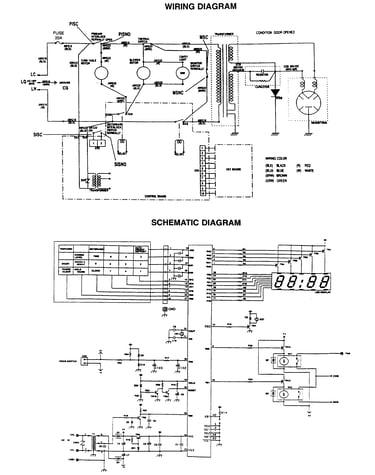

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Diode MOS0954
#13

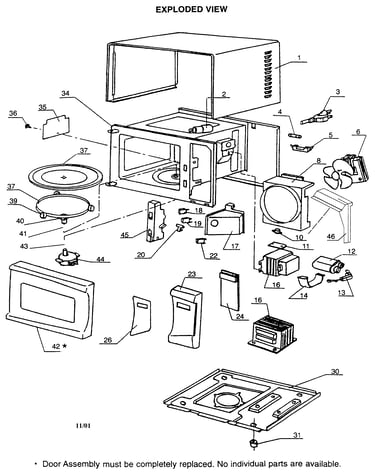

Cabinet parts diagram

Diode

Part #MOS0954

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor MOS1035
#6

Cabinet parts diagram

Fan motor

Part #MOS1035

The manufacturer no longer makes this part, and there's no substitute part

Transformer MOS1037
#16

Cabinet parts diagram

Transformer

Part #MOS1037

The manufacturer no longer makes this part, and there's no substitute part

Capacitor MOS0857
#12

Cabinet parts diagram

Capacitor

Part #MOS0857

The manufacturer no longer makes this part, and there's no substitute part

Magnetron MOS0848
#15

Cabinet parts diagram

Magnetron

Part #MOS0848

The manufacturer no longer makes this part, and there's no substitute part

Switch MOS0223K
Switch

Part #MOS0223K

The manufacturer no longer makes this part, and there's no substitute part

Bulb MOS0549
#2

Cabinet parts diagram

Bulb

Part #MOS0549

The manufacturer no longer makes this part, and there's no substitute part

Magnetron Guide MOM1044
#46

Cabinet parts diagram

Magnetron guide

Part #MOM1044

The manufacturer no longer makes this part, and there's no substitute part

Cavity Assy MOA0653
#34

Cabinet parts diagram

Cavity assy

Part #MOA0653

The manufacturer no longer makes this part, and there's no substitute part

Monitor Switch MOS0224K
#19

Cabinet parts diagram

Monitor switch

Part #MOS0224K

The manufacturer no longer makes this part, and there's no substitute part
