Model # SA-VA15 Official Sony speaker system

Here are the diagrams and repair parts for Official Sony SA-VA15 speaker system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Grille X49460771
#3

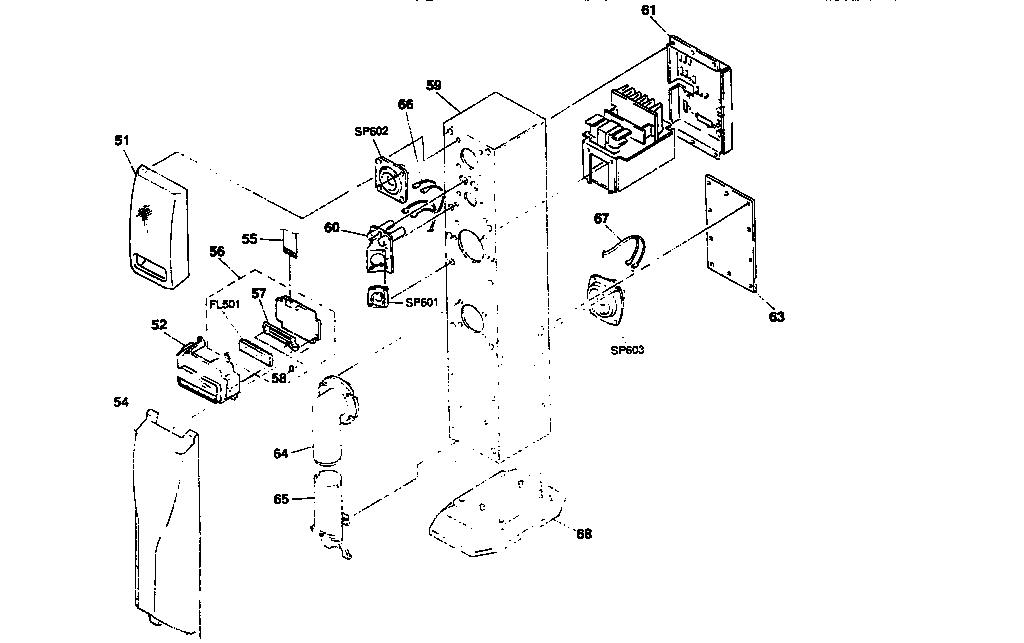

Speaker,rear diagram

Grille

Part #X49460771

Replaced by #X49459781

?
Manufacturer substitution
This part replaces X49460771. Substitute parts can look different from the original.
$62.07
In Stock
Cushion 492194101
#11

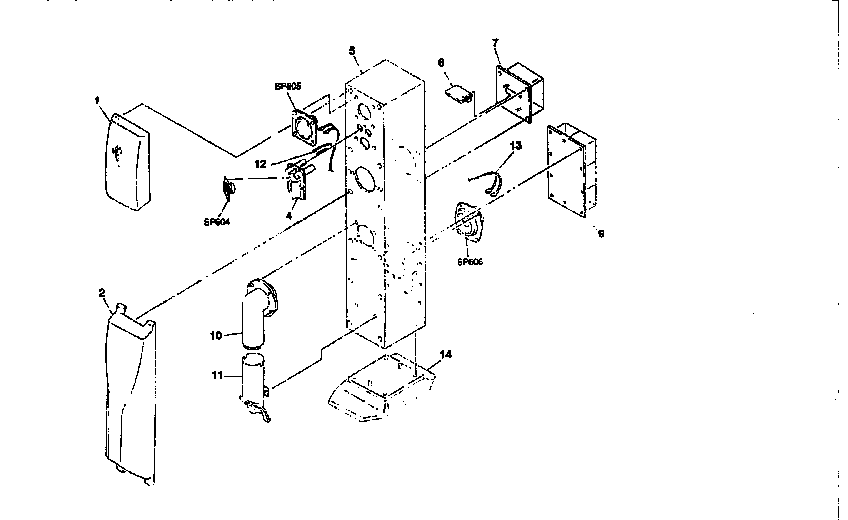

Speaker,left diagram

Cushion

Part #492194101

Replaced by #492194101

?
Manufacturer substitution
This part replaces 492194101. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Battery Cover 438428501

#NI

All parts diagram

Battery cover

Part #438428501

The manufacturer no longer makes this part, and there's no substitute part

10 Key Pcb Assembly NON-SERVICE-PART
10 key pcb assembly

Part #NON-SERVICE-PART

The manufacturer no longer makes this part, and there's no substitute part

Frame R As X49459441
#4

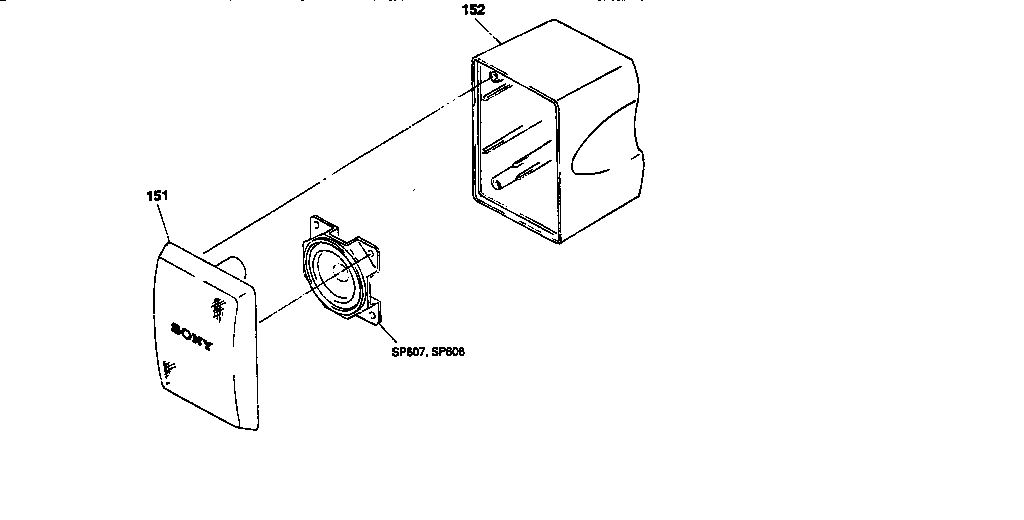

Speaker,right diagram

Frame r as

Part #X49459441

The manufacturer no longer makes this part, and there's no substitute part

Base 497350901
Base

Part #497350901

The manufacturer no longer makes this part, and there's no substitute part

Audio Speaker 150487411
Audio speaker

Part #150487411

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly A4378000A
#9

Speaker,left diagram

Pcb assembly

Part #A4378000A

The manufacturer no longer makes this part, and there's no substitute part

Cord 175147411

#NI

All parts diagram

Cord

Part #175147411

The manufacturer no longer makes this part, and there's no substitute part

Frame L As X49459431
#5

Speaker,left diagram

Frame l as

Part #X49459431

The manufacturer no longer makes this part, and there's no substitute part
