Lauson
Lawn & Garden Engine

Model # LAV35-40919K Official Lauson 4-cycle engine

Here are the diagrams and repair parts for Official Lauson LAV35-40919K 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

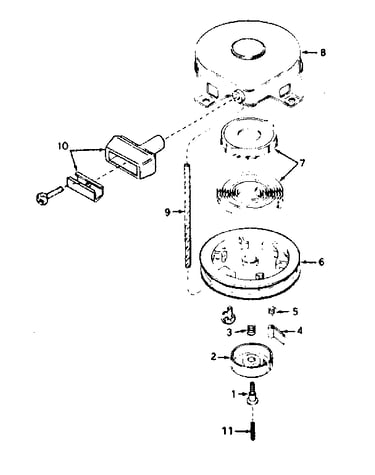

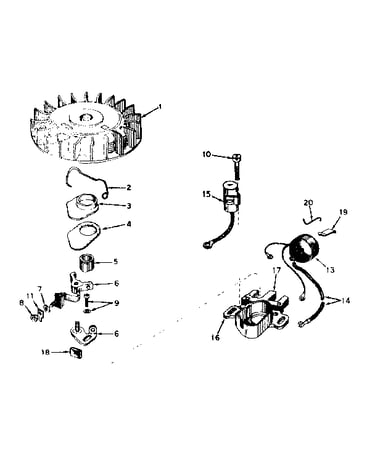

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Fuel Line 29774
#114

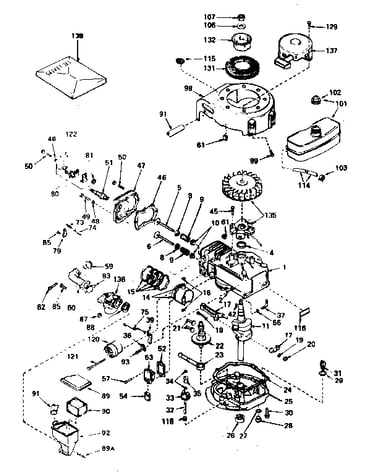

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Carburetor 631612
Carburetor

Part #631612

The manufacturer no longer makes this part, and there's no substitute part

Drain Plug 27244
#28

Basic engine diagram

Drain plug

Part #27244

The manufacturer no longer makes this part, and there's no substitute part

Fuel Fitting 631775
#26

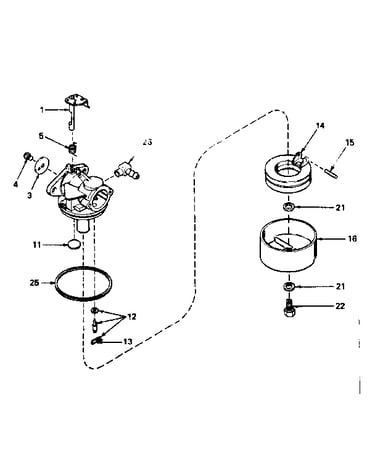

Carburetor no. 631612 diagram

Fuel fitting

Part #631775

The manufacturer no longer makes this part, and there's no substitute part

Element 31410
#54

Basic engine diagram

Element

Part #31410

The manufacturer no longer makes this part, and there's no substitute part

Plug 27625
#31

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Spring Retainer 630731
#5

Carburetor no. 631612 diagram

Spring retainer

Part #630731

The manufacturer no longer makes this part, and there's no substitute part

Gasket 28833
#27

Basic engine diagram

Gasket

Part #28833

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Shaft 30574
#32

Basic engine diagram

/gvnr shaft

Part #30574

The manufacturer no longer makes this part, and there's no substitute part

Spark Plug 33636
#51

Basic engine diagram

Spark plug

Part #33636

The manufacturer no longer makes this part, and there's no substitute part
