Model # EI24WC15VS Official Electrolux beverage center

Here are the diagrams and repair parts for Official Electrolux EI24WC15VS beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

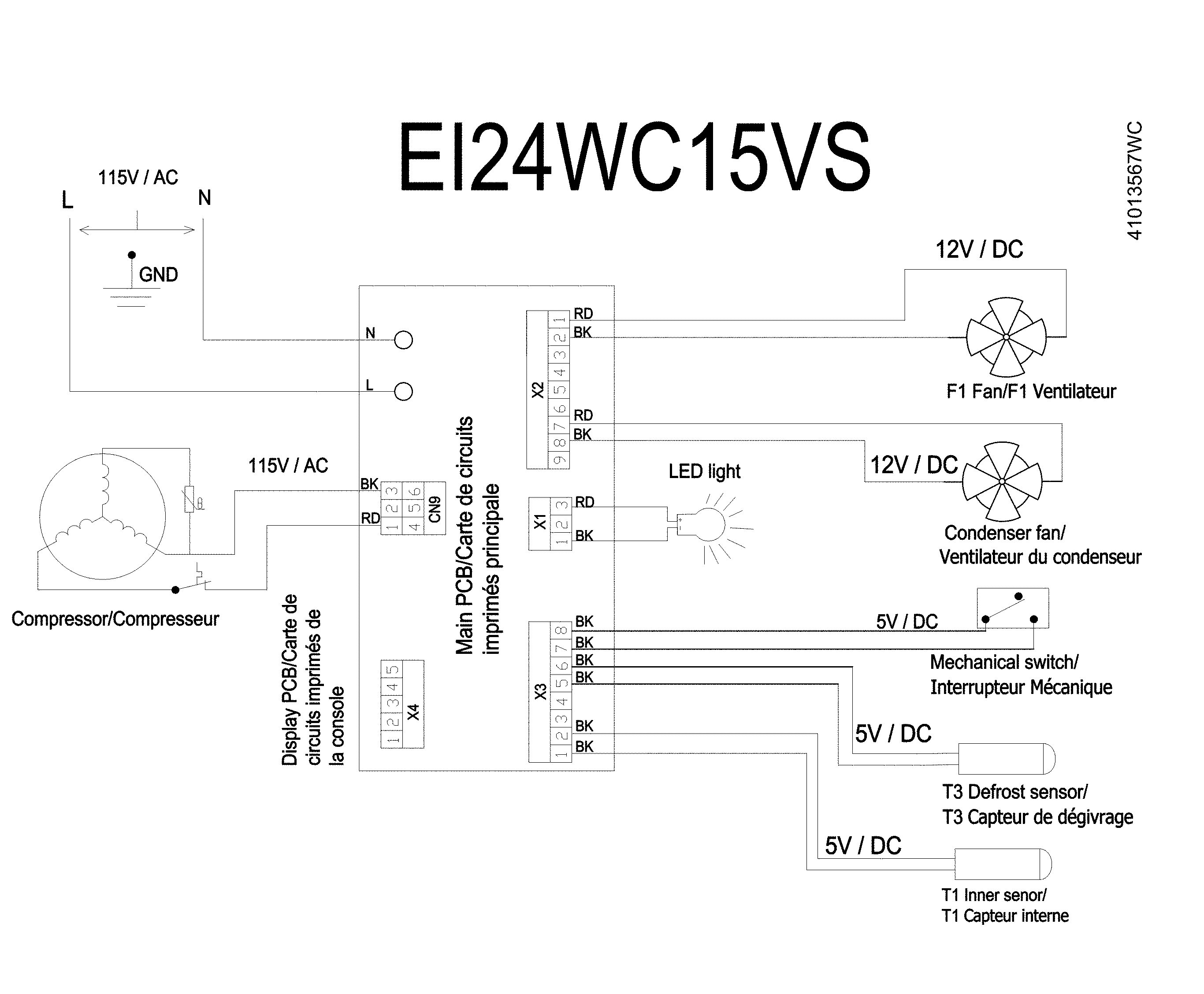

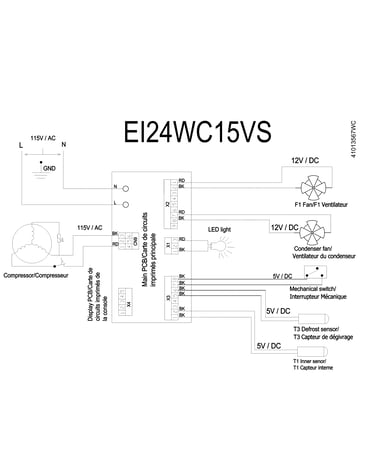

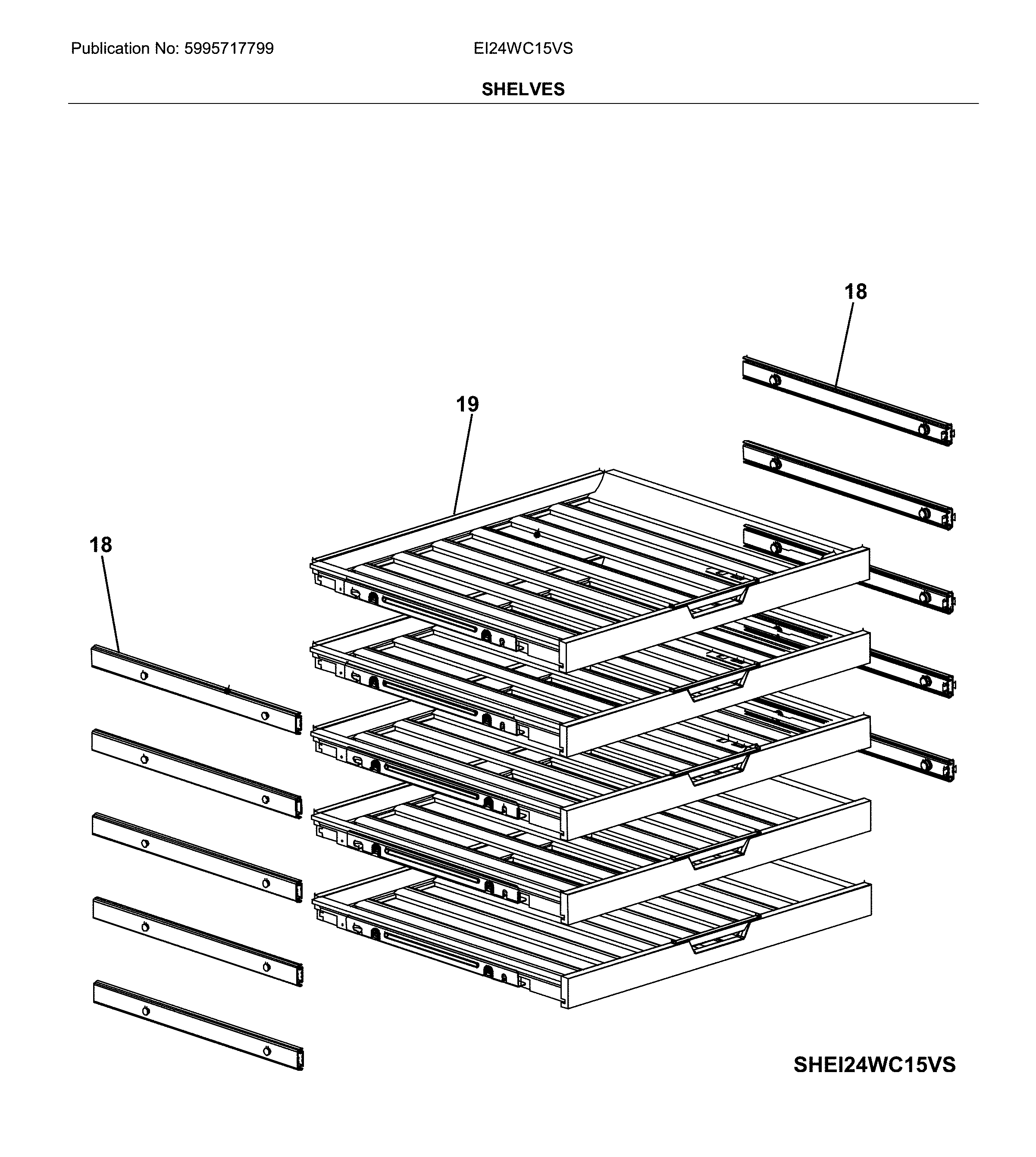

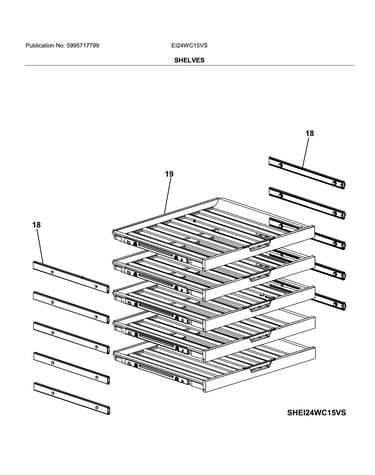

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Power Cord,elec Service 5304522401
#6

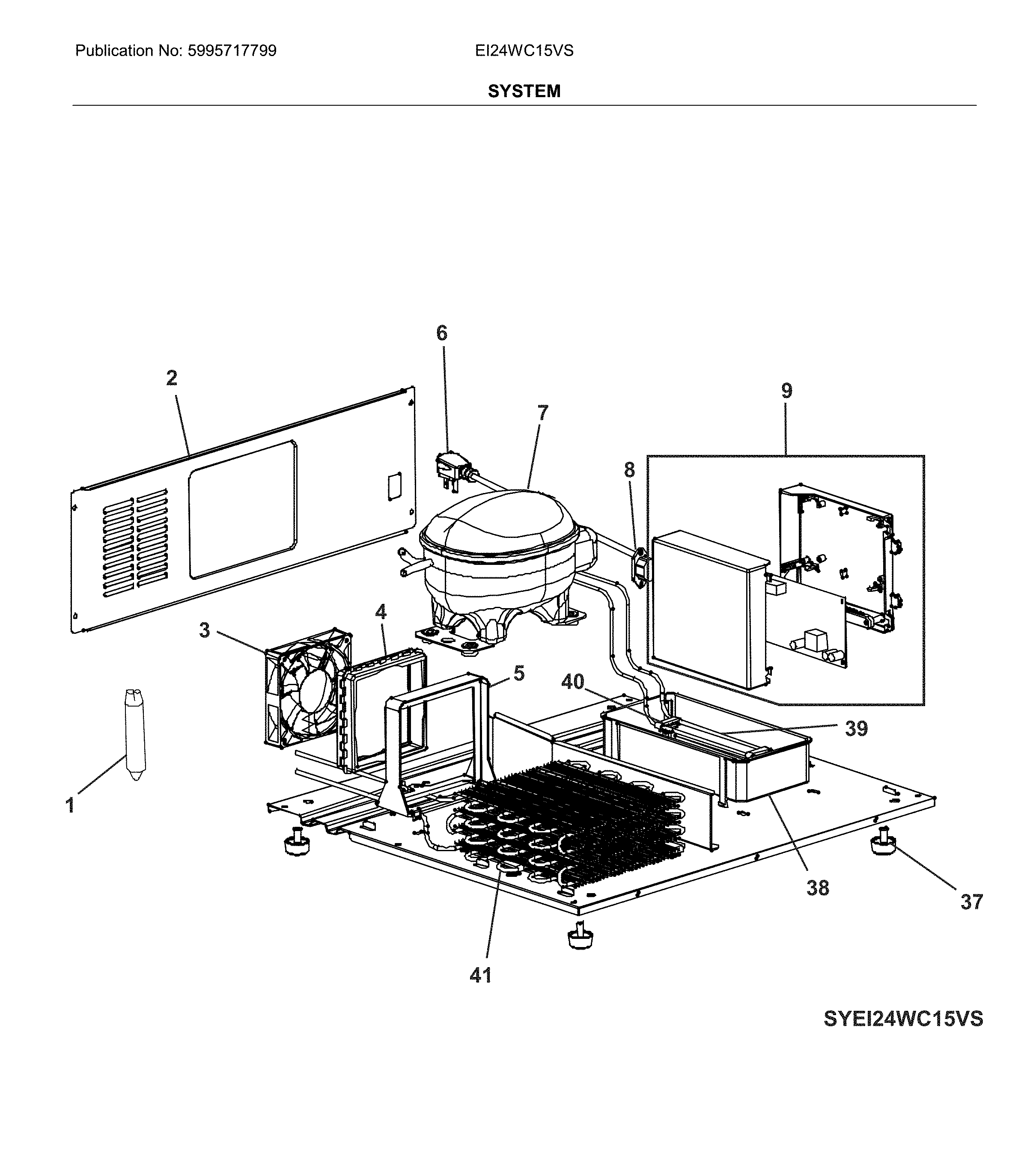

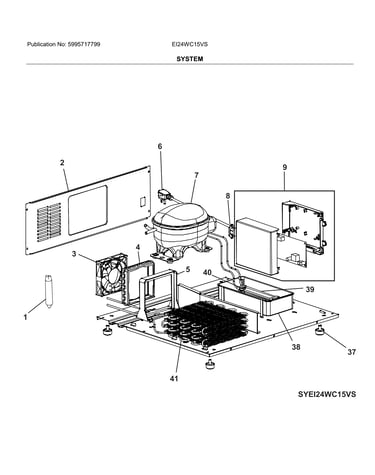

System diagram

Power cord,elec service

Part #5304522401

$40.82
In Stock
Evaporator,assembly 5304522369
#11

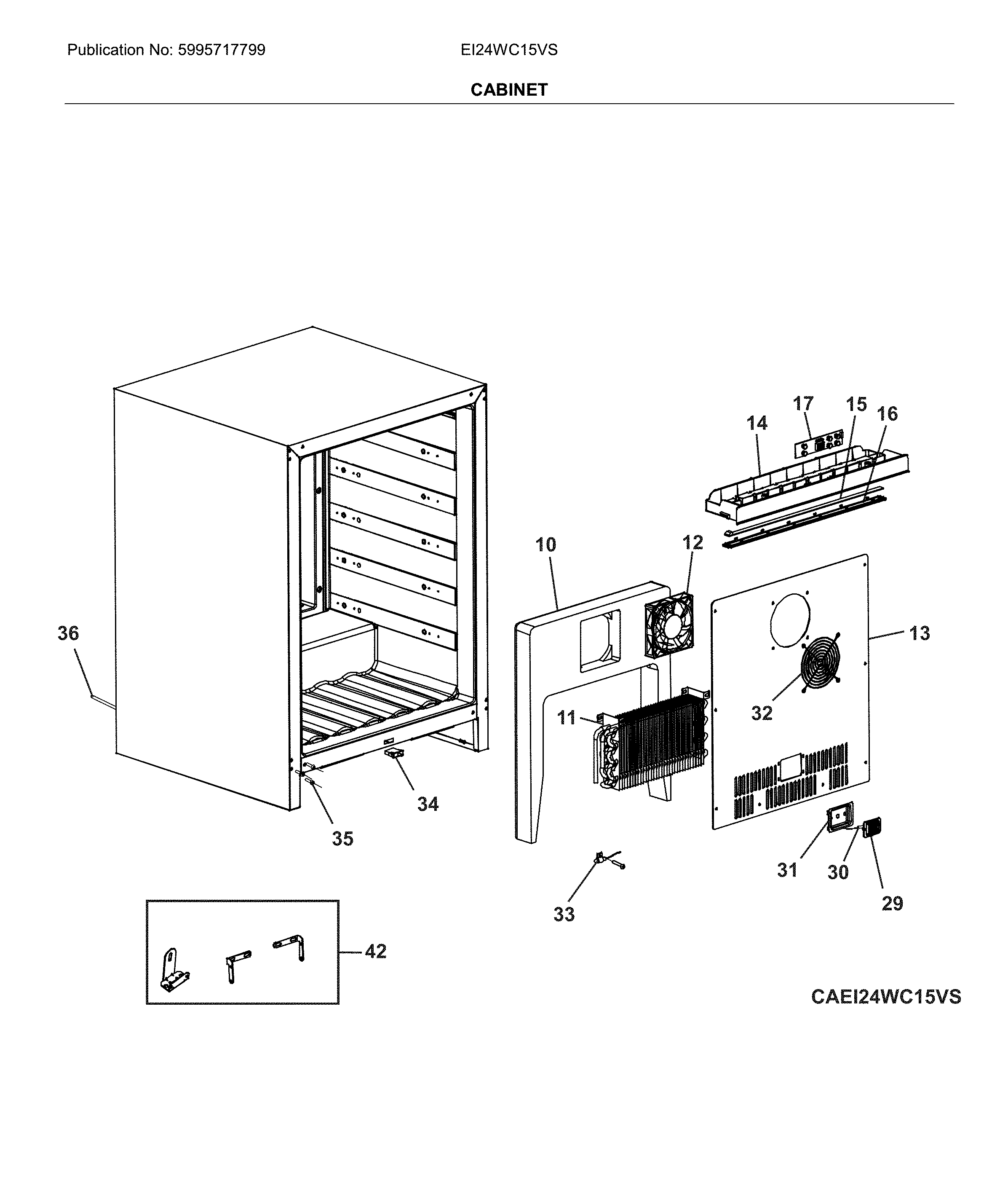

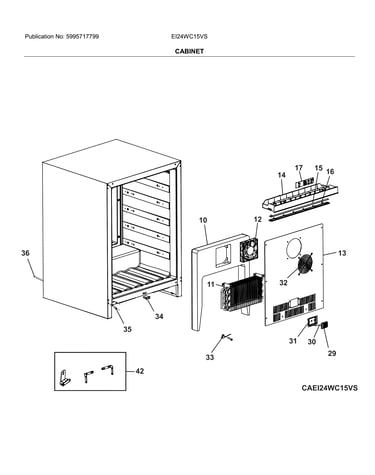

Cabinet diagram

Evaporator,assembly

Part #5304522369

$102.33
In Stock
Condenser,assembly 5304522418
#41

System diagram

Condenser,assembly

Part #5304522418

$81.22
In Stock
Control Box 5304522669
#14

Cabinet diagram

Control box

Part #5304522669

$74.62
In Stock
Cover,access ,rear 5304522397
#2

System diagram

Cover,access ,rear

Part #5304522397

$34.02
In Stock
Door Assembly,complete ,glass ,black/stainless 5304522360
#21

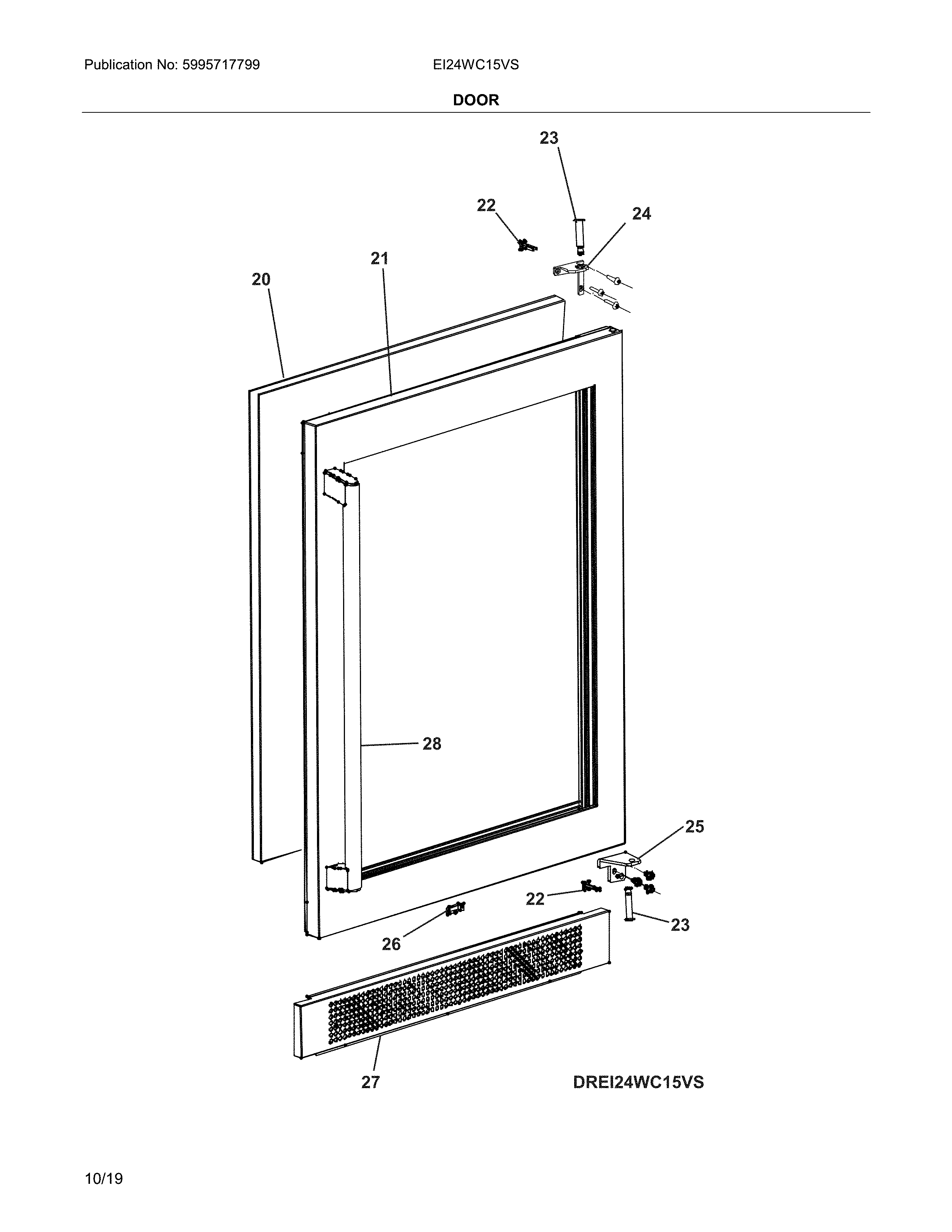

Door diagram

Door assembly,complete ,glass ,black/stainless

Part #5304522360

$667.50
In Stock
Tube,suction 5304522386
#36

Cabinet diagram

Tube,suction

Part #5304522386

$54.32
In Stock
Insulation,air ,foam ,evap Cover 5304522368
#10

Cabinet diagram

Insulation,air ,foam ,evap cover

Part #5304522368

$15.34
In Stock
Hinge,door ,rh Lower 5304522364
#25

Door diagram

Hinge,door ,rh lower

Part #5304522364

$57.06
In Stock
Toe Grill,stainless ,lower 5304522366
#27

Door diagram

Toe grill,stainless ,lower

Part #5304522366

$80.10
In Stock
