Model # 315175040 Official Craftsman double insulated router

Here are the diagrams and repair parts for Official Craftsman 315175040 double insulated router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 46 parts |

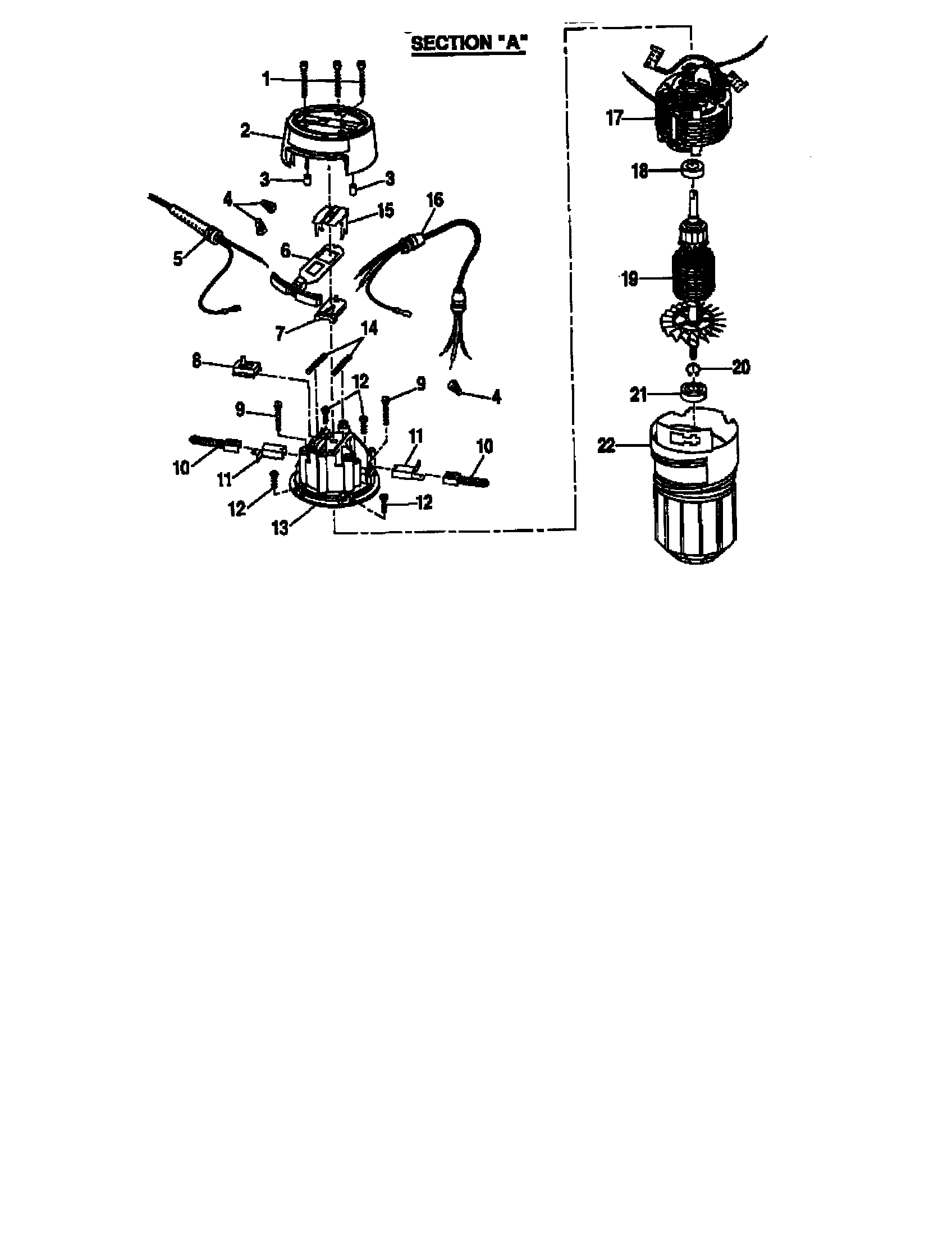

Armature and field assembly diagram

Bumper

Part #617834-001

The manufacturer no longer makes this part, and there's no substitute part

#10

Armature and field assembly diagram

Brush assembly

Part #610784-048

The manufacturer no longer makes this part, and there's no substitute part

#11

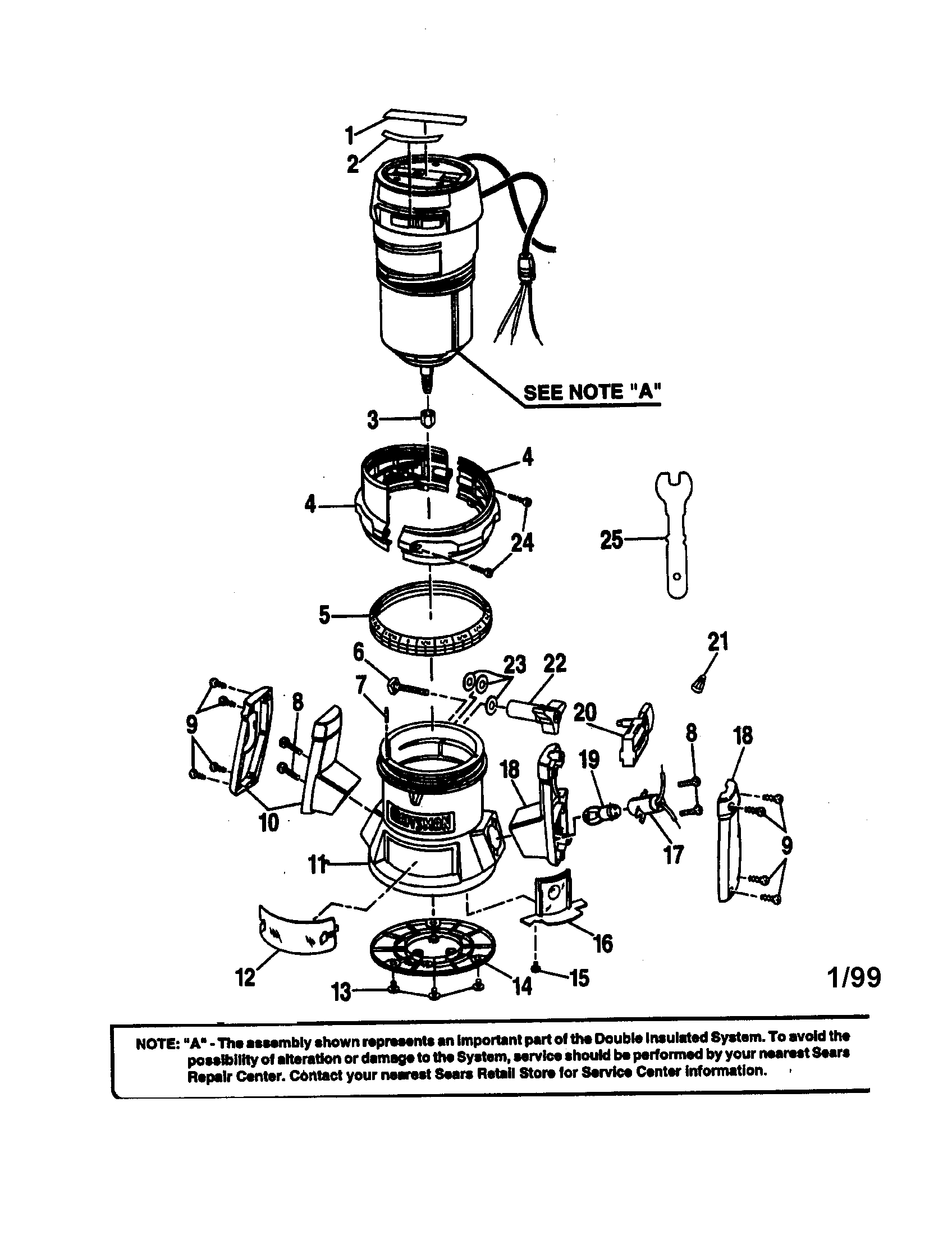

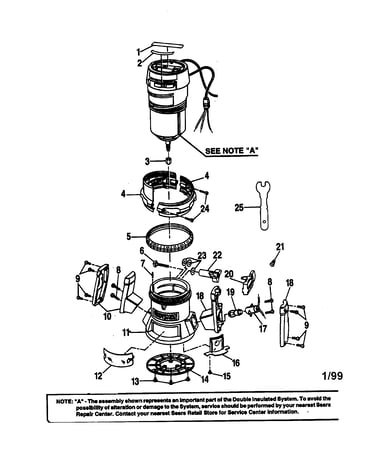

Main body diagram

Base - 175

Part #973735-002

The manufacturer no longer makes this part, and there's no substitute part

#21

Armature and field assembly diagram

Ball bearing

Part #989919-004

The manufacturer no longer makes this part, and there's no substitute part

#16

Armature and field assembly diagram

Ac cord

Part #971669-002

The manufacturer no longer makes this part, and there's no substitute part

Main body diagram

Bolt

Part #623166-006

The manufacturer no longer makes this part, and there's no substitute part

#20

Armature and field assembly diagram

Retain ring

Part #622167-012

The manufacturer no longer makes this part, and there's no substitute part

Main body diagram

Data plate

Part #973741-001

The manufacturer no longer makes this part, and there's no substitute part

#15

Main body diagram

Screw

Part #989684-001

The manufacturer no longer makes this part, and there's no substitute part

Main body diagram

Router collet nut

Part #989985-003

The manufacturer no longer makes this part, and there's no substitute part
