Bosch
Warming Drawer

Model # HWD302UC/01 Official Bosch warming drawer

Here are the diagrams and repair parts for Official Bosch HWD302UC-01 warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
End Cap 184587
#113

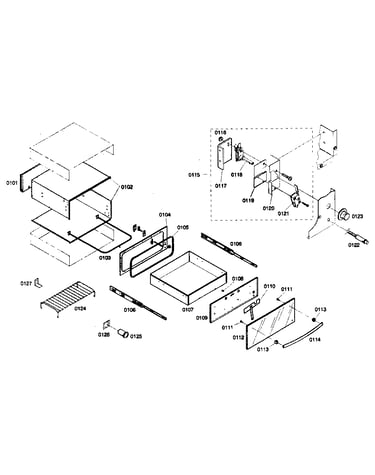

Warming drawer diagram

End cap

Part #184587

Replaced by #00615350

?
Manufacturer substitution
This part replaces 184587. Substitute parts can look different from the original.
$13.03
In Stock
Switch 189432
#121

Warming drawer diagram

Switch

Part #189432

$64.33
In Stock
Drawer 475089
#107

Warming drawer diagram

Drawer

Part #475089

The manufacturer no longer makes this part, and there's no substitute part

Ac Power Cord 189424
#NI

Warming drawer diagram

Ac power cord

Part #189424

The manufacturer no longer makes this part, and there's no substitute part

Insulation 367218
#NI

Warming drawer diagram

Insulation

Part #367218

The manufacturer no longer makes this part, and there's no substitute part

Bracket 189427
#117

Warming drawer diagram

Bracket

Part #189427

The manufacturer no longer makes this part, and there's no substitute part

Lens Pilot 189455
#125

Warming drawer diagram

Lens pilot

Part #189455

The manufacturer no longer makes this part, and there's no substitute part

M Mch 8/pk 184586
#111

Warming drawer diagram

M mch 8/pk

Part #184586

The manufacturer no longer makes this part, and there's no substitute part

Bracket 189429
#119

Warming drawer diagram

Bracket

Part #189429

The manufacturer no longer makes this part, and there's no substitute part

Sensor 189428
#118

Warming drawer diagram

Sensor

Part #189428

The manufacturer no longer makes this part, and there's no substitute part
