Hoover
Carpet Cleaner

Model # C3820 Official Hoover carpet cleaner

Here are the diagrams and repair parts for Official Hoover C3820 carpet cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |

Carpet Cleaner Solution Tank Gasket 38784062
#35

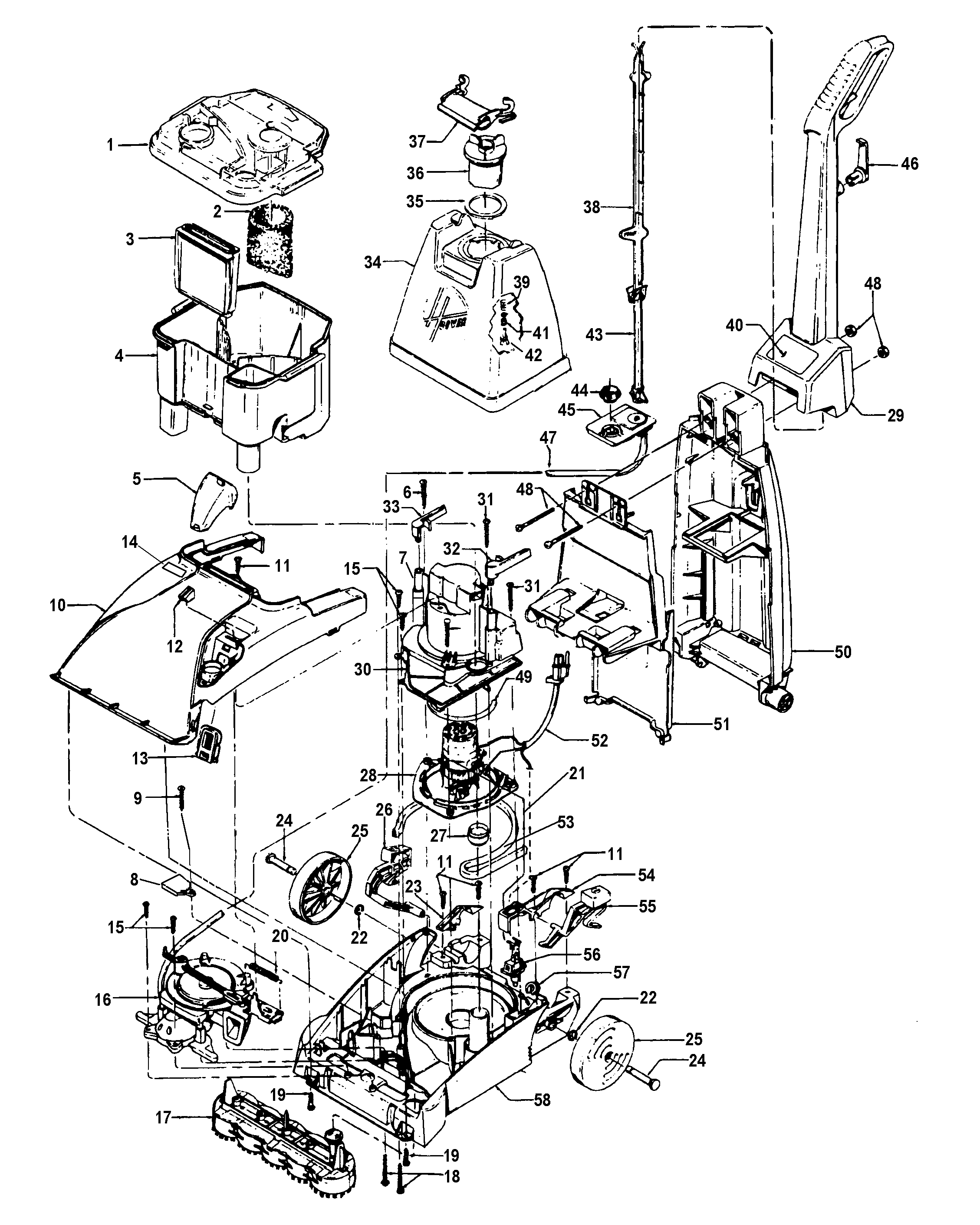

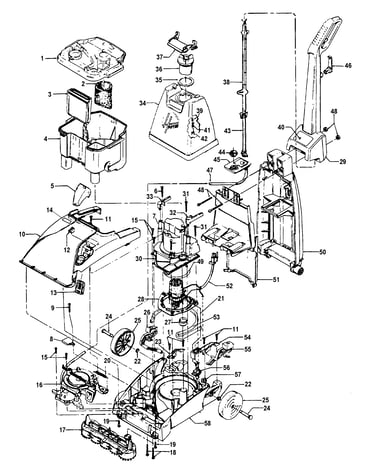

Motor assembly, mainassembly diagram

Carpet cleaner solution tank gasket

Part #38784062

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Motor Seal 34113004
#49

Motor assembly, mainassembly diagram

Carpet cleaner motor seal

Part #34113004

The manufacturer no longer makes this part, and there's no substitute part

Float 43538001
#59H

Motor assembly, mainassembly diagram

Float

Part #43538001

The manufacturer no longer makes this part, and there's no substitute part

Bolt Nut 40201145
#48

Motor assembly, mainassembly diagram

Bolt nut

Part #40201145

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw 21479438
#18

Motor assembly, mainassembly diagram

Carpet cleaner screw

Part #21479438

The manufacturer no longer makes this part, and there's no substitute part

Screen 43613009
#13

Motor assembly, mainassembly diagram

Screen

Part #43613009

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 49811039
#21

Motor assembly, mainassembly diagram

Lead wire

Part #49811039

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Solution Valve Control Rod, Lower 38458033
#43

Motor assembly, mainassembly diagram

Carpet cleaner solution valve control rod, lower

Part #38458033

The manufacturer no longer makes this part, and there's no substitute part

Motor Seal 38781048
#53

Motor assembly, mainassembly diagram

Motor seal

Part #38781048

The manufacturer no longer makes this part, and there's no substitute part

Service Kit 40309027
#30

Motor assembly, mainassembly diagram

Service kit

Part #40309027

The manufacturer no longer makes this part, and there's no substitute part
