Model # C2129 Official Hoover carpet cleaner

Here are the diagrams and repair parts for Official Hoover C2129 carpet cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Cable Wedg 27478611
#39

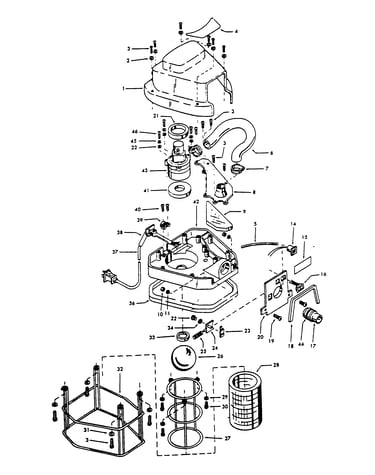

Motor assembly diagram

Cable wedg

Part #27478611

The manufacturer no longer makes this part, and there's no substitute part

Cord Protctr 36216008
#38

Motor assembly diagram

Cord protctr

Part #36216008

The manufacturer no longer makes this part, and there's no substitute part

Canister Vacuum Screw 21447014
#30

Motor assembly diagram

Canister vacuum screw

Part #21447014

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447203
#22

Motor assembly diagram

Vacuum screw

Part #21447203

The manufacturer no longer makes this part, and there's no substitute part

Latch - C9031 41112011
#3

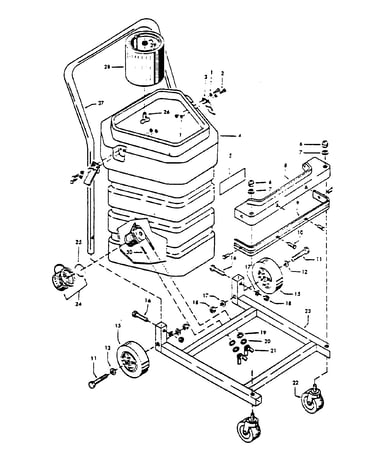

Mainbody diagram

Latch - c9031

Part #41112011

The manufacturer no longer makes this part, and there's no substitute part

Wing Screw - C9029 36111002
#26

Mainbody diagram

Wing screw - c9029

Part #36111002

The manufacturer no longer makes this part, and there's no substitute part

Rivet-tubular 32242004
#10

Mainbody diagram

Rivet-tubular

Part #32242004

The manufacturer no longer makes this part, and there's no substitute part

Wet Filter - C2077 38763002
#28

Motor assembly diagram

Wet filter - c2077

Part #38763002

The manufacturer no longer makes this part, and there's no substitute part

Tank-la-16 Gal. - C9 42272060
#4A

Mainbody diagram

Tank-la-16 gal. - c9

Part #42272060

The manufacturer no longer makes this part, and there's no substitute part

Float Ball - C2077 33761001
#26

Motor assembly diagram

Float ball - c2077

Part #33761001

The manufacturer no longer makes this part, and there's no substitute part
