Model # KCDC250X1 Official KitchenAid garbage disposal

Here are the diagrams and repair parts for Official KitchenAid KCDC250X1 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Garbage Disposal Drain Tube (replaces 4211370, 4323154, Y752553) 4211317
#12

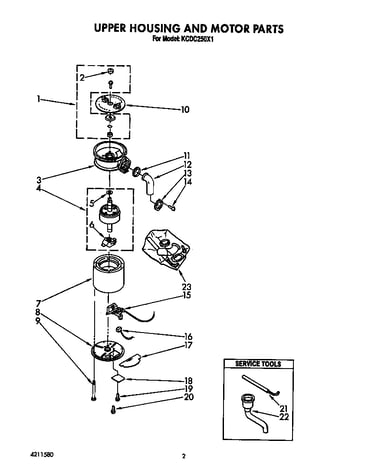

Upper housing and motor diagram

Garbage disposal drain tube (replaces 4211370, 4323154, y752553)

Part #4211317

$29.89
In Stock
Frame 4211515
#8

Upper housing and motor diagram

Frame

Part #4211515

$126.44
In Stock
Garbage Disposal Mounting Flange 4211304
#6

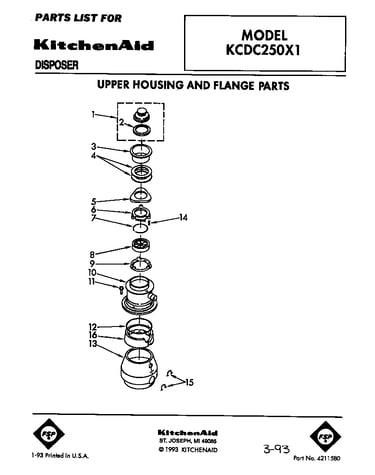

Upper housing and flange diagram

Garbage disposal mounting flange

Part #4211304

$55.09
In Stock
Flange 4211303
#5

Upper housing and flange diagram

Flange

Part #4211303

$50.87
In Stock
Adapter 4211396
#22

Upper housing and motor diagram

Adapter

Part #4211396

$240.89
In Stock
Actuator 4211322
#6

Upper housing and motor diagram

Actuator

Part #4211322

$37.96
In Stock
Washer 4211321
#5

Upper housing and motor diagram

Washer

Part #4211321

$8.19
In Stock
Sleeve 4211578
#1

Upper housing and motor diagram

Sleeve

Part #4211578

$43.24
In Stock
Ring 4211306
#7

Upper housing and flange diagram

Ring

Part #4211306

This item is not returnable
$7.49
In Stock
Garbage Disposal Drain Stopper 4211577
#1

Upper housing and flange diagram

Garbage disposal drain stopper

Part #4211577

$25.99 |
16% OFF Phone Price : $30.99
In Stock
