KitchenAid
Blender

Model # KSB5WH4 Official KitchenAid blender

Here are the diagrams and repair parts for Official KitchenAid KSB5WH4 blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
Seal 9704204
#4

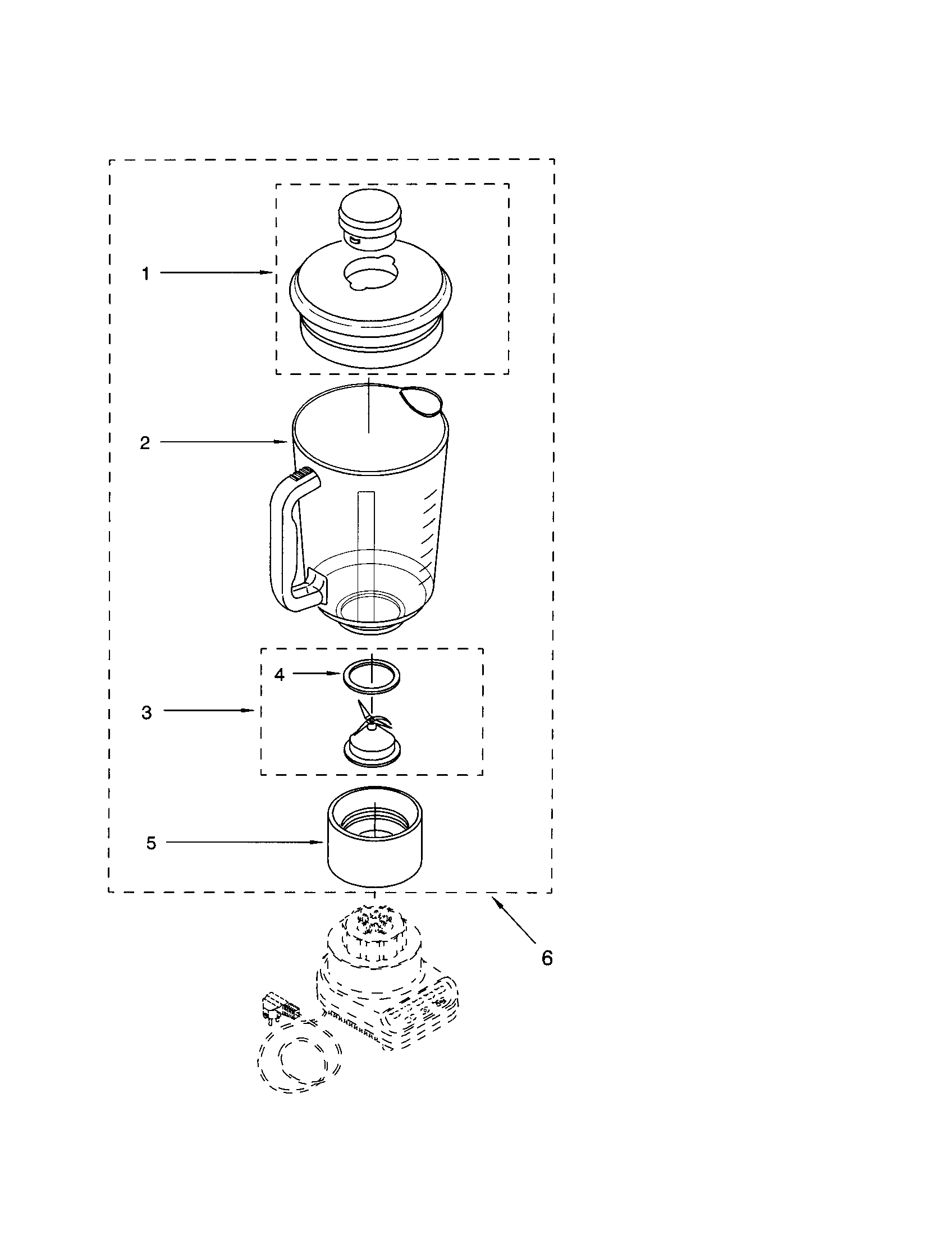

Attachment parts diagram

Seal

Part #9704204

Replaced by #WP9704204

?
Manufacturer substitution
This part replaces 9704204. Substitute parts can look different from the original.
$11.19 |
15% OFF Phone Price : $13.19
In Stock
Foot 115792
#17

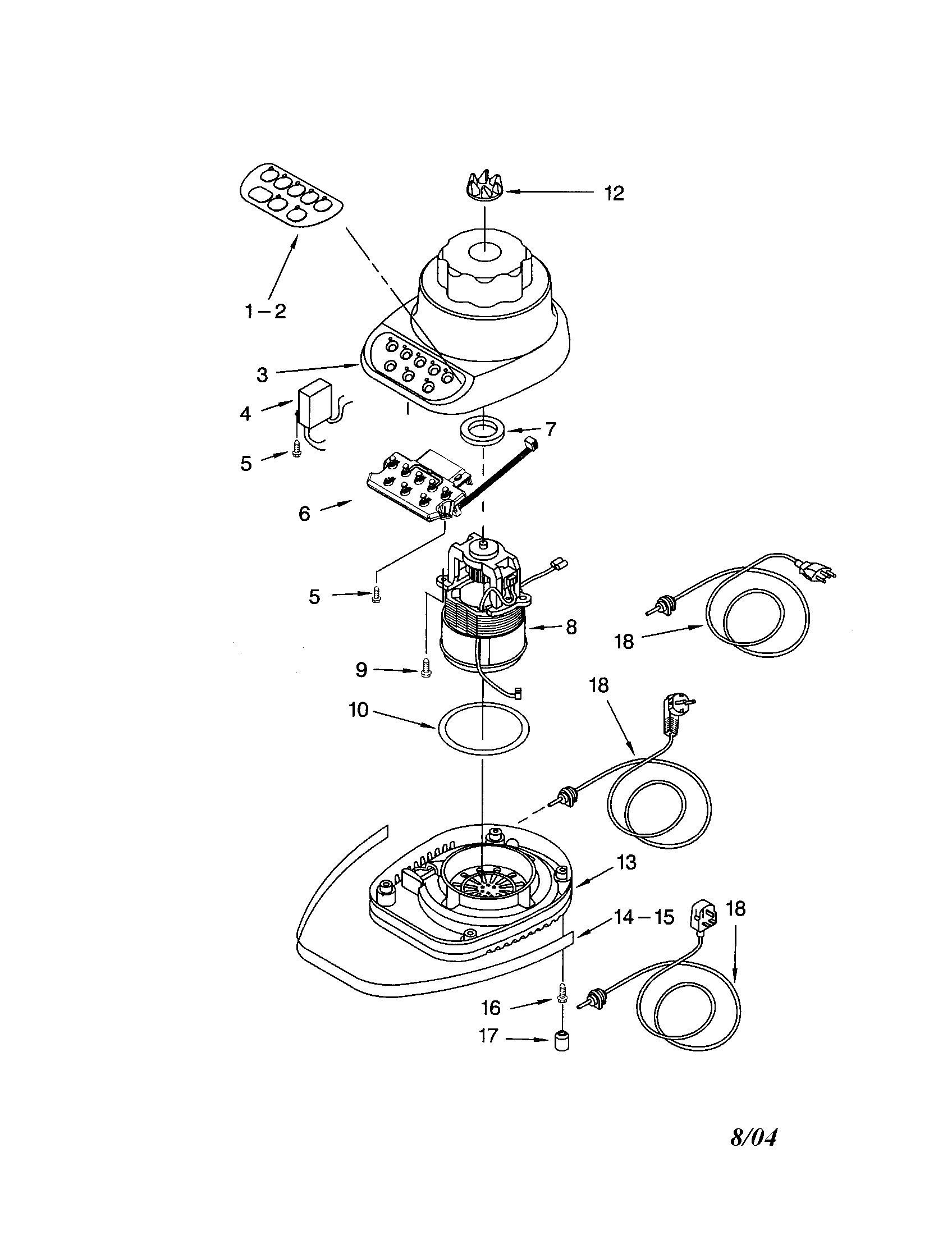

Unit parts diagram

Foot

Part #115792

Replaced by #WP9709707

?
Manufacturer substitution
This part replaces 115792. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Power Cord 9706646
#18

Unit parts diagram

Power cord

Part #9706646

$31.99
In Stock
Motor 9706759
#8

Unit parts diagram

Motor

Part #9706759

Replaced by #WP9706759

?
Manufacturer substitution
This part replaces 9706759. Substitute parts can look different from the original.
$79.91 |
6% OFF Phone Price : $84.91
In Stock
Collar 9704253
#5A

Attachment parts diagram

Collar

Part #9704253

Replaced by #WP9704253

?
Manufacturer substitution
This part replaces 9704253. Substitute parts can look different from the original.
$81.69 |
6% OFF Phone Price : $86.69
In Stock
Blender Dome And Blade Assembly 9704291
#3

Attachment parts diagram

Blender dome and blade assembly

Part #9704291

Replaced by #WP9704291

?
Manufacturer substitution
This part replaces 9704291. Substitute parts can look different from the original.
$84.59 |
10% OFF Was : $93.99
In Stock
Blender Drive Coupling 9704230
#12

Unit parts diagram

Blender drive coupling

Part #9704230

Replaced by #WP9704230

?
Manufacturer substitution
This part replaces 9704230. Substitute parts can look different from the original.
$10.79 |
16% OFF Phone Price : $12.79
In Stock
Base 9707547
#13H

Unit parts diagram

Base

Part #9707547

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 9707863
#18B

Unit parts diagram

Power cord

Part #9707863

The manufacturer no longer makes this part, and there's no substitute part

Trim Band 3184612
#15

Unit parts diagram

Trim band

Part #3184612

The manufacturer no longer makes this part, and there's no substitute part
